Deck Structure

Simply speaking, deck structure is to separate the original double decker tent into first and second floors, and they can be used flexibly.

  1. General Details

    Deck Structure

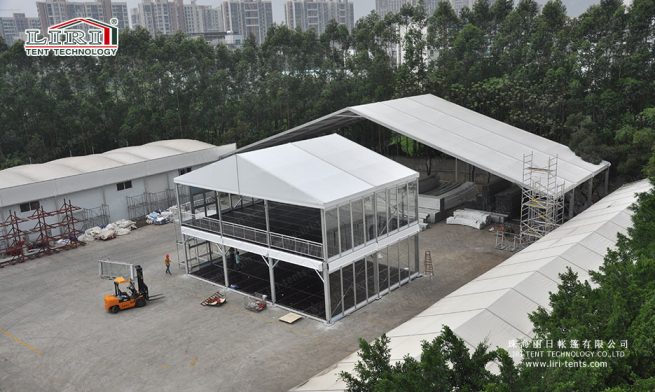

    What is deck structure? Simply speaking, deck structure is to separate the original double decker tent into first and second floors, and they can be used flexibly. If you have bought a single decker tent, the deck structure is the fastest solution to upgrade your tent to become a double decker tent, which helps you solve the problem of insufficient budget, greatly reducing expenditure, while obtaining two kinds of tent systems.
    Deck Structure is Liri Tent’s another upgrade product based on the common A shape double decker tent. Its beauty is another style of beauty, more attractive on the line.

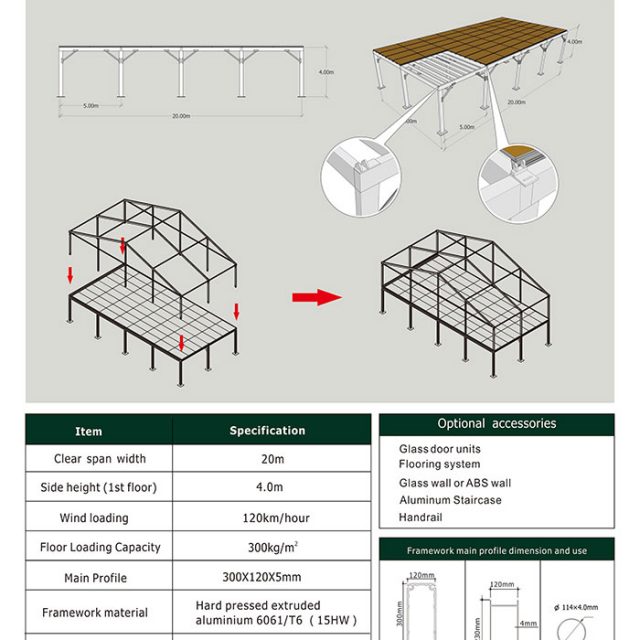

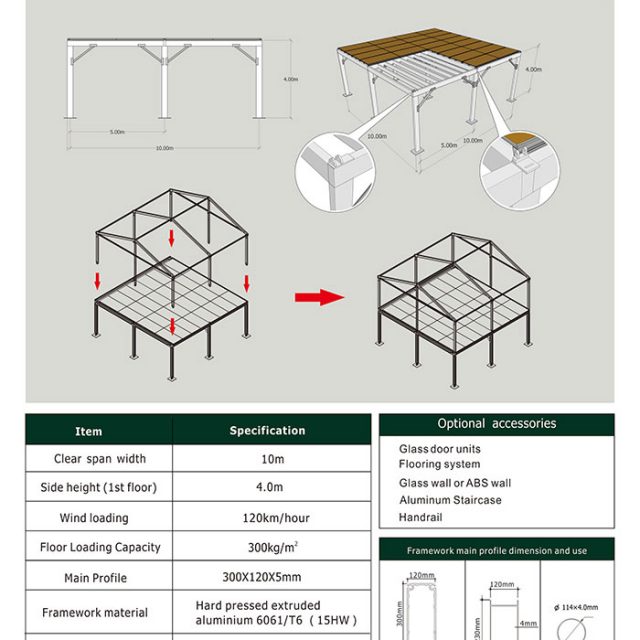

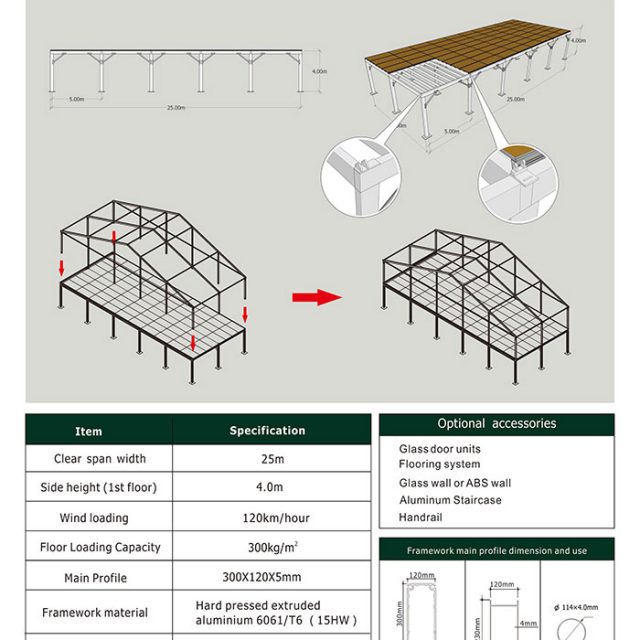

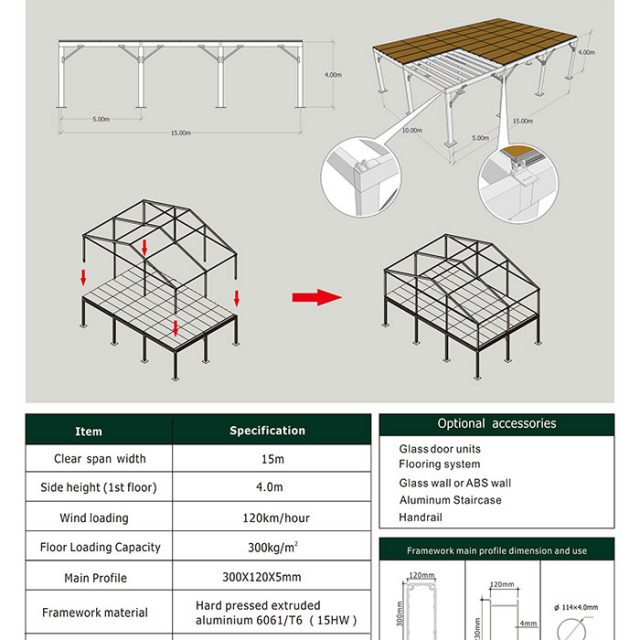

    Deck Structure is available in clear span of 10m, 15m, 20m, 25m, the length of the tent can be infinitely extended by multiples of 5m, meaning the bay distance is 5m. The side height of the tent can be 9.58m, 10.4m, 11.2m, 12m etc.
    The four sides of the deck structure can be mixed assembled by transparent glass walls and white ABS walls. It will be more beautiful after installing the VIP flooring, wave-shaped roof lining and other facilities. The deck structure is suitable for a variety of high-end brand campaigns, sports events VIP reception room, lounge dining area, wedding parties and other events.

    Deck Structure can also provide advertising banner for the sport, print sponsors’ logos. It has become one of the most favored and popular temporary buildings for the merchants around the world in recent years.

    This product has obtained national patent, patent number: ZL201120397654.4, ZL201520433483.4, ZL201520503051.6, ZL201520411133.8

    Double Decker Tent Stairs Type

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile
    10m6.75m8.50m5m300x120x5mm (4 - channel)
    15m6.75m9.34m5m300x120x5mm (4 - channel)
    20m6.75m10.17m5m300x120x5mm (4 - channel)
    25m6.75m11m5m300x120x5mm (4 - channel)

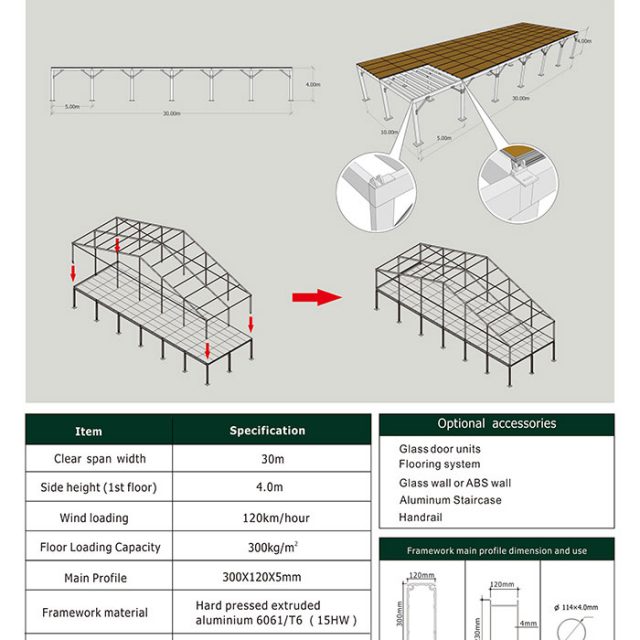

    30m6.75m11.75m5m300x120x5mm (4 - channel)
    40m6.75m13.5m5m300x120x5mm (4 - channel)
