Hexagon Tent

Category:
  1. General Details

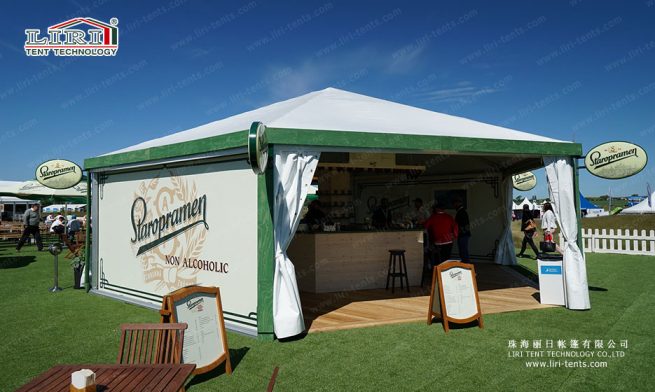

    The Hexagon Tent features two kinds of roof shapes, diamond and high peak, and features structures with eave heights of 2.6m and 3m. There are NPT-HEX profiles PT-HEX-HP (82x48x3mm), NPT-HEX-HP (100x48x3mm), WT-HEX-HP (122x68x3mm) and GT-HEX-HP (166x88x3mm). The hexagon tent frame uses hard pressed extruded aluminum alloy 6061/T6. The roof cover uses PVC coated polyester textile which is 850 g/sm in a blackout or translucent materials.

    Installation and dismantles is easy in the process and short in time. It can be worked either as a temporary structure or a permanent building.

    The hexagon tent can include: PVC plastic side windows, glass windows, glass doors, ground anchors, weight plates, wooden floors, lining curtain, etc.

  2. Product Specification
    Span WhidthEave HeightRidge HeightSide LengthMain Profile

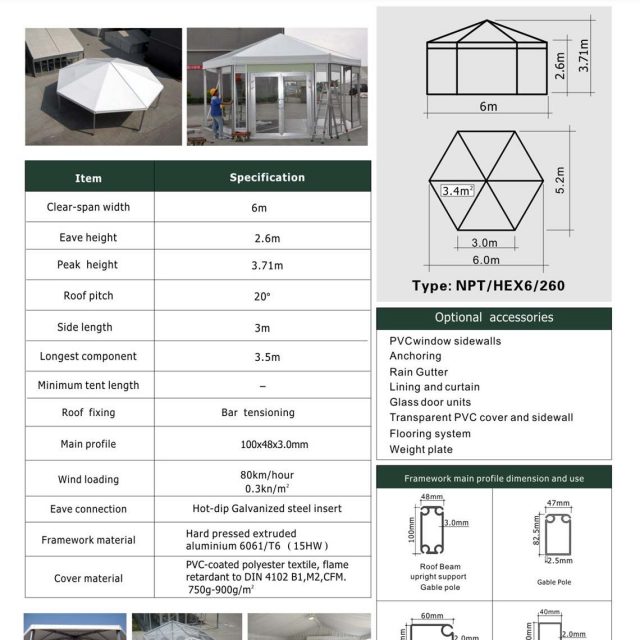

    6m2.6m3.71m3m100x48x3mm (4 - channel)
    8m2.6m4.18m4m100x48x3mm (4 - channel)

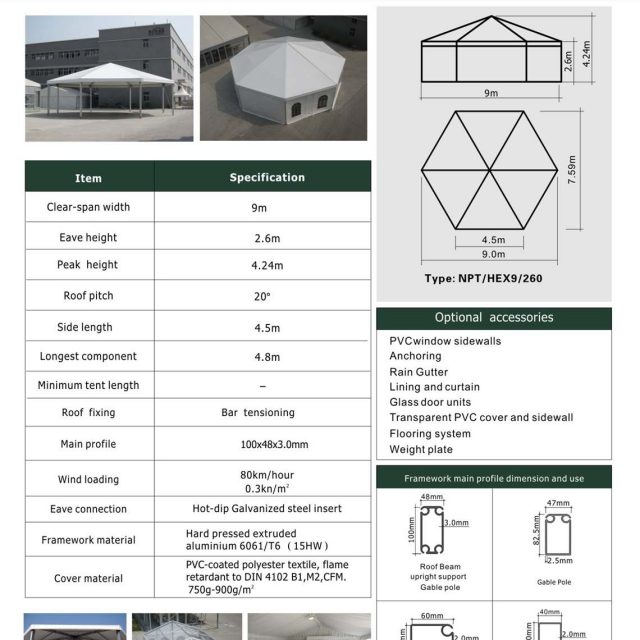

    9m2.6m4.24m4.5m100x48x3mm (4 - channel)

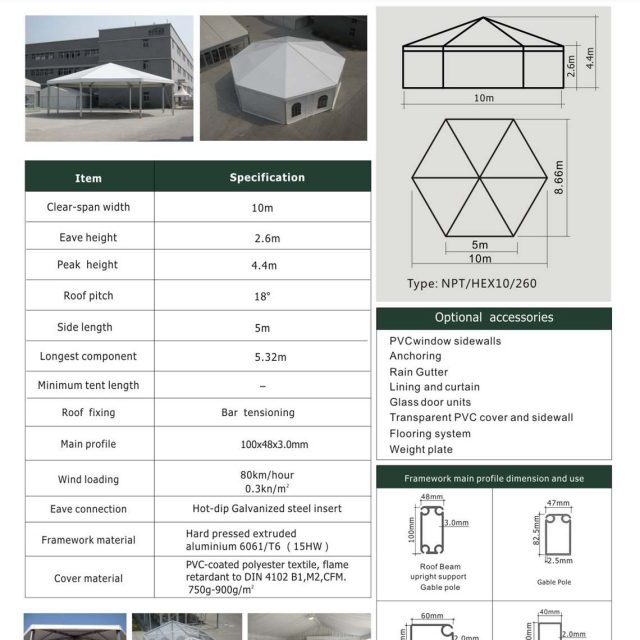

    10m2.6m4.4m5m122x68x3mm (4 - channel)

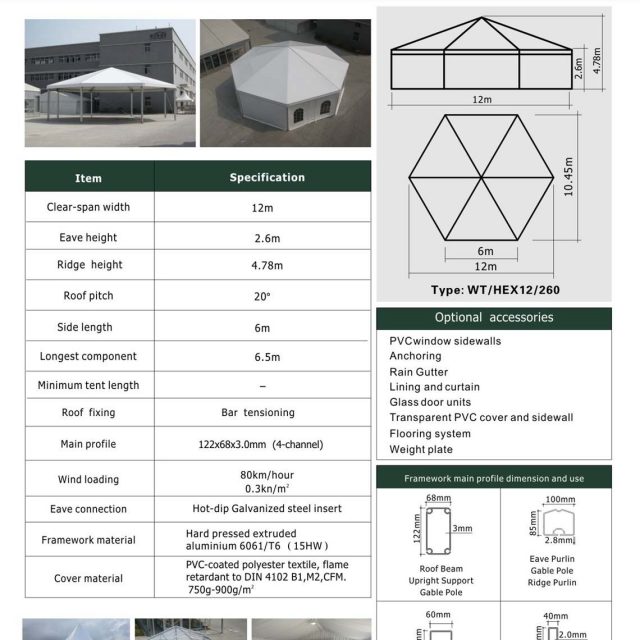

    12m2.6m4.78m6m122x68x3mm (4 - channel)
  3. Technical Data
