Cube Double Decker

  1. General Details

    Cube Double Decker Tent

    The clear span we have for the Thermo Roof Cube Double Decker structure series is 10m 15m 20m 25m 30m 40m, and the main profile size is 300x120x5mm. Below are the characteristics of our thermo roof cube double decker structure:

    The roof of the cube double decker tent is made of thermally insulated PVC fabric, with heat insulation and preservation and thermostatic effect.

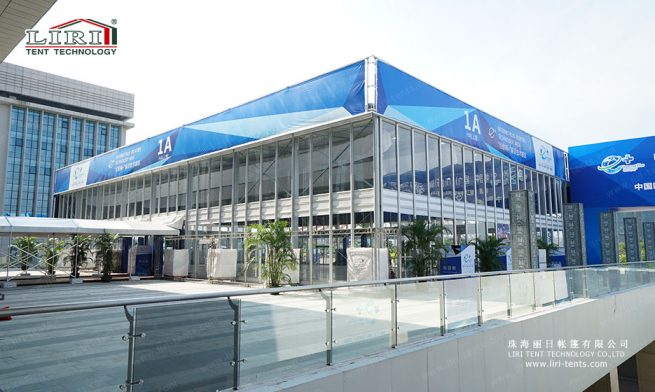

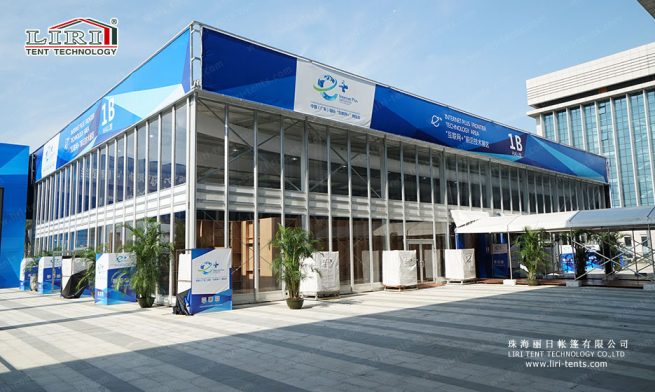

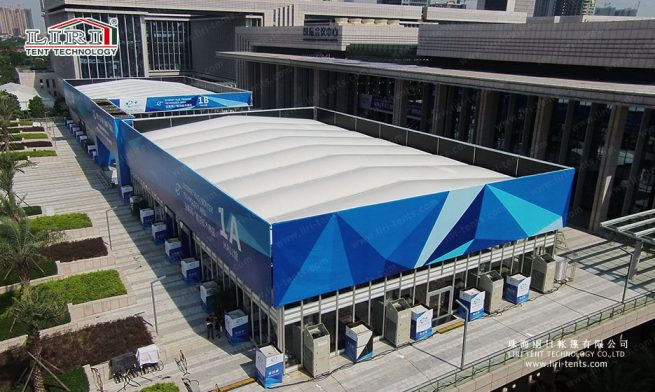

    The roof looks flat which the roof pitch is 7 degree, this makes the cube double decker tent looks like a permanent concrete building. On the other hand, there is parapet on the eave of the tent, after improvement and innovation; we increased the space for the banner advertising, which provided our customer with the platform to print Ads on the cube double decker tents.

    Just as our standard double decker tents, the thermal roof cube double decker structure can help you expand the “active area” when your actual area is limited, which means you can utilize double space and area from one projected area. In addition, the thermal roof cube double decker structure can be equipped with outdoor balcony, people can get a very broad horizon from it, which is a very good choice for sports games (such as football games, golf, equestrian, and car racing ect.)use as VIP spectator stands.

    The complete options of cube double decker tent also include the lighting, water drain, thunder resistance, and some other systems.

    There are many accessories for the cube double decker structure. These accessories are aluminum stairs inside or outside the tents, sidewalls with clear PVC church windows, ground anchor, lining and curtain, glass wall system, ABS hard wall system, sandwich wall system, steel sheet wall system, glass doors, sliding doors, electromotor rolling door system, transparent roof cover and sidewalls and flooring system.

    This product has obtained national patent, patent number: ZL201520433483.4, ZL201120397706.8,ZL201520503051.6, ZL201520503410.8, ZL201520411133.8

    Double Decker Tent Stairs Type

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile
    10m8m8.54m5m300x120x5mm (4 - channel)

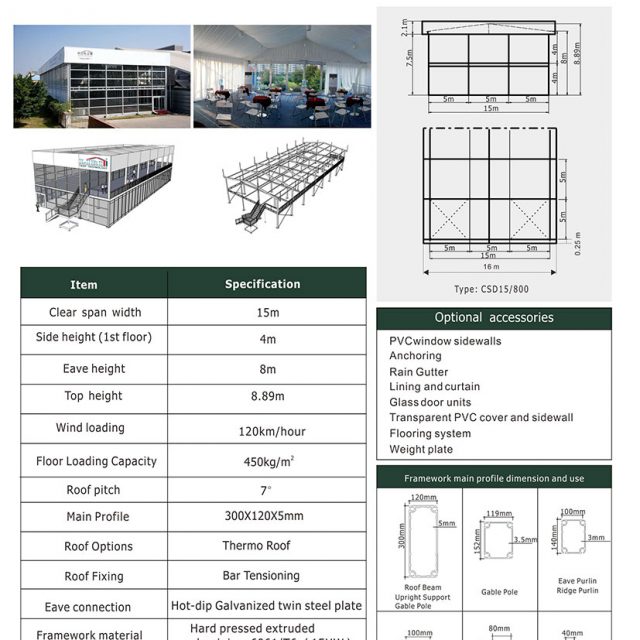

    15m8m8.89m5m300x120x5mm (4 - channel)

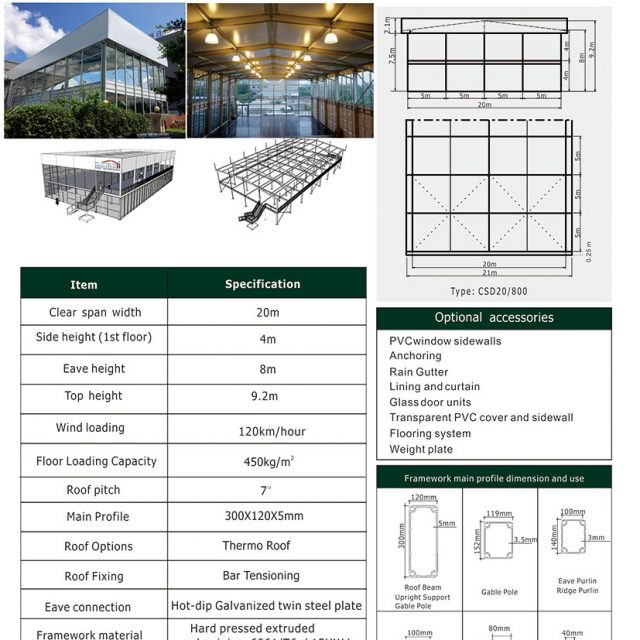

    20m8m9.2m5m300x120x5mm (4 - channel)

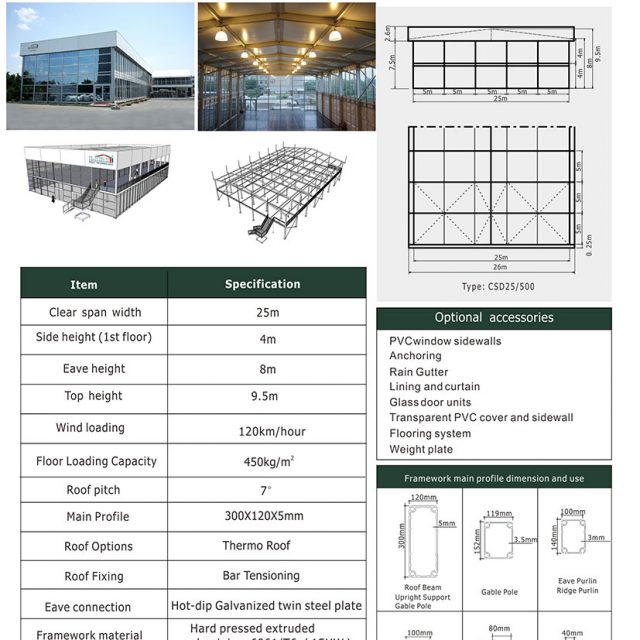

    25m8m9.5m5m300x120x5mm (4 - channel)

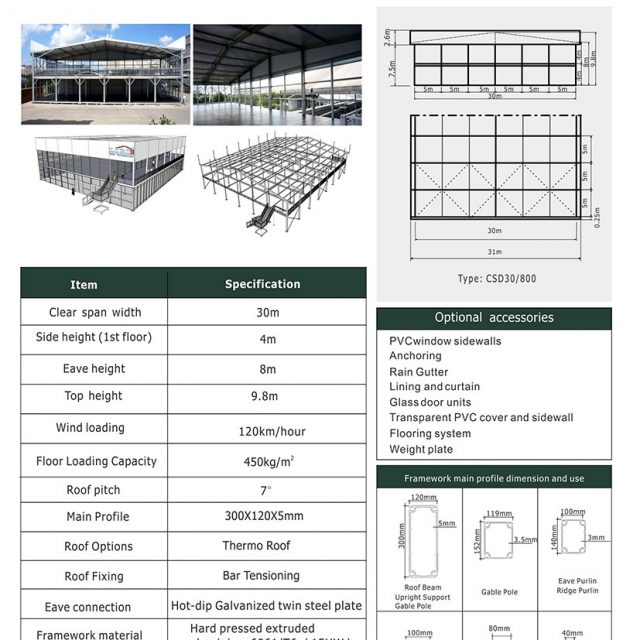

    30m8m9.8m5m300x120x5mm (4 - channel)
    40m8m10m5m300x120x5mm (4 - channel)

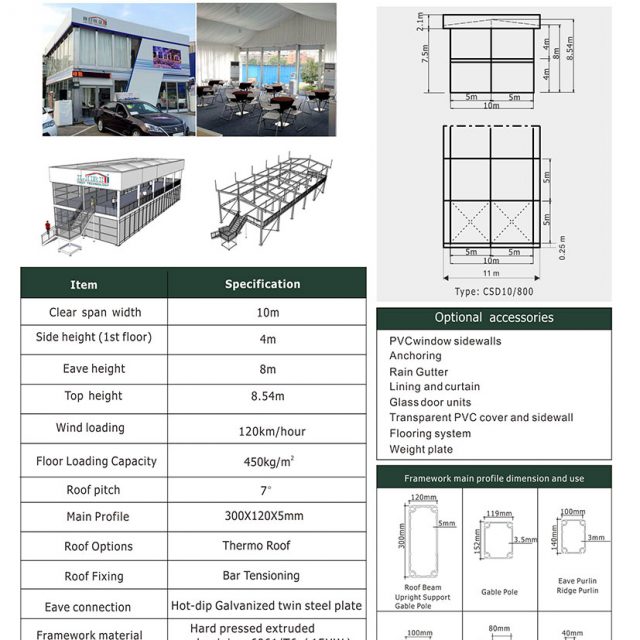

  3. 3D Drawing

    Cube Double Decker

  4. Technical Data
  5. Related Products
