High Peak Mixed Tent
- General Details

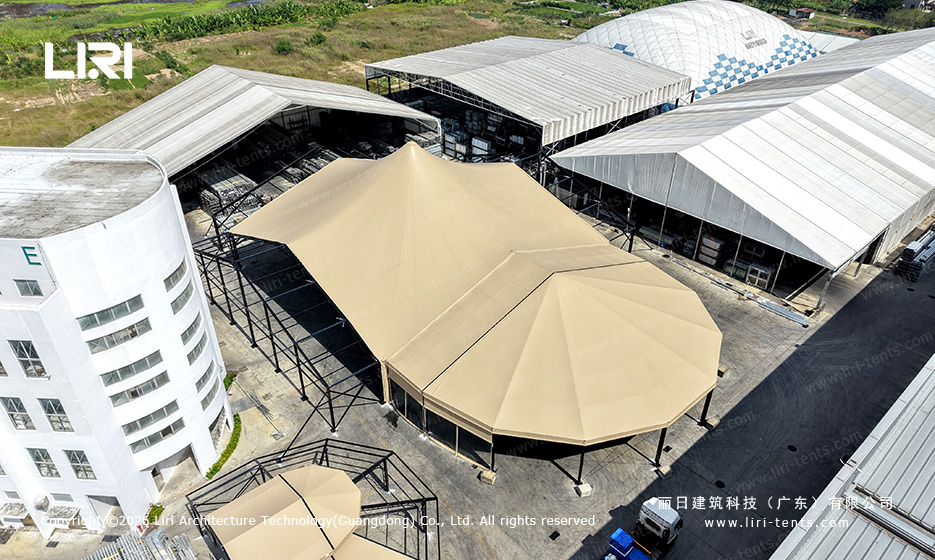

The High Peak Mixed Tent design is based on the frame tent. High Peak Tent is combined with a high peak and half polygon ends, and it is mostly used for high- class events.
For more information please contact us!
- Product Specification
Span Whidth Eave Height Ridge Height Peak Height Bay Distance Main Profile 6m 2.6m 3.72m 5.18m 3m 82.3x47x2.5mm (4 - channel) 8m 2.6m 4.18m 5.58m 3m 82.3x47x2.5mm (4 - channel) 9m 2.6m 4.28m 5.8m 3m 82.3x47x2.5mm (4 - channel) 10m 3.88m 5.5m 8.5m 5m 204x120x4mm (4 - channel) 12m 3.88m 5.8m 8.8m 5m 204x120x4mm (4 - channel) 15m 3.88m 7.1m 10.5m 5m 204x120x4mm (4 - channel) 20m 3.88m 7.88m 11.43m 5m 204x120x4mm (4 - channel) 25m 3.88m 7.9m 11.5m 5m 204x120x4mm (4 - channel) 30m 5m 9.88m 13.68m 5m 300x120x5mm (4 - channel) 40m 5m 11.48m 15.2m 5m 300x120x5mm (4 - channel) - 3D Drawing
- Technical Data

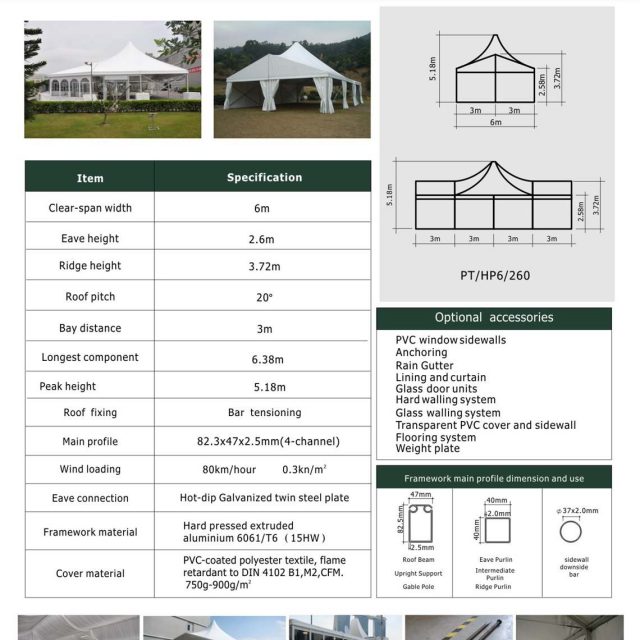

6m Span High Peak Mixed Tent
8m Span High Peak Mixed Tent

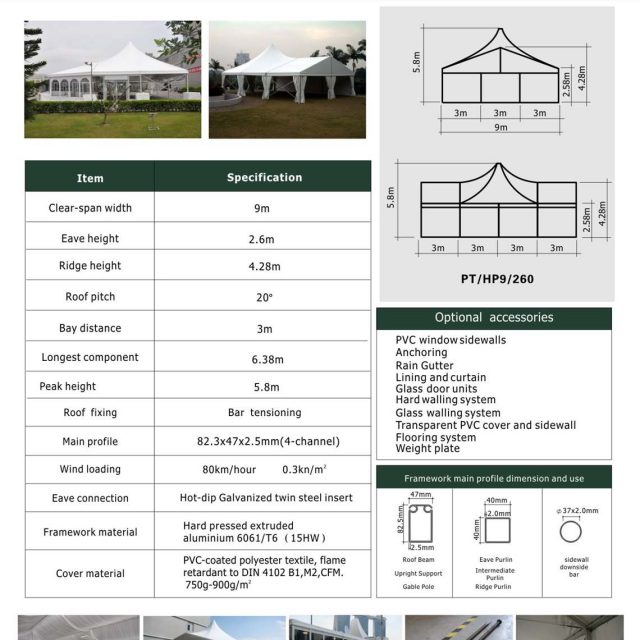

9m Span High Peak Mixed Tent

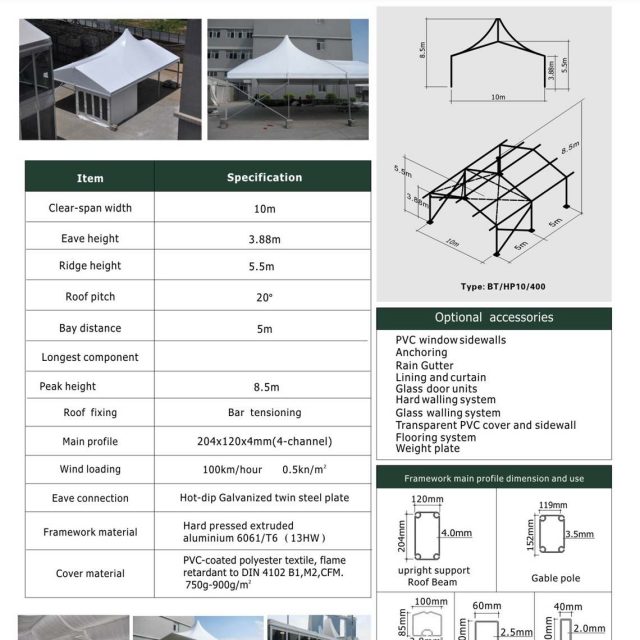

10m Span High Peak Mixed Tent
12m Span High Peak Mixed Tent

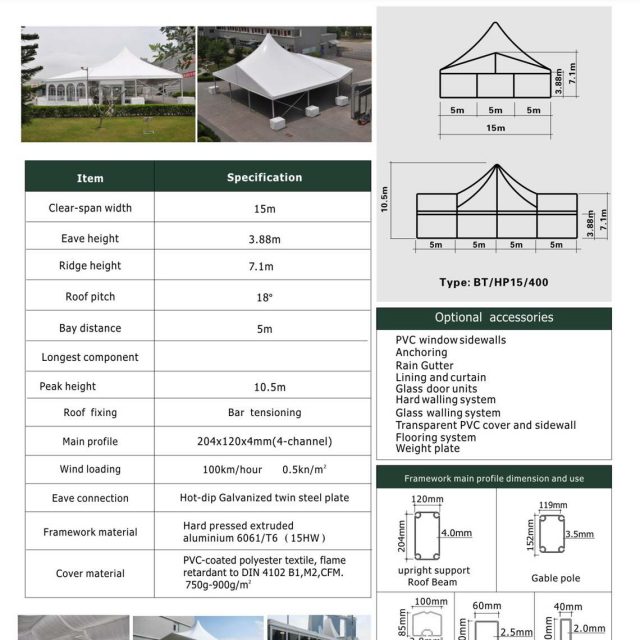

15m Span High Peak Mixed Tent
20m Span High Peak Mixed Tent

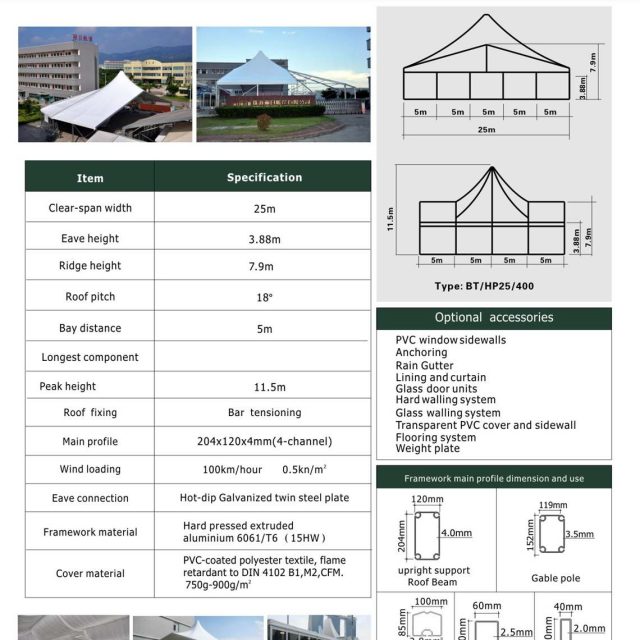

25m Span High Peak Mixed Tent
30m Span High Peak Mixed Tent

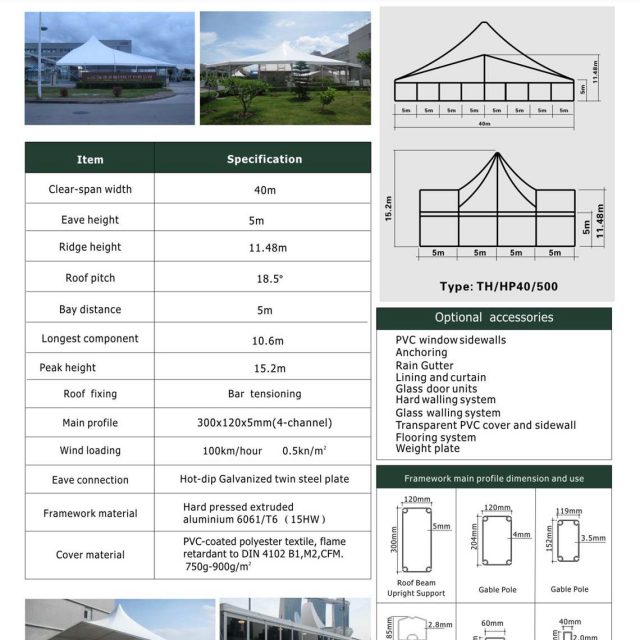

40m Span High Peak Mixed Tent
