- General Details
In LIRITENT, you can either buy or rent a two story tent, customized service is also available. Two story tent structure is designed by liri in 2012 as the newest tent series, which had lead the tent market in China into a new era. The designing is first generated from Germany, and it has earned lots of fans from home and abroad for its unique out looking and the devotion to high quality ever since it is born.
Two story tent is durable in design and has better ability in wind resist and snow loading capacity. The wind speed resistance is up to 100km/h(Wind load is 0.5 km/m2). The material of the aluminum frame adopt reinforced aluminum alloy 6061/T6 extruded profile, surface anodized finish, and Roof Covers and side walls are 850g/m2 PVC-coated polyester textile flame retardant to DIN4102 B1, M2. Besides, the flooring structural supports adopt our high quality wooden beams and the second floor system adopt 28mm thick waterproof splint. Two story tent is also made from a modular system like traditional clear span structure. The length can be extended by 5m bay section without a limit and it is the same as the normal structures. Time needed for installation is very short and it can be installed and dismantled repeatedly. And easy to shipping is another advantage of the double decker structure.

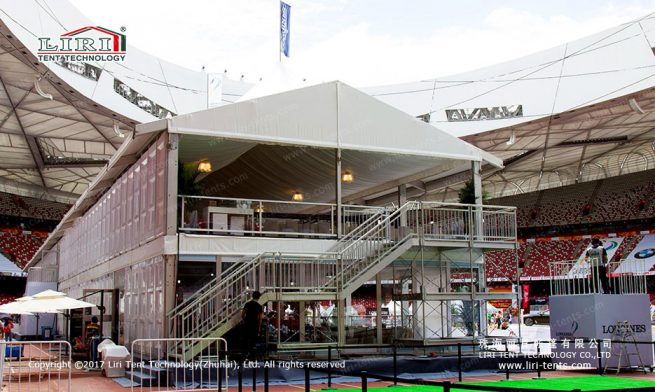

Special design of our Double Decker Tent makes 200% of the space and saved extra wastage. These accessories are aluminum stairs inside or outside the tents and second floor balcony, and we can find a tippet on the eave of the tent, after improvement and innovation; we increased the space for the banner advertising, which provided our customer with the platform to print Ads on the tents.

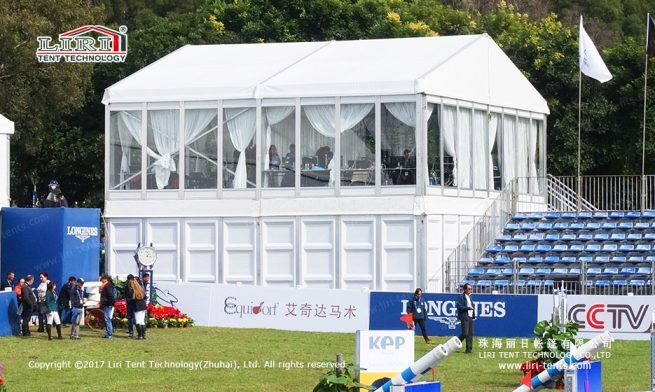

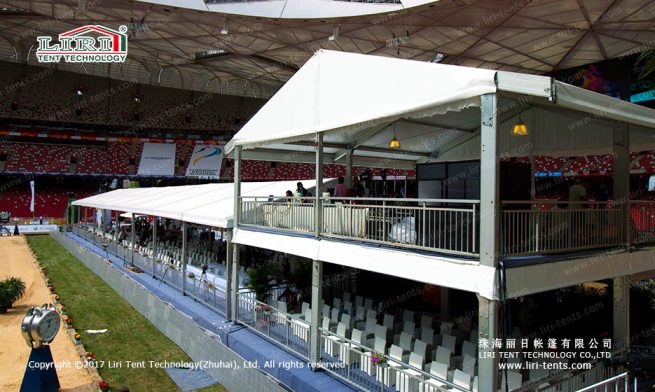

Two story tent structure is specialized in offering the VIP spectator stands in the world top mega event and all sorts of international sports games like football games, golf, equestrian, and car racing ect. It can not only solve the limited land problem but also can offer the visitors the best experience with a wider horizon.
This product has obtained national patent, patent number: ZL201520433483.4, ZL201120397706.8, ZL201520503051.6, ZL201520411133.8
Double Decker Tent Stairs Type
- Product Specification

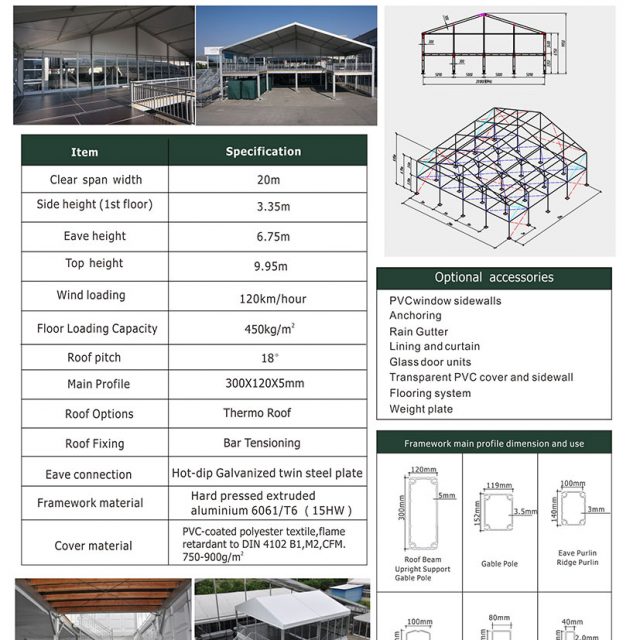

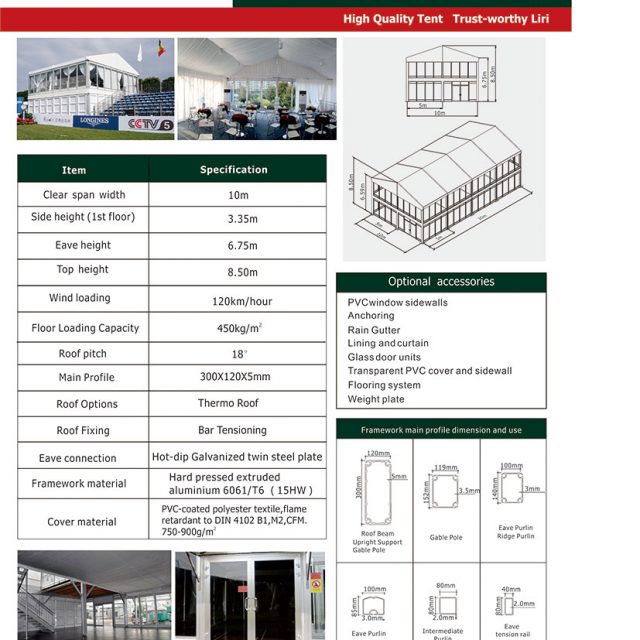

Span Whidth Eave Height Ridge Height Bay Distance Main Profile 10m 6.75m 8.50m 5m 300x120x5mm (4 - channel) 15m 6.75m 9.34m 5m 300x120x5mm (4 - channel) 20m
6.75m 10.17m 5m 300x120x5mm (4 - channel) 25m 6.75m 11m 5m 300x120x5mm (4 - channel) 30m 6.75m 11.75m 5m 300x120x5mm (4 - channel) 40m 6.75m 13.5m 5m 300x120x5mm (4 - channel)
- 3D Drawing
- Technical Data
