Half Dome Tent

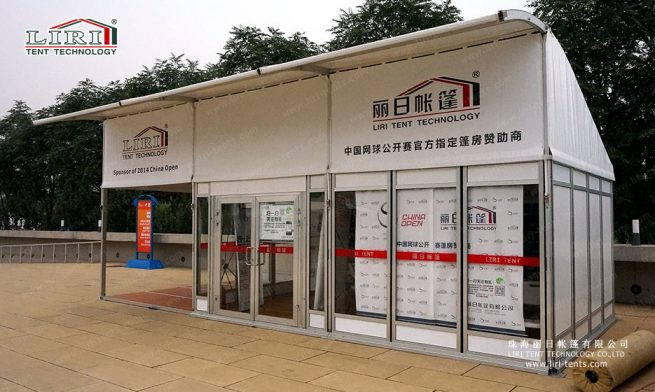

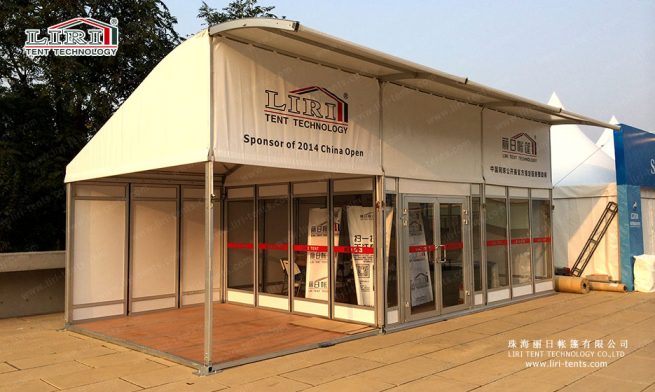

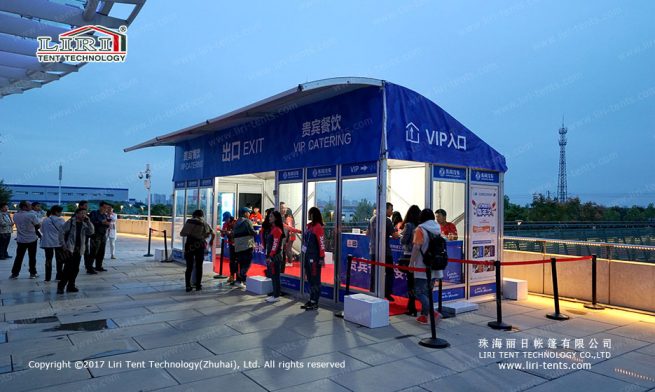

Half Dome Tent is a unique design that with a special shape, whose infill panel above the door is quite suitable for advertising.

Category:
  1. General Details

    This product has obtained a national patent, patent number: ZL201520433470.7

    Half Dome Tent includes HDT4x3m and HDT4x5m.

    The clear span of HDT4x3m is 4m, 2.6m eave height and ridge height is 3.84m, 3m bay and main profile are 100x48x3mm.

    The clear span of HDT4x5m is 4m, 2.6m and 3.84m are eave height and ridge height respectively. 5m bay and main profile is100x48x3mm.

    High reinforced aluminum alloy 6061/T6( hardness 13HW) is used for the frame, fire retardant double-side PVC synthetic fabric(650-850g/m2) which is in accordance with Germany DIN4102 B1, M2 fire retardant standard. 80KM/H (0.3KN/m2) wind resistance can make sure the stability and safety of the structure. Its linear length can be increased and decreased by 5m bay.

    Half Dome Tent is a unique design that with a special shape, whose infill panel above the door is quite suitable for advertising. It’s easy to be installed and dismantled, and also portable and durable. Wind loading and fire retardancy capacity are at the same level of European standard.

    This product has obtained a national patent, patent number: ZL201120397654.4, ZL201520433470.7
    For more information please contact us.

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile
    3m2.6m3.48m3m100x48x3mm (4 - channel)
    4m2.6m3.84m3m100x48x3mm (4 - channel)

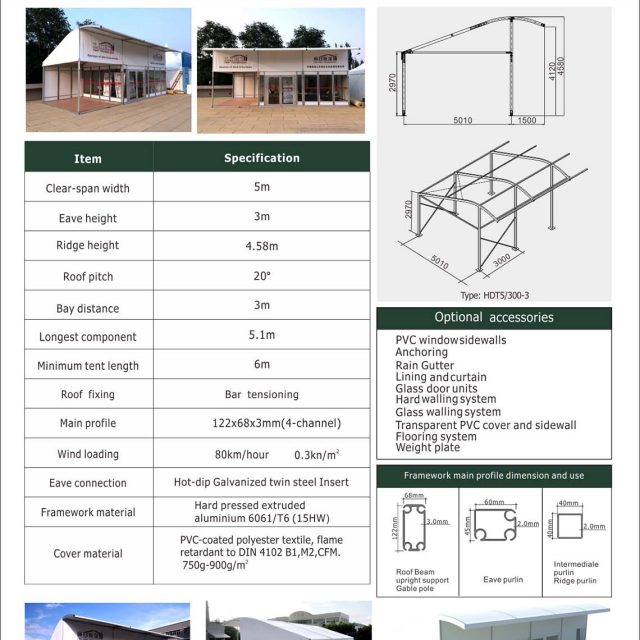

    5m3m4.58m3m122x68x3mm (4 - channel)

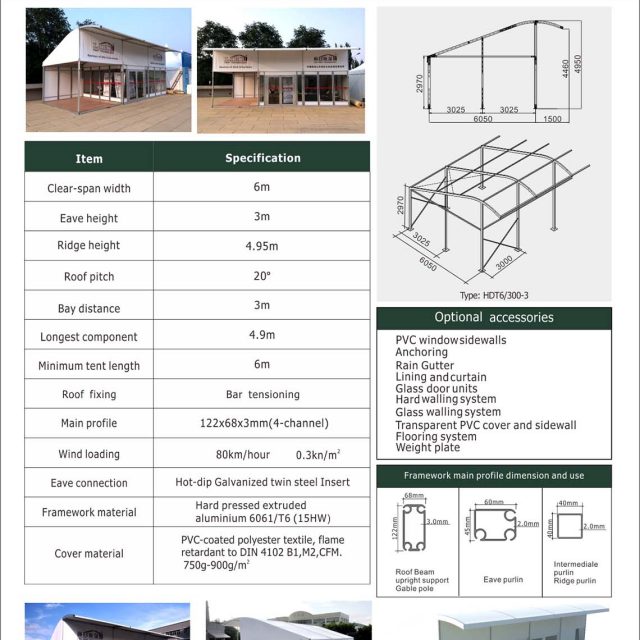

    6m3m4.95m3m122x68x3mm (4 - channel)

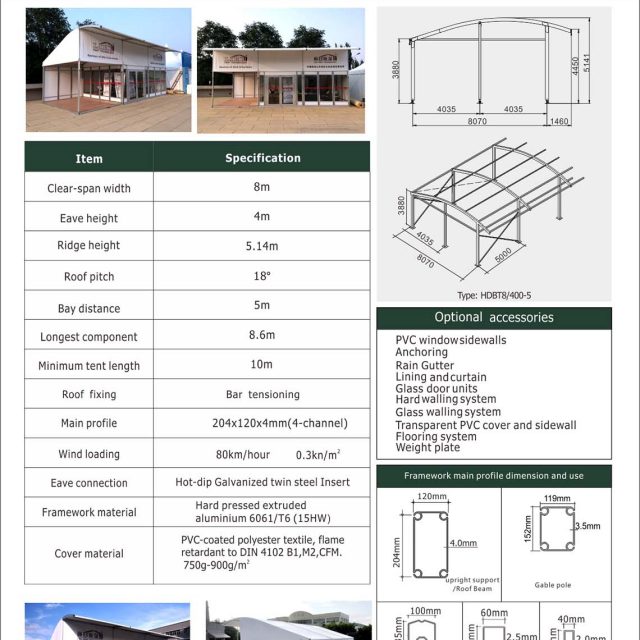

    8m4m5.14m5m204x120x4mm (4 - channel)

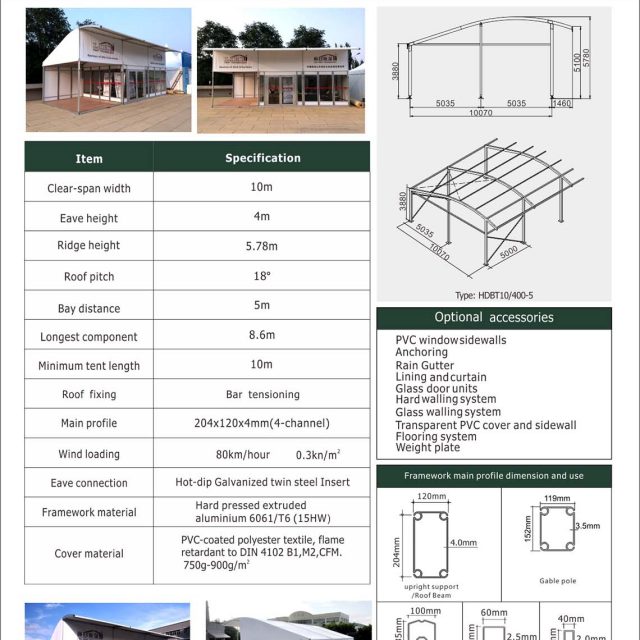

    10m4m5.78m5m204x120x4mm (4 - channel)

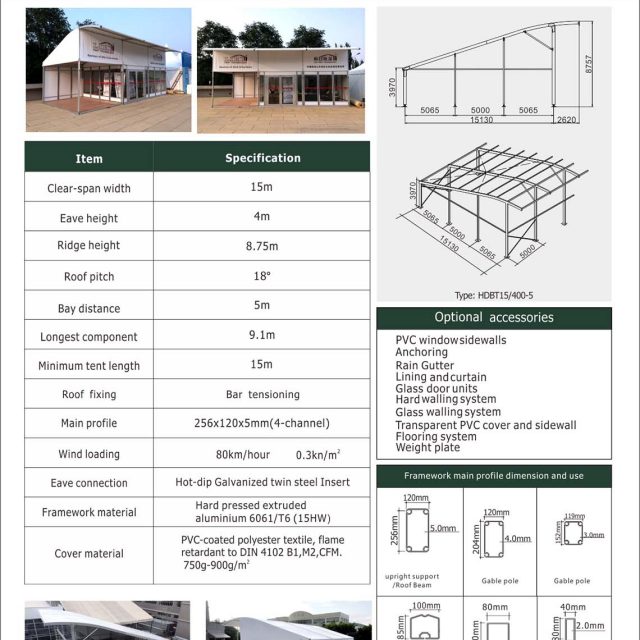

    15m4m8.75m5m256x120x5mm (4 - channel)

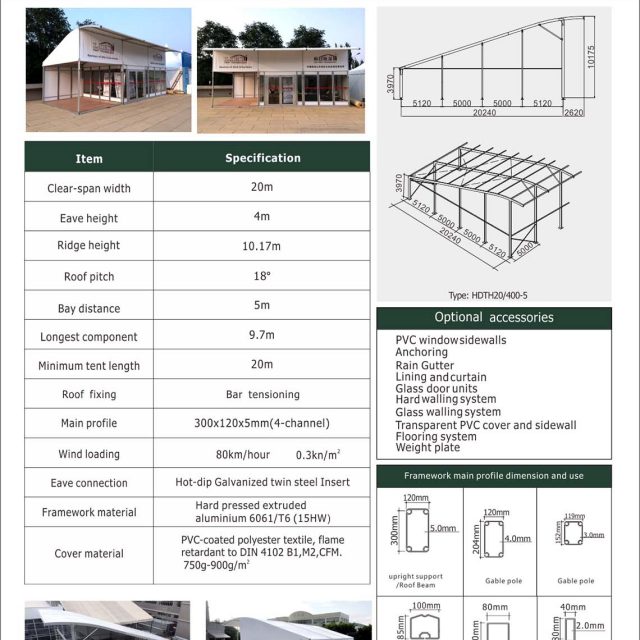

    20m4m10.17m5m300x120x5mm (4 - channel)
  3. 3D Drawing

    Half Dome Tent
