Dome Tent

Dome Tent can support clients’ businesses very well with its advantages, such as expansion with its modular structure,easily assembled and dismantled,

Category:
  1. General Details

    Dome Tent includes three series: DNPT(clear span width from 6-12m, main profile size is 100x48x3mm ), DET(clear span width from 10-18m, main profile size is 152x119x4mm), DBT(clear span width from 10-25m, main profile size is 204x120X4mm). Dome Tent is modular structure, it can be increased or decreased in 5m. The main framework is made of hard pressed extruded aluminum alloy (6061/T6). Flame-retardant double PVC-coated polyester textile is chosen for roof covers and walls, which is strictly conducted in accordance with European DIN4102B1, M2 quality control standards.

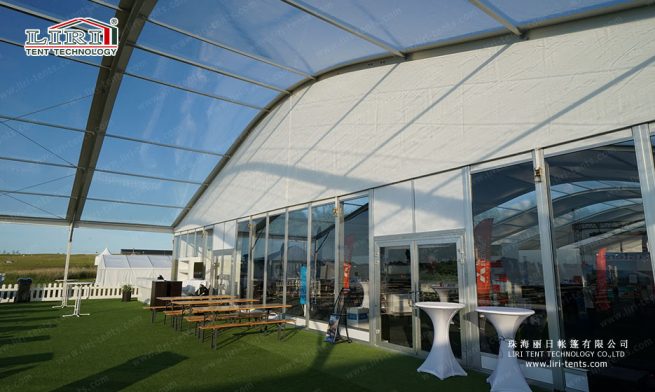

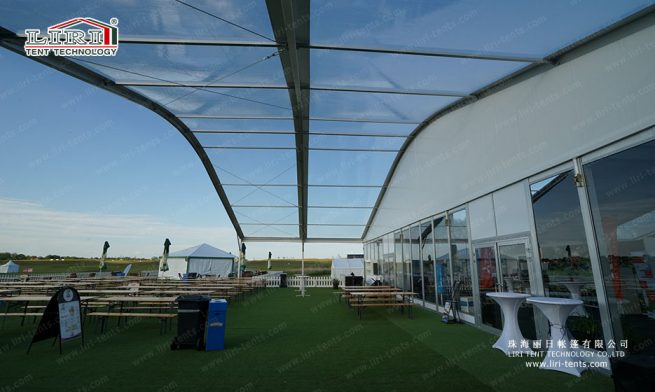

    A variety of optional accessories expand the function and usage of Curve Tent. Such as PVC fabric sidewalls with arch clear windows, ground anchors, weight plates, decoration roof linings and side curtains, glass walls, ABS solid walls, steel sandwich walls, corrugated steel sheet walling, glass doors, sliding doors, roller shutters, transparent roof covers and sidewalls, flooring system, hard PVC rain gutters and so on.

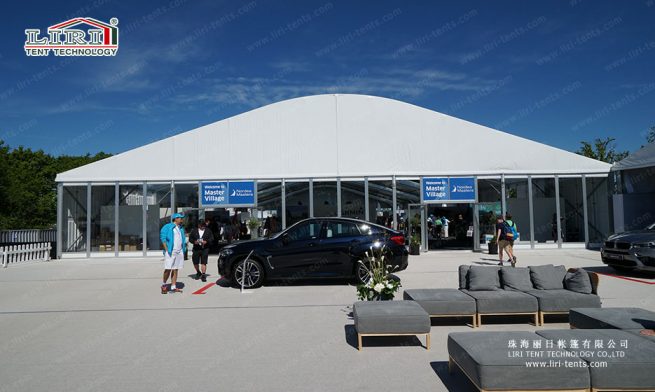

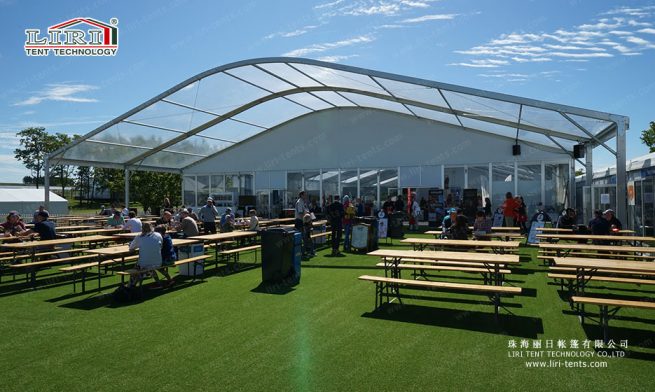

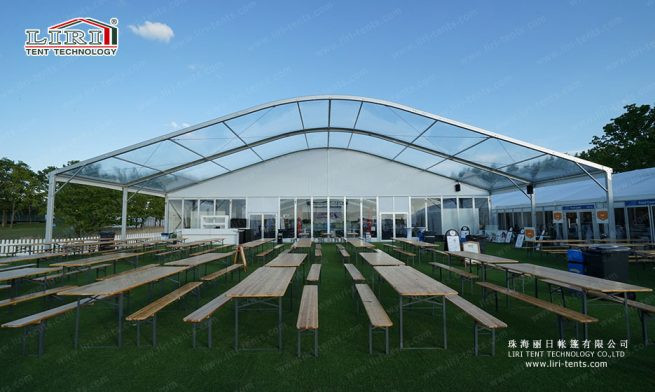

    The exterior of Dome Tent is very special because of the pre-bended roof beams, the design is based on normal A shaped tents and also absorbs the elements of traditional Chinese culture. Dome Tent is not only strong but also durable, the wind resistance can reach 100km/h(0.5kn/m²). Dome Tent can support clients’ businesses very well with its advantages, such as expansion with its modular structure, quick installation, easily assembled and dismantled, small storage volume and so on.

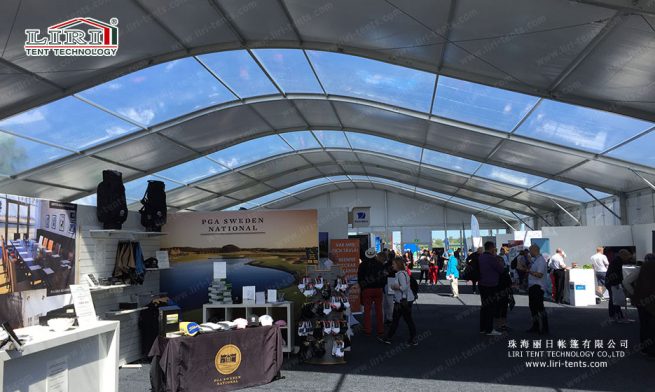

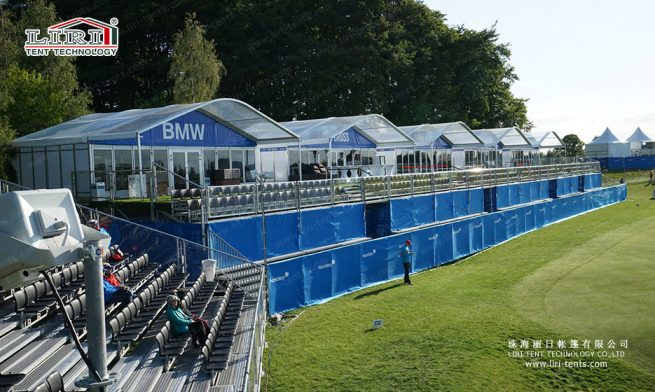

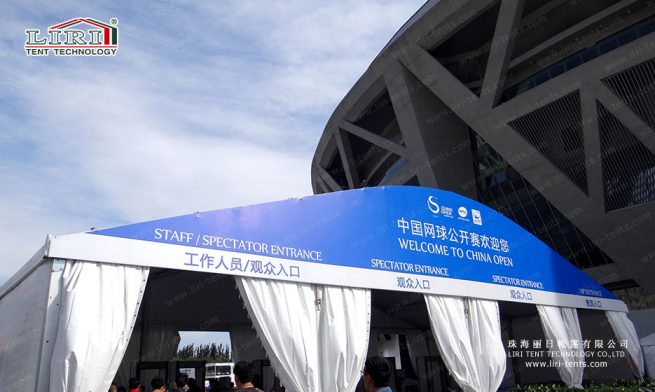

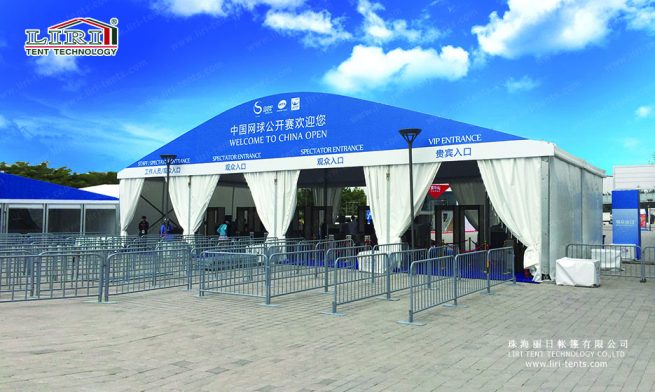

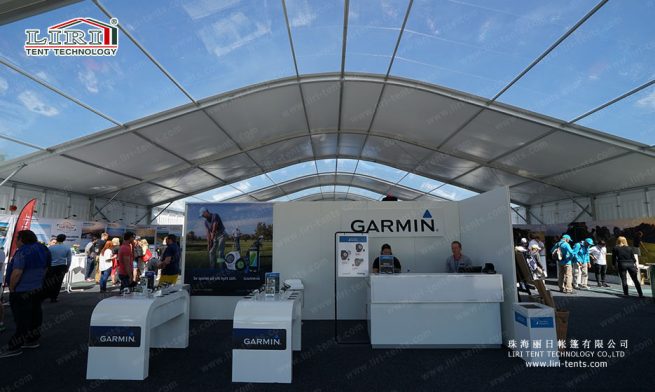

    Dome Tent has a strong sense of contemporaneity with its elegant exterior and bigger interior space when it is used for big events and as temporary showrooms.

    This product has obtained a national patent, patent number: ZL201120397654.4

    Dome Tents for sale And more information please contact us.

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile
    6m
    2.6m3.48m
    3m100x48x3mm (4 - channel)
    8m
    2.6m
    3.82m
    3m
    100x48x3mm (4 - channel)
    9m3m4.4m3m122x68x3mm (4 - channel)
    10m3.88m4.94m5m204x120x4mm (4 - channel)

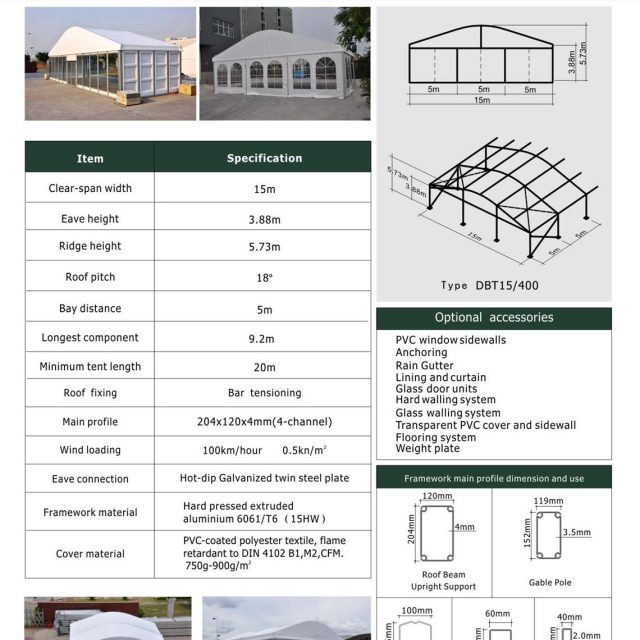

    15m3.88m5.73m5m204x120x4mm (4 - channel)

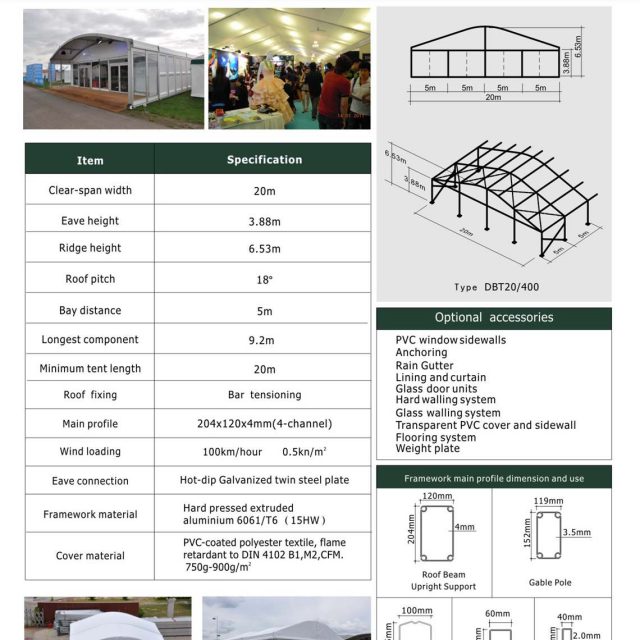

    20m3.88m6.53m5m204x120x4mm (4 - channel)

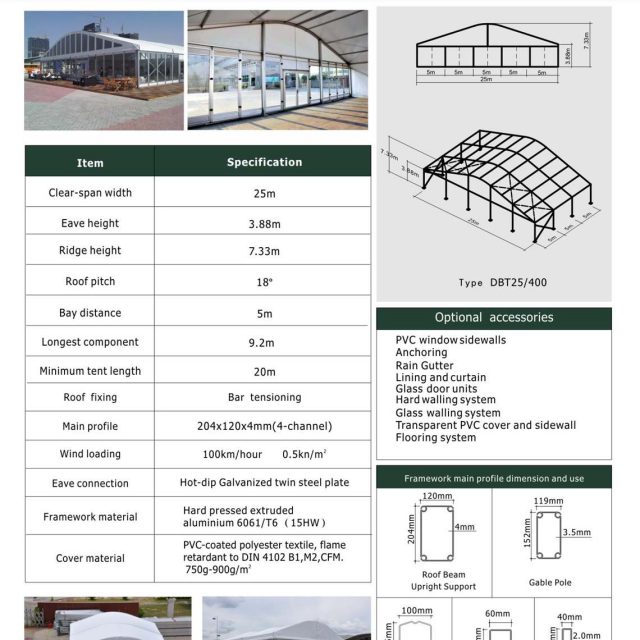

    25m3.88m7.33m5m204x120x4mm (4 - channel)
  3. 3D Drawing

    Dome Tent

  4. Technical Data
