Modular Cube Tent

  1. General Details

    1. Simple and generous flat-top, Applied inflatable roof with heat preservation,  thermal and noise insulation performance.

    2. When used in combination, uprights and beams can be shared, which can realize the seamless connection and unlimited expansion in the horizontal and vertical direction.

    3. used in multiple combinations and composed of different shapes, so as to expand the use of space and reduce land area.

    4. Modular Cube tent also has the function of the rain gutter itself, eave water can be flowed directly from the eave beam into upright for discharge, which not only solves the problem of water but also to avoid leaving stains, affecting the appearance.

    5. Fewer parts, easy transportation, instant installation and dismantle, easy storage, no need large mechanical assistance.

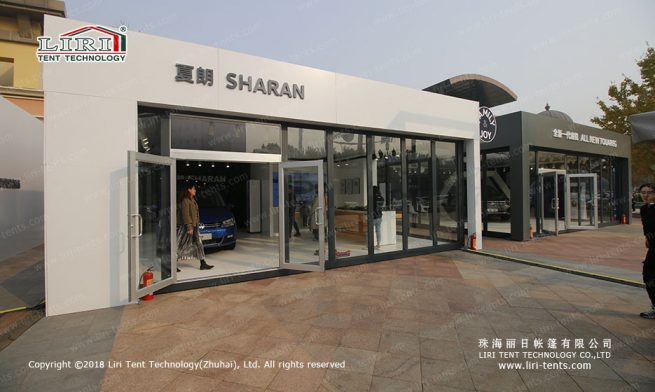

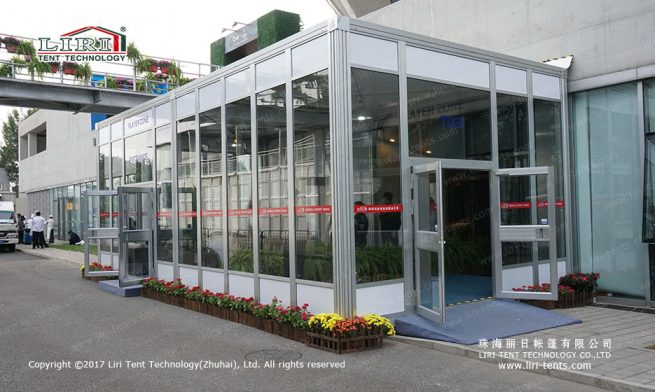

    After equipped with other facilities, a modular cube tent can be used for temporary, semi-permanent or permanent outdoor exhibition halls, mobile offices, VIP lounges, multi-purpose suites, and outdoor hotels.

    This product was awarded the national invention patent    Patent No.:201720905621.3,ZL201920591123.5

    The Combination Connection Mode of Modular Cube Tent

    The Combination Connection Mode of Modular Cube Tent

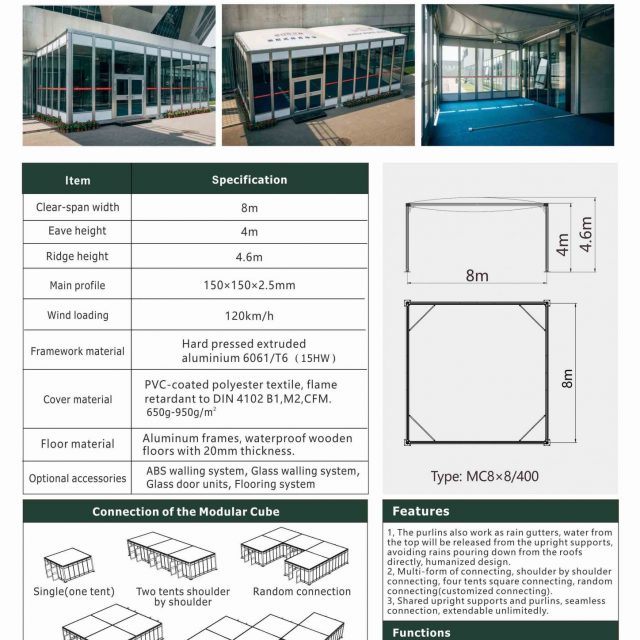

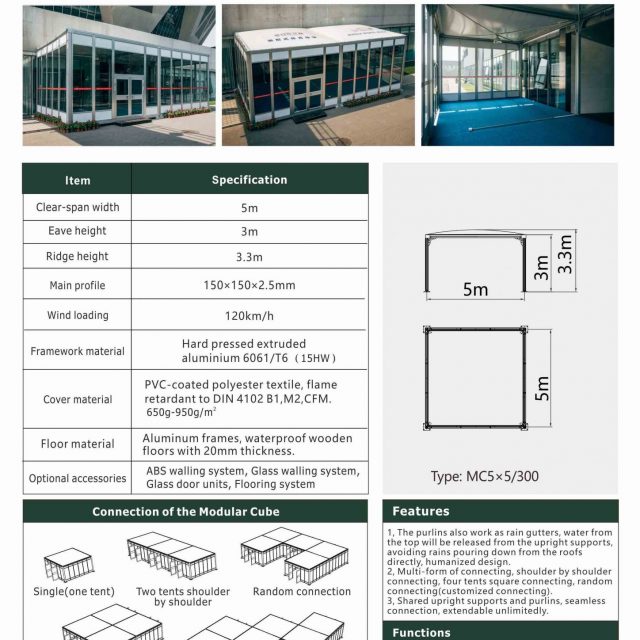

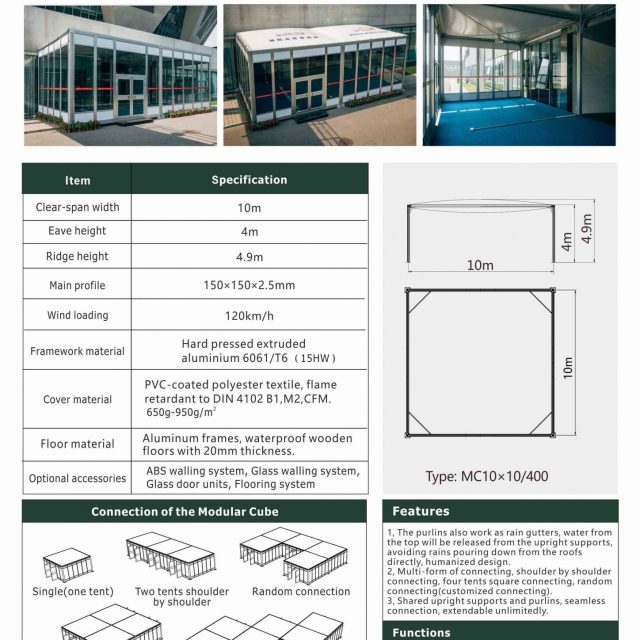

    Modular Cube Tent Technical data

    Modular Dome Tent

  2. Product Specification
    Span WhidthEave HeightRidge HeightMain Profile
    5m3m3.3m150x150x2.5m (4 - channel)
    6m3m3.4m150x150x2.5m (4 - channel)
    8m4m4.6m150x150x2.5m (4 - channel)
    150x150x2.5m (4 - channel)
    10m4m4.9m150x150x2.5m (4 - channel)
  3. Technical Data
