Big Tent EBT 20m-30m

Category:
  1. General Details

    EBT Series width 20m-30m

    The Event Big Tent EBT Series features structures available in widths of 20m, 25m and 30m. This series uses modular-combination design which allows the tent length to be adjusted in 5m bays. The event big tent frameworks (upright support and roof beams) are manufactured 256x121x5mm four-channel high strength extruded and anodized Aluminum (6061/T6), and the PVC covers use double PVC-coated polyester textile which is flame retardant in accordance to industry standards. The Event Big Tent-EBT series offers variety in shape and size such as A-shape, Arcum, Dome, Polygon and Flat roof.

    The Event Big Tent-EBT Series features several improvements to provide more value to your purchase that include: Bar-tensioning system instead of the rubber-tensioning system and fixed sidewall to the eave beam instead of being hung on the round bar with rings. These improvements allow our products to have increased wind loading and tightness with parts that are interchangeable.

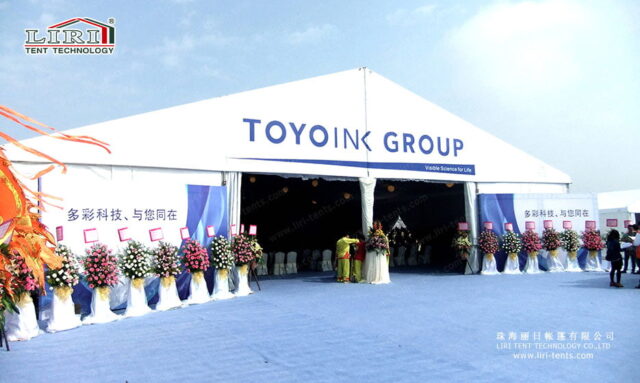

    The Event Big Tent-EBT Series offers quick and easy installation and dismantle without the need for heavy equipment. These structures can be used for temporary or permanent buildings and are widely used for: business promotions, festivals, catering, social receptions, warehouses and outdoor recreation. We also offer customized design service to ensure you get a product that fits your exact needs.

    The Event Big Tent-EBT Series is compatible with a full-range of accessories to increase functionality, such as clear PVC window sidewalls, ground anchors, weight plates, lining and curtains, glass walls, ABS walls, sandwich walls, glass doors, sliding doors, rolling doors, transparent roof covers and sidewalls, flooring systems and rain gutter systems.

    This product has obtained a national patent, patent number: ZL201120397654.4

    For more information please contact us.

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile
    20m4m7.2m5m256x121x5mm (4 - channel)
    25m4m8.0m5m256x121x5mm (4 - channel)
    30m4m8.9m5m256x121x5mm (4 - channel)

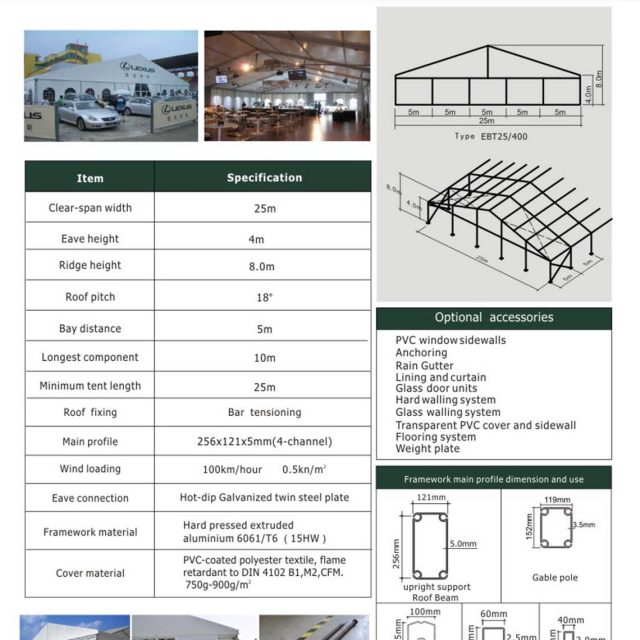

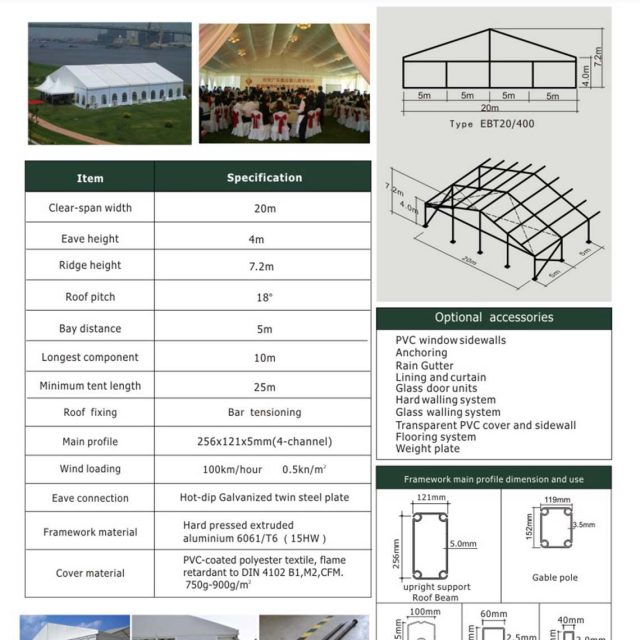

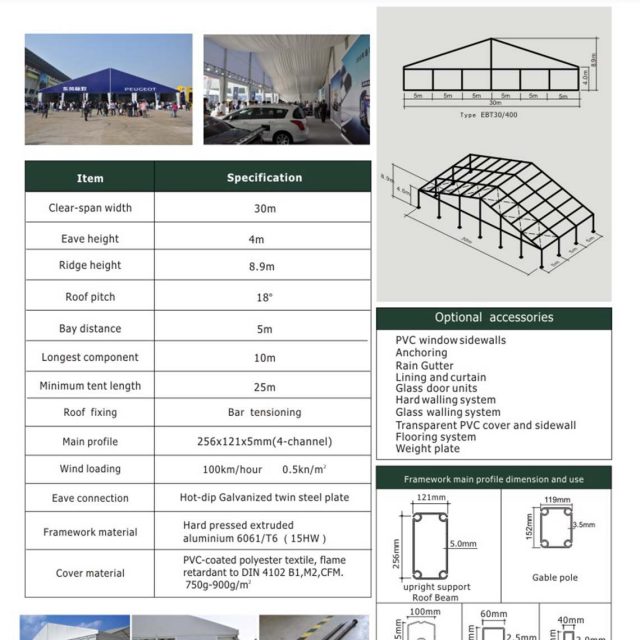

  3. 3D Drawing

    Big Tent EBT 20m 30m

  4. Technical Data
