Tent Hall TH 30m-40m

Clear span widths of the Tent Hall-TH series are available in 30m, 40m with main frame profile 300x120x5mm, Easy to assemble and disassemble.

Category:
  1. General Details

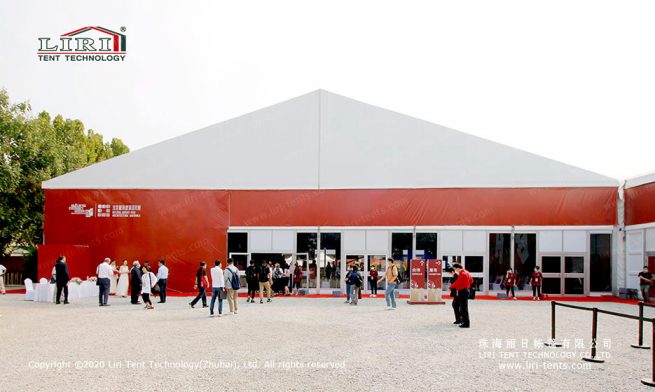

    Tent Hall TH 30m-40m

    Clear span widths of the Tent Hall-TH series are available in 30m, 40m with mainframe profile 300x120x5mm. The Tent Hall structure is a modular system, and the length can be increased or decreased by 5m bay. There are no center poles inside the tent, so tent space utilization is up to 100%. Also, Tent Hall-TH series’ stability, fire resistance, and wind resistance all meet with international standards.

    The frame adopts hard pressed extruded aluminum 6061/T6, and cover and sidewalls adopt double PVC- coated polyester textile, which is flame retardant to European standard DIN 4102 B1, M2.

    The Tent Hall-TH series is with various shapes and sizes, such as square, hexagonal, octagonal, decagonal, dodecagonal, and double decker.

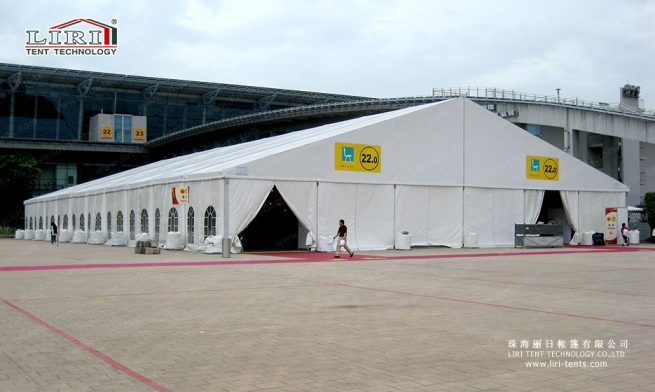

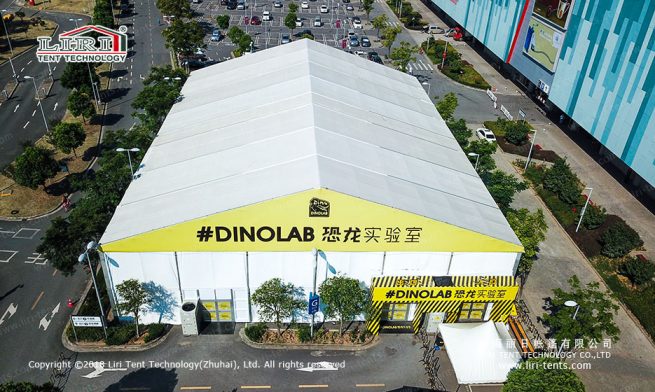

    Also full range of optional accessories are available for this tent hall to make it more functional, such as clear PVC window sidewalls, ground anchors, weight plate, lining and curtain, glass walls, ABS walls, sandwich walls, glass door, sliding door, rolling door, transparent roof covers & sidewalls, flooring system, rain gutter system, half-hexagonal, octagonal, decagonal, dodecagonal for end unit, and high peak structures.

    Tent Hall-TH series is modular structure, so it is with short installation time, easy assembling and dismantling, small volume for transportation and storage, sturdy and durable design, and wind resistance to 100km/h. The roof covers and sidewalls are with the tensioning system; also it can be printed with logos and patterns.

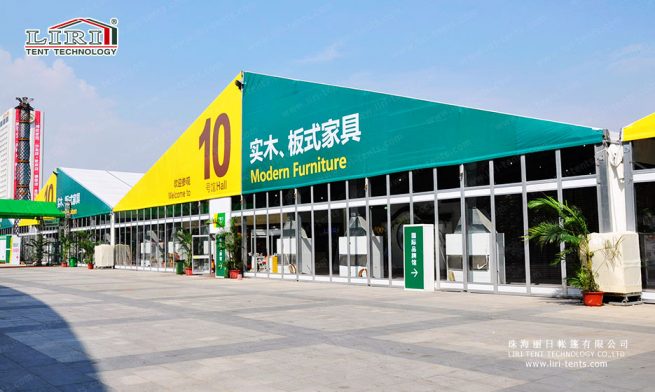

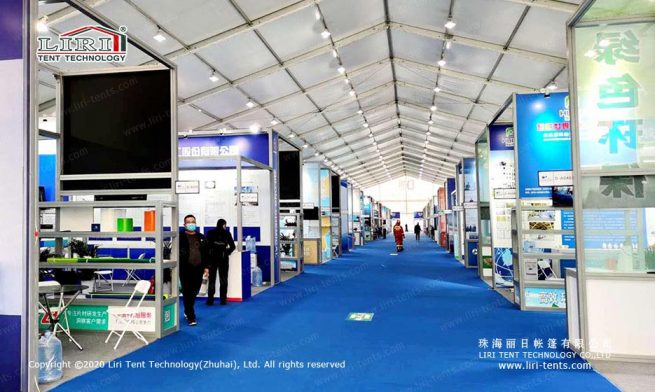

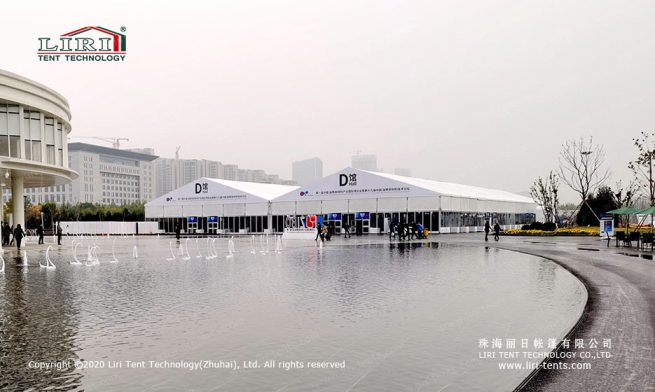

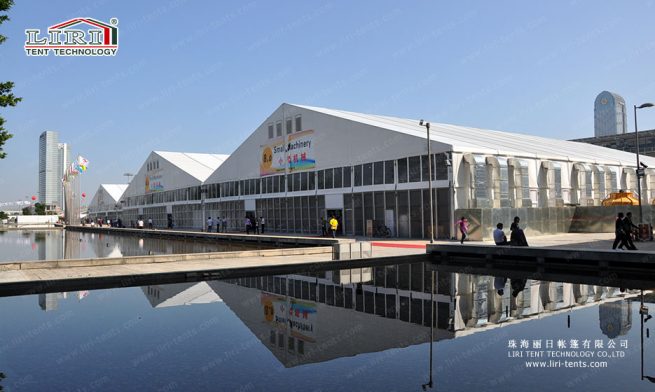

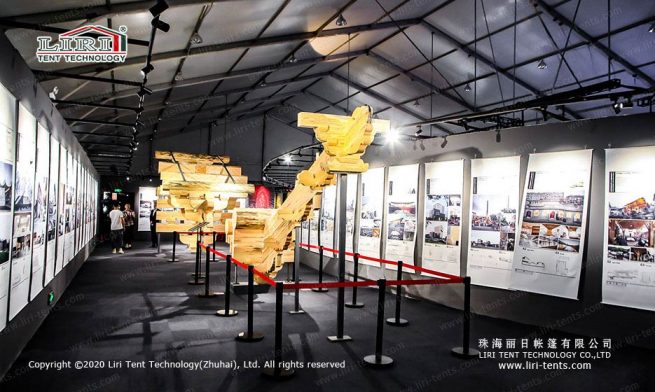

    With its large clean span width, Tent Hall-TH series is widely used for all kinds of temporary outdoor activities, being good choices for temporary or permanent structures. Tent Hall-TH series is very suitable for outdoor large exhibition, concert, opening ceremony, beer festival, music hall, product promotion, conference meeting, celebration gala, temporary warehouse, logistics transshipment, hangar, military command center, temporary medical and disaster relief, etc.

    This product has obtained a national patent, patent number: ZL201120397654.4
    For more information please contact us.

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile
    30m4m8.9m5m300x120x5mm (4 - channel)
    40m4m10.5m5m300x120x5mm (4 - channel)
  3. 3D Drawing

    Tent Hall TH30m 40m

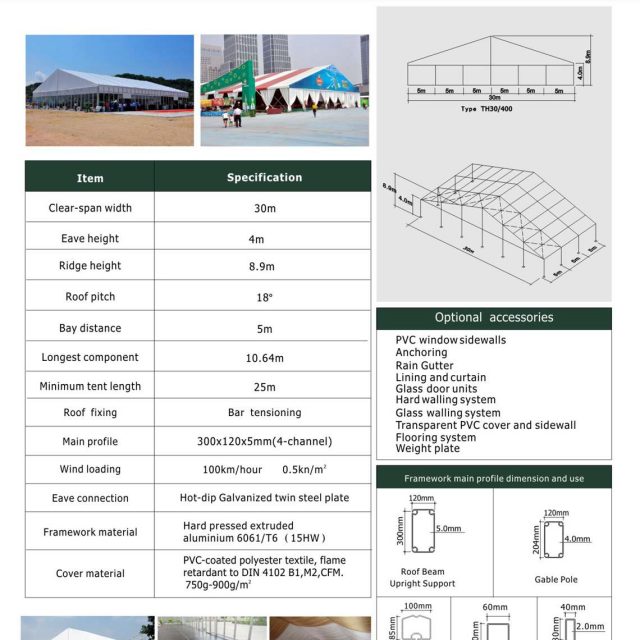

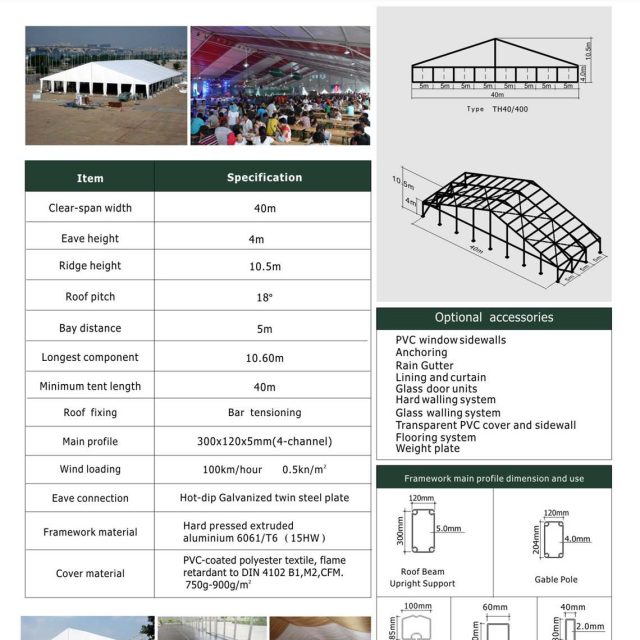

  4. Technical Data
