Large Hall LH 30m-50m

The Large Hall-LH series is with various shapes and sizes, such as square, hexagonal, octagonal, decagonal, dodecagonal, and double decker.

Category:
  1. General Details

    Large Hall LH 30m-50m

    Clear span widths of Large Hall-LH series are available in 30m, 40m, and 50m with mainframe profile 350x120x5mm. The Large Hall-LH series structure is a modular system, and the length can be increased or decreased by 5m bay. The frame adopts hard pressed extruded aluminum 6061/T6, and cover and sidewalls adopt double PVC- coated polyester textile, which is flame retardant to European standard DIN 4102 B1, M2.

    The Large Hall-LH series is with various shapes and sizes, such as square, hexagonal, octagonal, decagonal, dodecagonal, and double decker. Also full range of optional accessories are available for this large hall to make it more functional, such as clear PVC window sidewalls, ground anchors, weight plate, lining and curtain, glass walls, ABS walls, sandwich walls, glass door, sliding door, rolling door, transparent roof covers & sidewalls, flooring system, rain gutter system, half hexagonal, octagonal , decagonal, dodecagonal for end unit, and high peak structures.

    Large Hall-LH series is modular structure, so it is with short installation time, easy assembling and dismantling, small volume for transportation and storage, sturdy and durable design, and wind resistance to 100km/h. The roof covers and sidewalls are with the tensioning system; also it can be printed with logos and patterns.

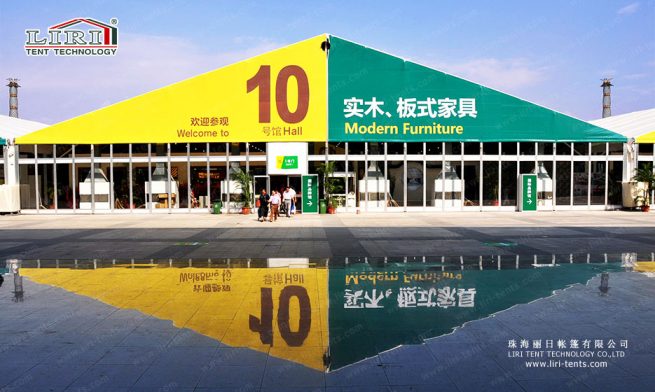

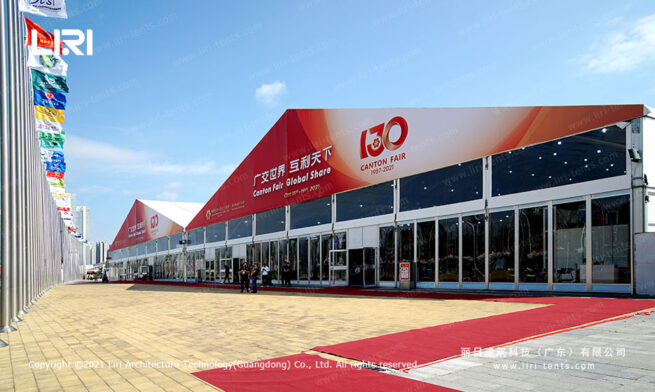

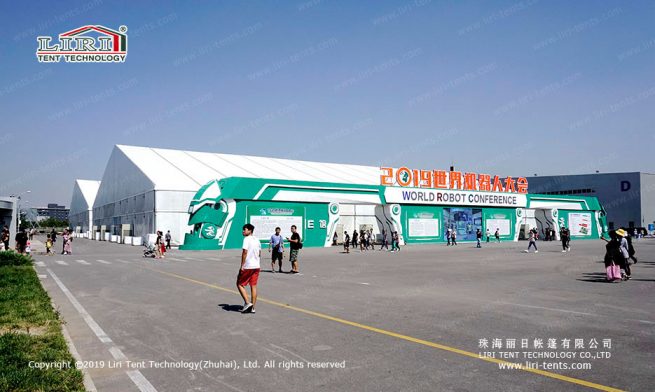

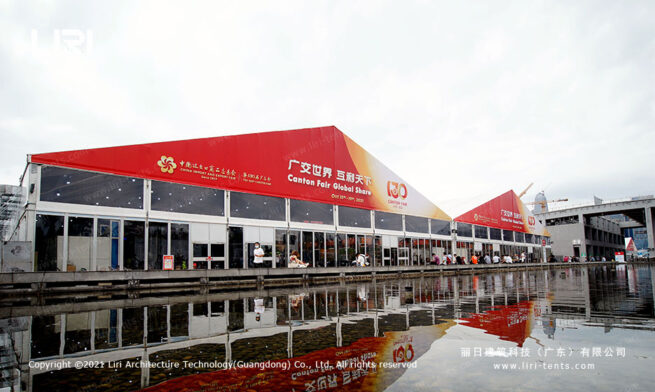

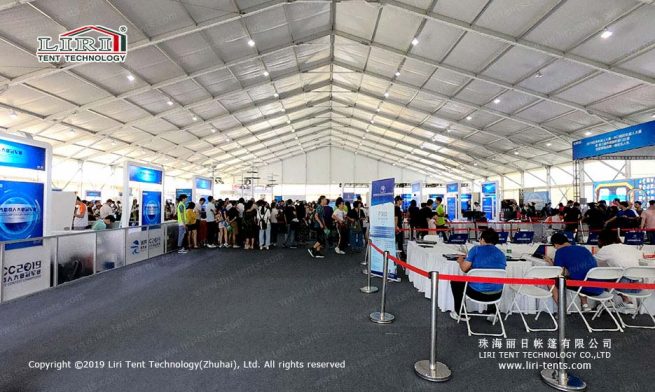

    With large clear span width, Large Hall-LH series is suitable for outdoor exhibition, event, storage, trade fair, opening ceremony, product promotion, conference, business promotion, celebration gathering, temporary warehouse, logistics transshipment, hangar, military command center, temporary medical and disaster relief, etc.

    This product has obtained a national patent, patent number: ZL201120397654.4
    For more information please contact us.

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile

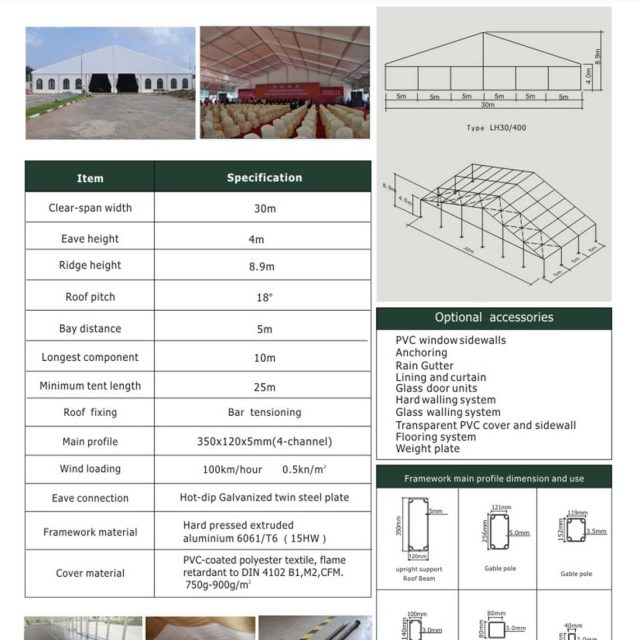

    30m4m8.9m5m350x120x5mm (4 - channel)
    40m4m10.5m5m350x120x5mm (4 - channel)

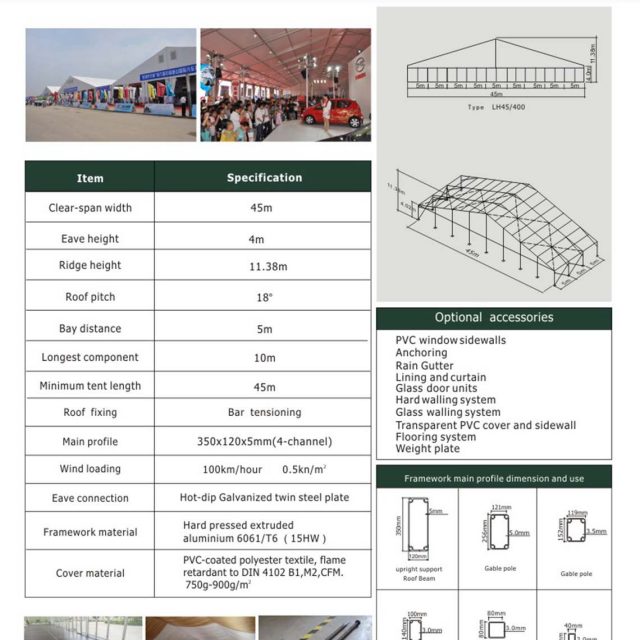

    45m4m11.38m5m350x120x5mm (4 - channel)

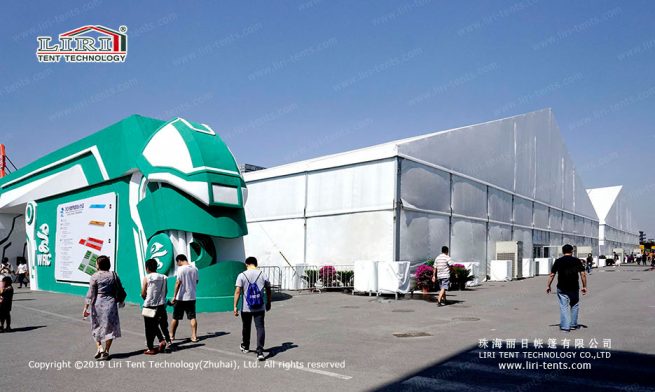

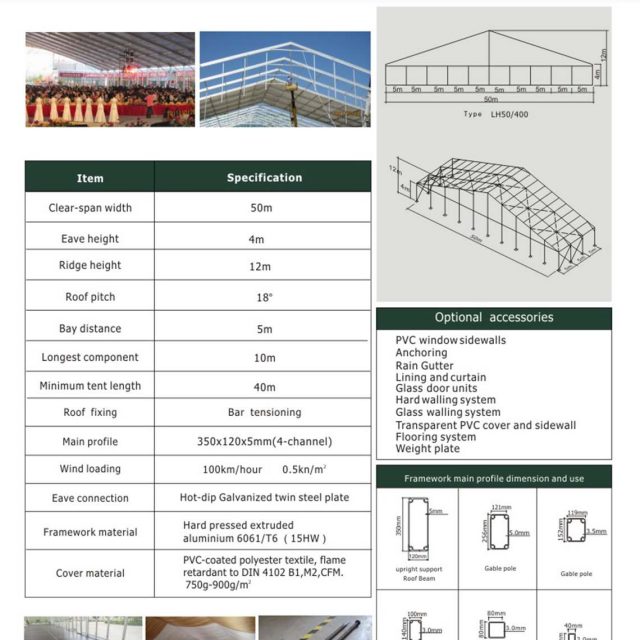

    50m4m12m5m350x120x5mm (4 - channel)

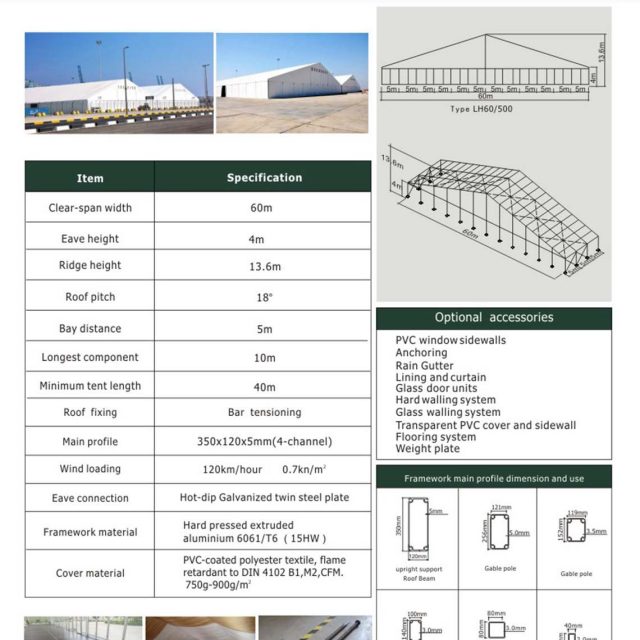

    60m4m13.6m5m350x120x5mm (4 - channel)
  3. 3D Drawing

    Large Hall LH30m 50m
