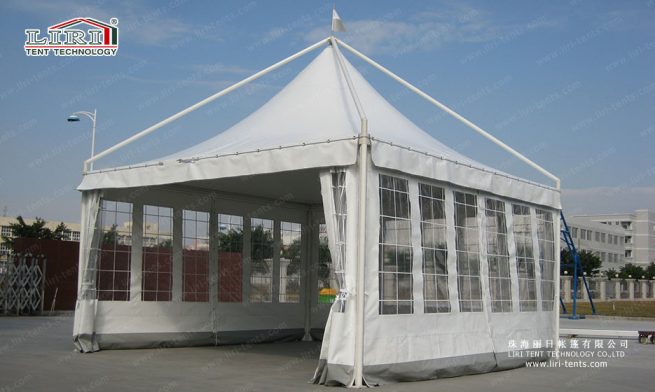

Gazebo Tent

  1. General Details

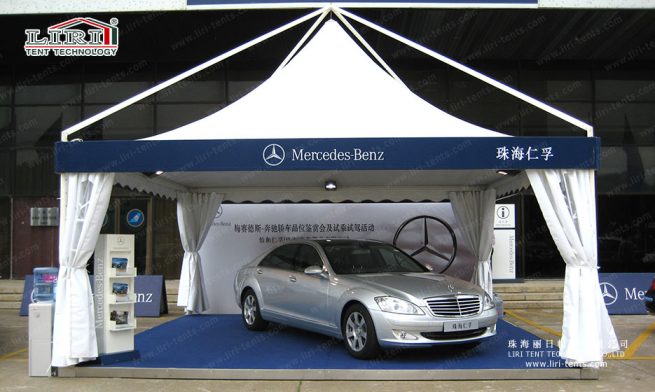

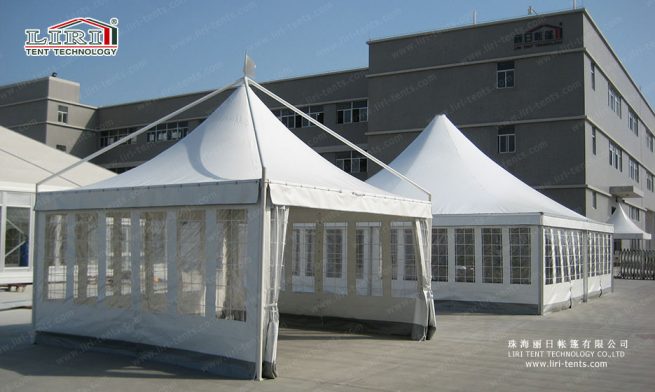

    The standard outdoor gazebo tents with the side height of 2.5m are available in 3x3m, 4x4m, 5x5m, and 6x6m. All the framework and junctions are made out of aluminum alloy. It is easy to assemble the roofs because it uses eyelets and sliding plastic resin balls to fix it. The optional accessories for the Gazebo tent include clear windows, lining, weight plate, rain gutter, digital printing, etc.

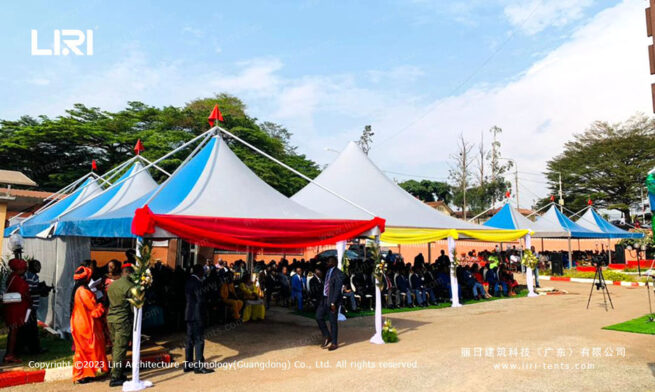

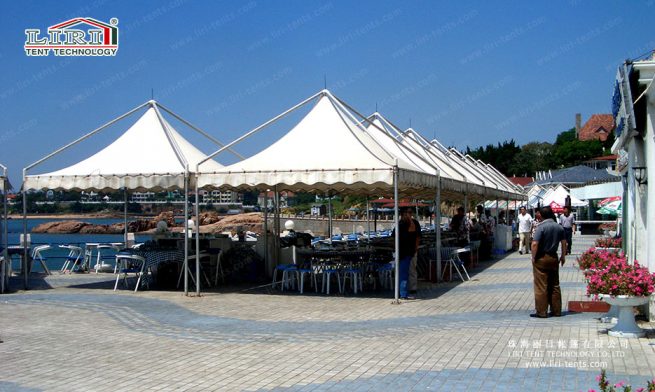

    Outdoor gazebo tents can be used as a single unit or combined by a rain gutter to make a larger space and a special structure style.

    This product has obtained a national patent, patent number: ZL201520411066.X

    For more information please contact us.

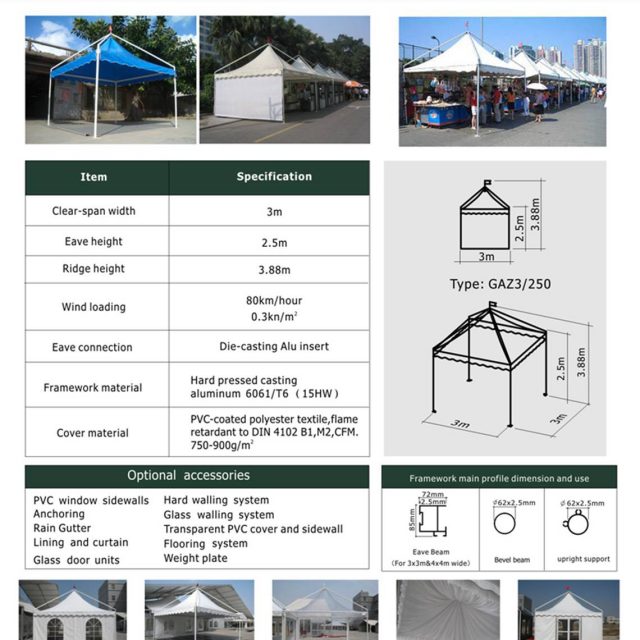

  2. Product Specification
    Span WhidthEave HeightRidge HeightMain Profile
    3m2.5m3.88m85x72x2.5mm (4 - channel)

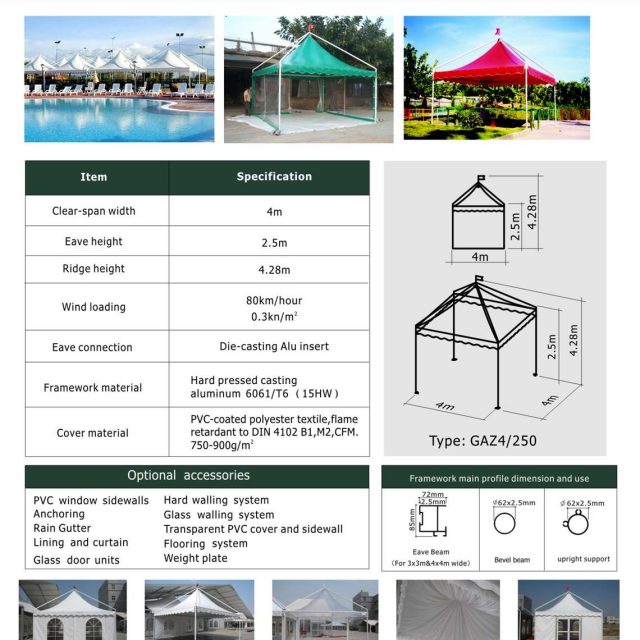

    4m2.5m4.28m85x72x2.5mm (4 - channel)

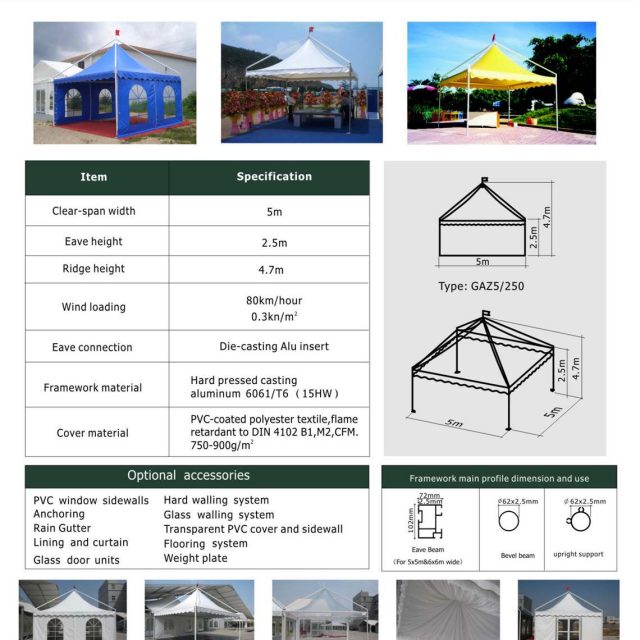

    5m2.5m4.7m102x72x2.5mm (4 - channel)

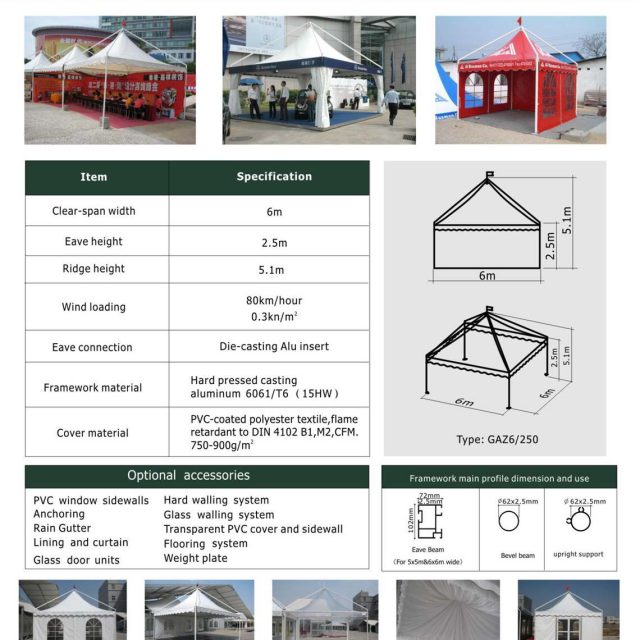

    6m2.5m5.1m102x72x2.5mm (4 - channel)
  3. 3D Drawing
  4. Technical Data
