Pinnacle Tent

  1. General Details

    The Pinnacle Tent series are available in 3x3m, 4x4m, 5x5m, and 6x6m with a standard side height of 2.5m. The framework of the tent use the 3 channel 65x65x2.5mm aluminium alloy and it can resist the wind speed of 80km/h (0.3kn/m2). The fabric used consists of opaque 850g/sqm PVC and the roof cover is fixed on four upright supports. There are several options of accessories to choose from. The options for this tent include a glass wall system, glass doors, wooden flooring, ground anchors, decoration lining, and curtains, etc.

    The Pinnacle Tent can be used not only for a single unit but also can be combined to enlarge space for a rain gutter. The Pinnacle tent is easier to assemble and dismantle than the European Pagoda tent, as well as easier to store. The structure is different from the traditional European tent because of its simple interior structure. The Pinnacle tent is also more safe and strong compared to the folding tent. It will take about 10 minutes for two people to assemble the tent. They can make your outdoor event become more visually pleasing!

    Compared to the traditional European style Pagoda Tent, the Pinnacle Tent series is more popular in America. The inside structure is simplified, applies only two steel ropes and a centre pole to lift up the rooftop; it is beautiful and attractive look from the outside; it’s safer and more stable than the folding tent. A tent you cannot miss for your outdoor activity.

    For more information please contact us!

  2. Product Specification
    Span WhidthEave HeightRidge HeightMain Profile

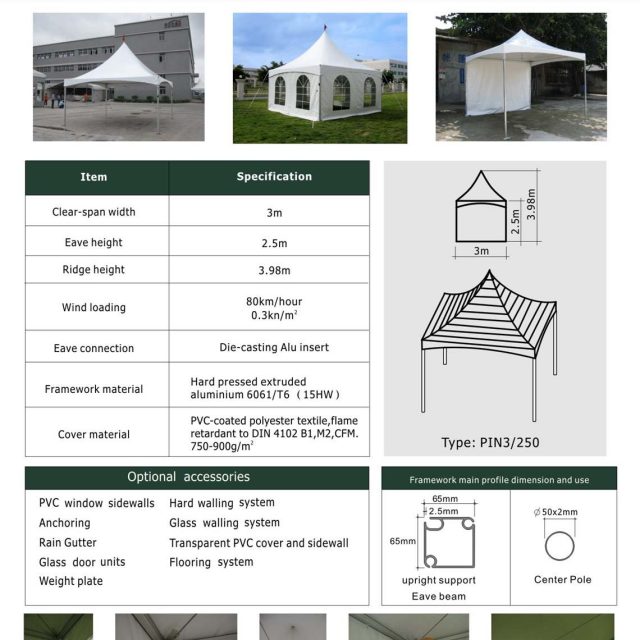

    3m2.5m3.98m65x65x2.5mm (4 - channel)

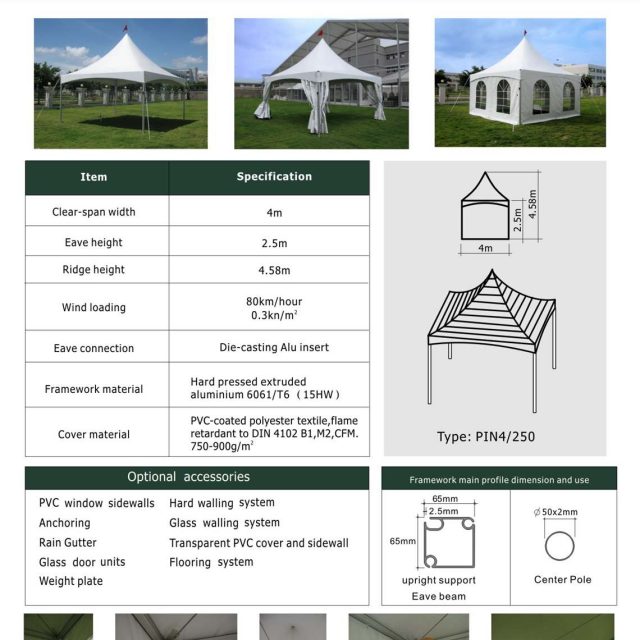

    4m2.5m4.58m65x65x2.5mm (4 - channel)

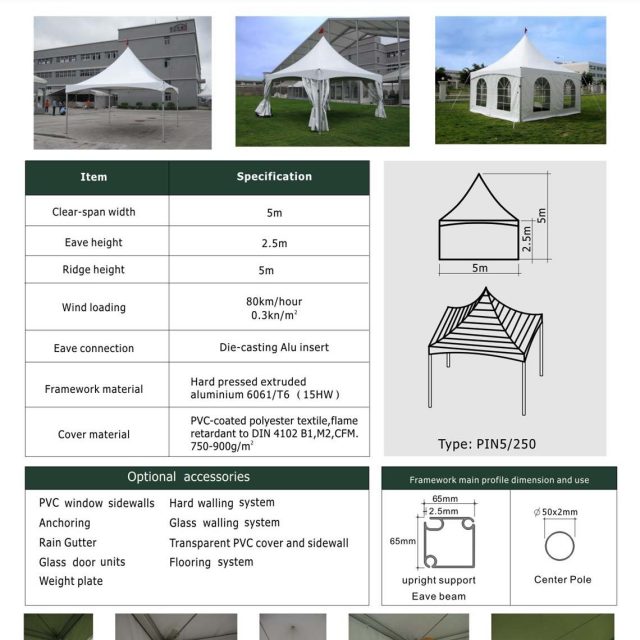

    5m2.5m5m65x65x2.5mm (4 - channel)
    6m2.5m5.43m65x65x2.5mm (4 - channel)
  3. 3D Drawing

    Pinnacle Tent

  4. Technical Data
