Polygon Huge Hall

  1. General Details

    The roof beams of the Polygon Top Tent are combined by several split aluminum alloy beams and in a polygon shape, so it is named Polygon Top Tent.

    The clear span of Polygon Top Tent is 10m, 12m, 15m, 18m, 20m, 25m, 30m, 40m, 50m, 60cm and 80cm. The standard side height of 10-40m span width tents is 4m and 5m for 50m and 60m. Bay distance is 5m, the length can be increased and decreased by 5m bay without limit. It can also be customized for clients’ special requirements.

    The design for Polygon Top Tent is with the advanced idea and the structure is quite firm. It is designed for meeting the requirements of bigger interior space and elegant polygonal appearance. The features of Polygon Top Tent: modular system, easy to be assembled and dismantled, durable, wind resistance can reach 100-120km/hour, flame retardant with relevant certificates. It is suitable for large-scale concerts, exhibitions, big parties, sports events and so on.

    This product has obtained a national patent, patent number: ZL201120397654.4

    For More Information Please Contact Us!



  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile
    10m4m7.16m5m204x120x4mm (4 - channel)
    12m4m7.4m5m204x120x4mm (4 - channel)
    15m4m8.75m5m204x120x4mm (4 - channel)
    18m4m9.15m5m204x120x4mm (4 - channel)
    20m4m9.42m5m204x120x4mm (4 - channel)
    25m4m11.72m5m256x121x5mm (4 - channel)
    30m4m13.2m5m256x121x5mm (4 - channel)
    40m4m15.4m5m300x120x5mm (4 - channel)
    50m4m16m5m300x120x5mm (4 - channel)
    60m4m17m5m400x120x7mm (4 - channel)
    80m6m
    21.5m
    5m500x150x7/8mm (4 - channel)

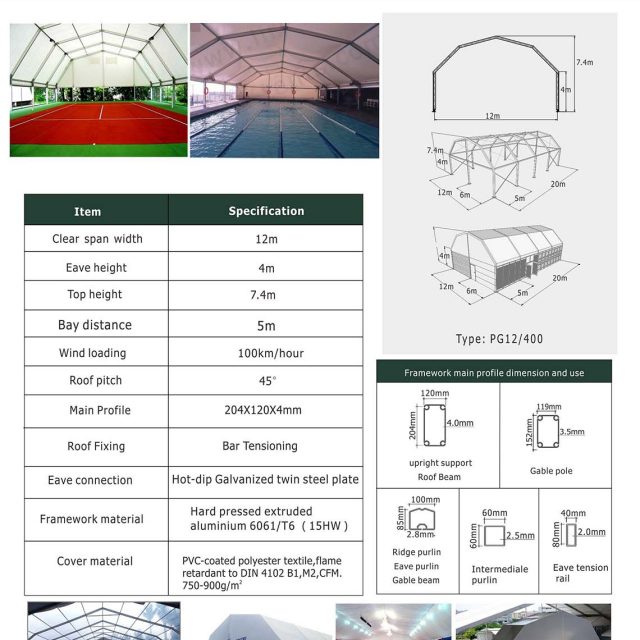

  3. 3D Drawing

    Polygon Huge Hall
