Big Tent BTA 10m-25m

There are also many different styles and shapes of Big Tent- BTA series like square, hexagonal, octagonal, decagonal, dodecagonal, and double decker.

Category:
  1. General Details

    Big Tent BTA 10m-25m
    The clear span of the Big Tent-BTA series is from 10m to 25m and the main profile size is 204x110x4mm. Big Tent-BTA series are modular structures and can be increased or decreased in the bay distance of 5m according to the clients’ requirements. The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile and flame retardance which is based on the European standard DIN 4102B1, M2. The big tent-BTA series can resist up to 100km/hr wind loading.

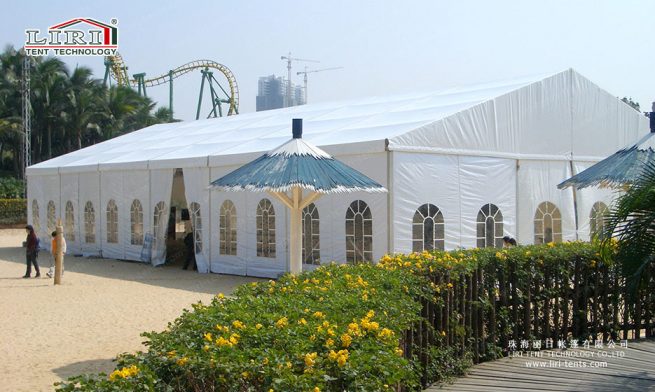

    There are also many different styles and shapes of Big Tent- BTA series like a square, hexagonal, octagonal, decagonal, dodecagonal, and double decker. All clear span big tent structures are available with a complete range of accessories. These accessories are sidewalls with clear windows, ground anchors, weight plate, lining, glass wall system, and ABS hard wall system. You can use Big Tent-BTA series for both temporary and permanent solutions.

    This product has obtained a national patent, patent number: ZL201120397654.4

    For more information please contact us.

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile

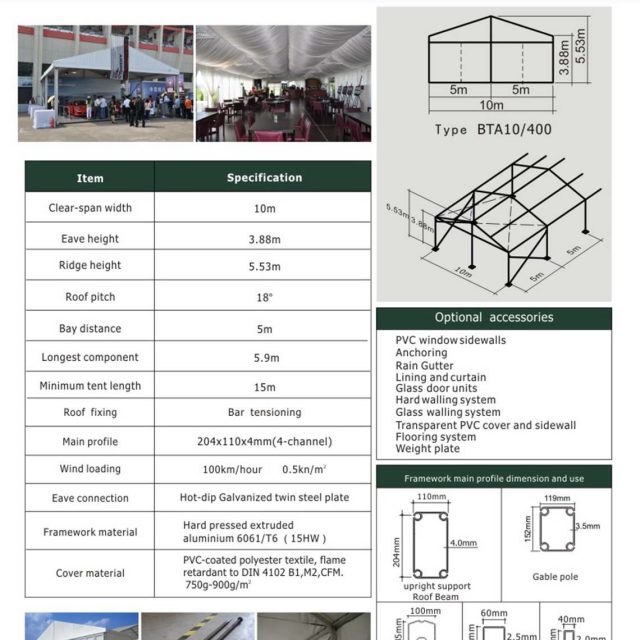

    10m3.88m5.53m5m204x110x4mm (4 - channel)
    12m3.88m5.83m5m204x110x4mm (4 - channel)
    15m3.88m6.3m5m204x110x4mm (4 - channel)
    20m3.88m7.1m5m204x110x4mm (4 - channel)

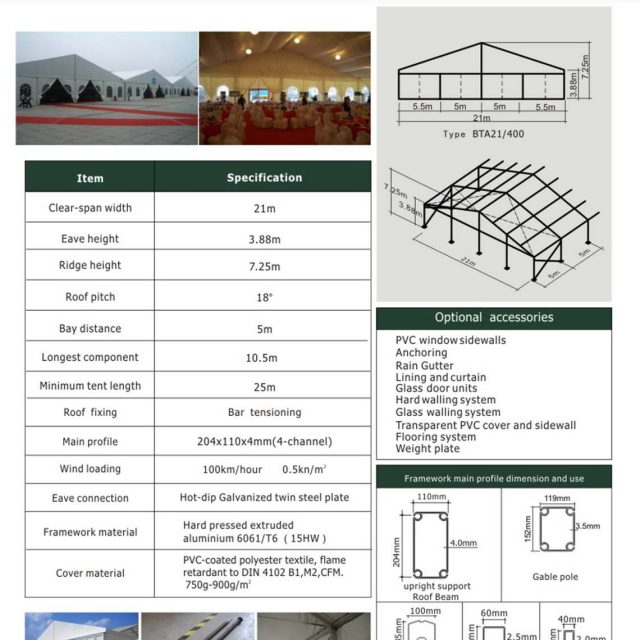

    21m3.88m7.25m5m204x110x4mm (4 - channel)
    25m3.88m7.88m5m204x110x4mm (4 - channel)

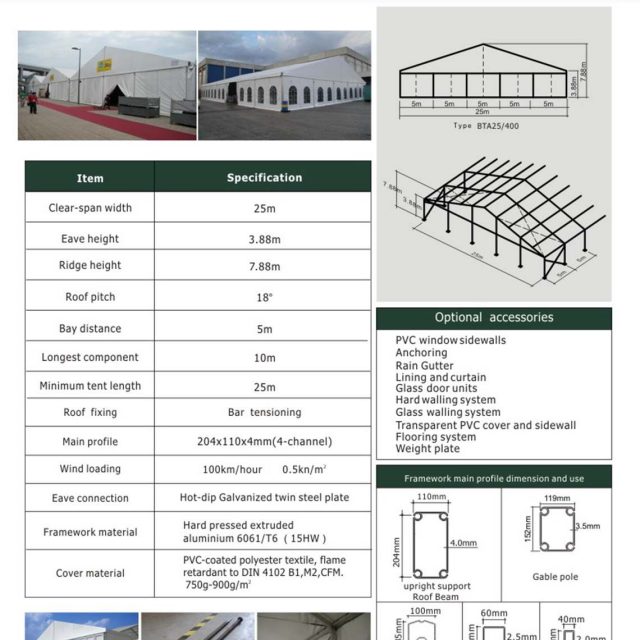

  3. 3D Drawing

    Big Tent BTA 10m 25m

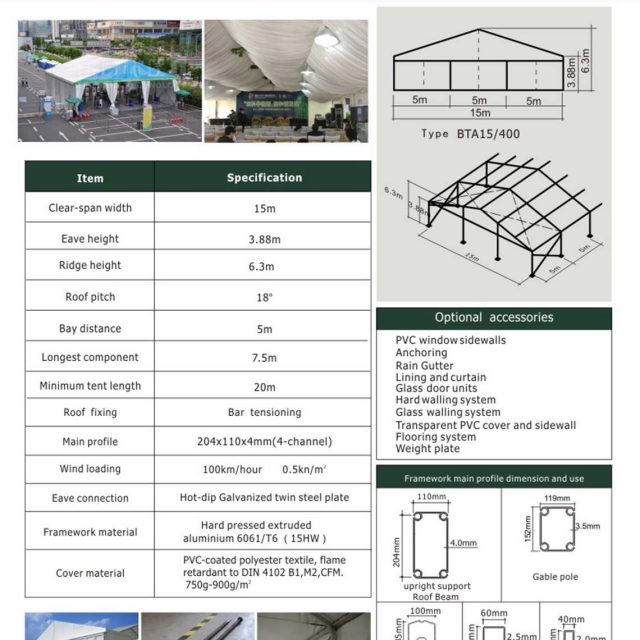

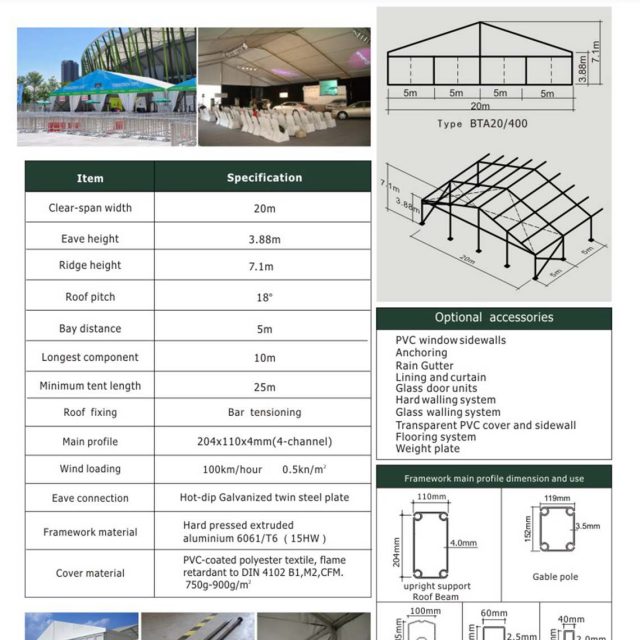

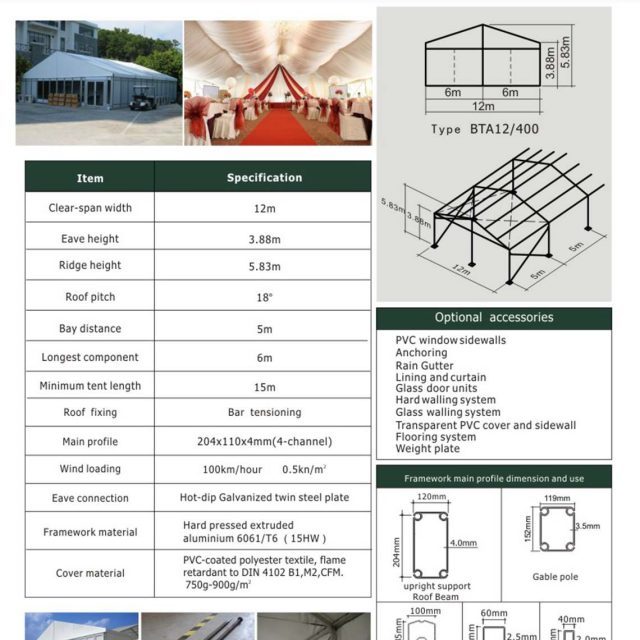

  4. Technical Data
