Big Tent BT 10m-25m

The clear span width of Big Tent series (BT series) covers 10m, 12m, 15m, 20m, 21m and 25m,and the main Aluminium profile size is 204x120x4mm.

Category:
  1. General Details

    Big Tent-BT series: width 10m–25m

    The clear span width of Big Tent series (BT series) covers 10m, 12m, 15m, 20m, 21m and 25m, and the main Aluminium profile size is 204x120x4mm.The tent adopts modular-combination design so that tent length can be extended or decreased by every 5m. Big Tent frameworks (upright support and roof beam) are manufactured with high strength extruded and anodized Aluminum (6061/T6), and the PVC covers use double PVC-coated polyester textile which is flame retardant up to the European standard DIN 4102B1, M2.

    There are also many different shapes tents with various sizes in the range of Big Tent-BT series, like a square, hexagonal, octagonal, decagonal, dodecagonal, and double decker structure. Big Tent-BT series are compatible with various tent accessories to enlarge their functions and usages. Big Tent accessories include sidewalls with clear PVC windows, ground anchors, weight plates, lining and curtain decoration, glass wall system,ABS hard wall system, steel sheet wall system, glass doors, sliding doors, electronic auto rolling doors,total transparent covers and sidewalls, flooring system, rain gutters, 1/2 hexagonal/octagonal/decagonal/dodecagonal gable sides and high peaks on top etc..

    Liri Big Tent-BT series adopt the modularized structure, short installation period, easy to assembly and disassembly, space-saving for storage and transportation. The big tent is designed strong and durable with wind resistance up to 100km/hr. And the professional tensioning system is adopted for big tent covers on which logo can be printed.

    This product has obtained a national patent, patent number: ZL201120397654.4

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile

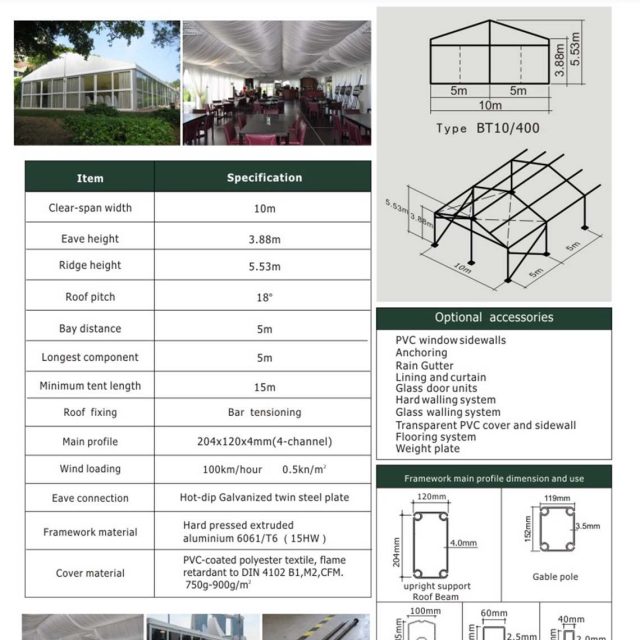

    10m3.88m5.53m5m204x120x4mm (4 - channel)

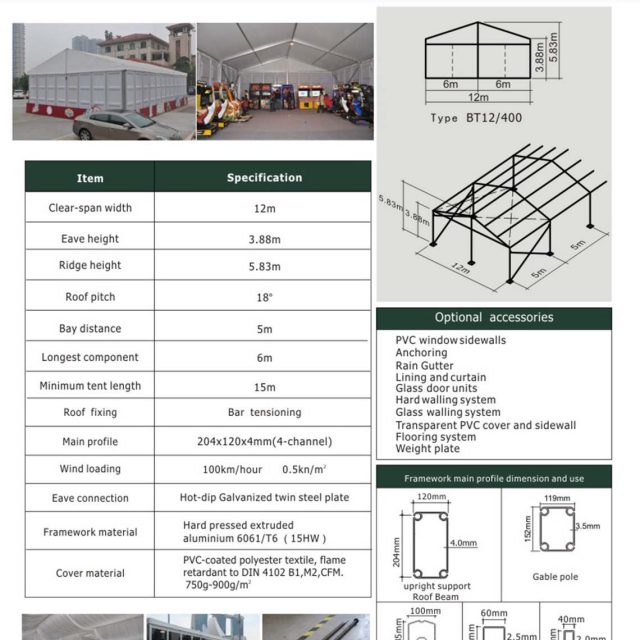

    12m3.88m5.83m5m204x120x4mm (4 - channel)

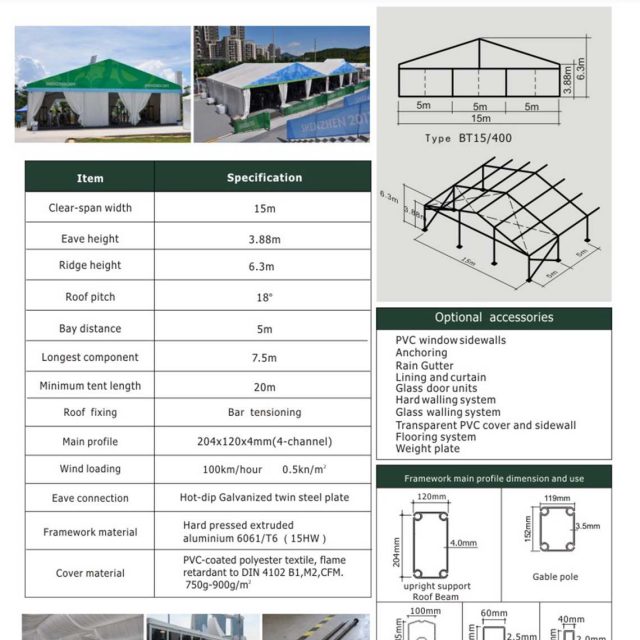

    15m3.88m6.3m5m204x120x4mm (4 - channel)
    16m4m6.5m5m204x120x4mm (4 - channel)

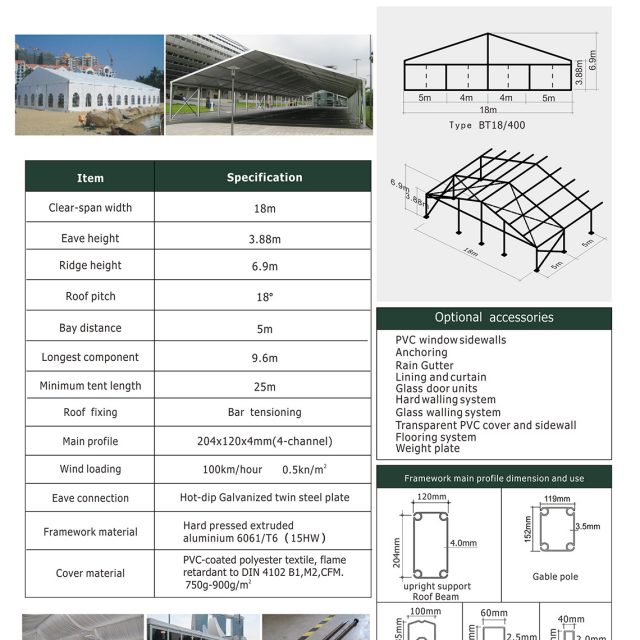

    18m3.88m6.9m5m204x120x4mm (4 - channel)

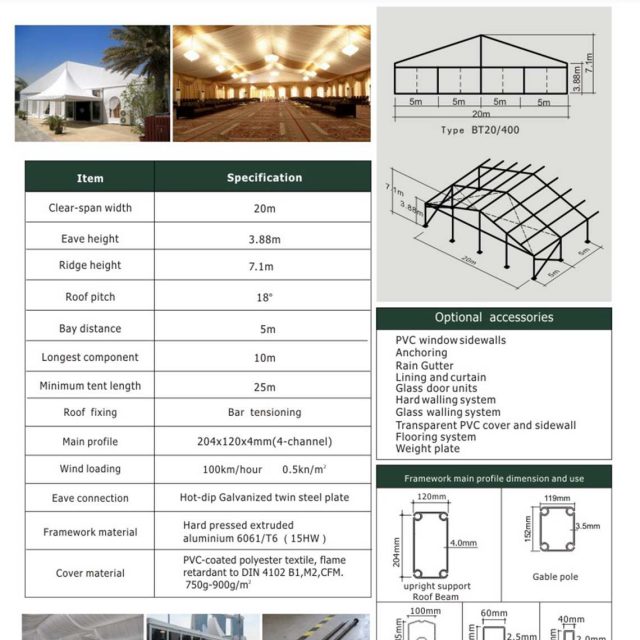

    20m3.88m7.1m5m204x120x4mm (4 - channel)

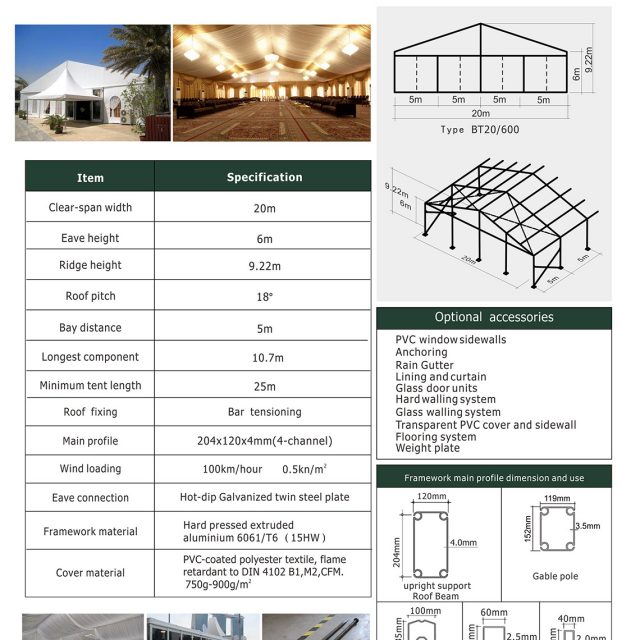

    20m6m9.22m5m204x120x4mm (4 - channel)

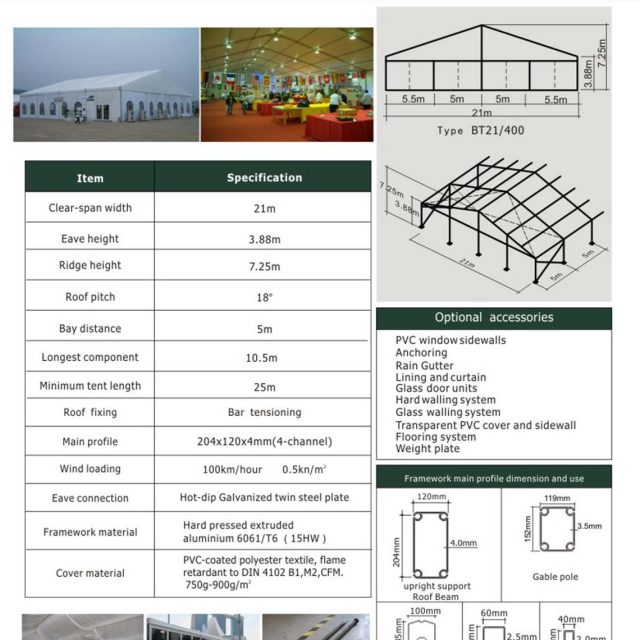

    21m3.88m7.25m5m204x120x4mm (4 - channel)

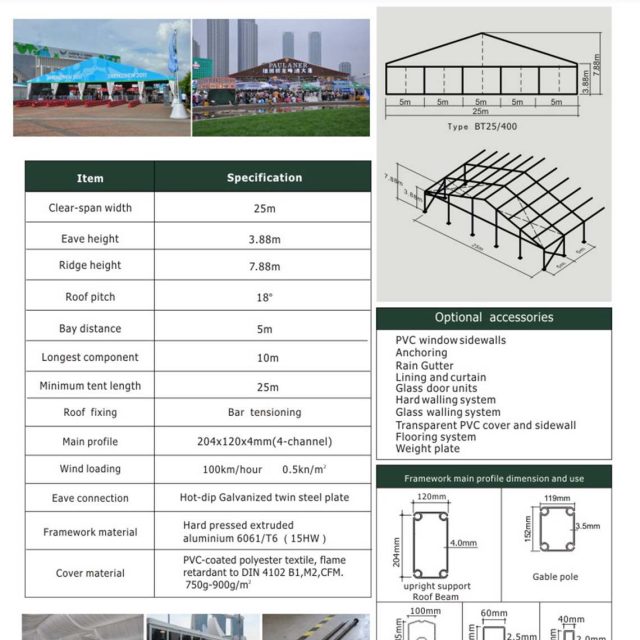

    25m3.88m7.88m5m204x120x4mm (4 - channel)
  3. 3D Drawing

    Big Tent

  4. Technical Data
