Geodesic Dome Tent for World Humanoid Robot Games

The 2025 World Humanoid Robot Games

About The Project

The 2025 World Humanoid Robot Games, an international technology event, fully demonstrated the powerful force of cutting-edge robotics development. To back up such a globally anticipated robotics competition, Liri Architecture Technology (Guangdong) Co., Ltd. provided not only a solid foundation but also a unique charm.

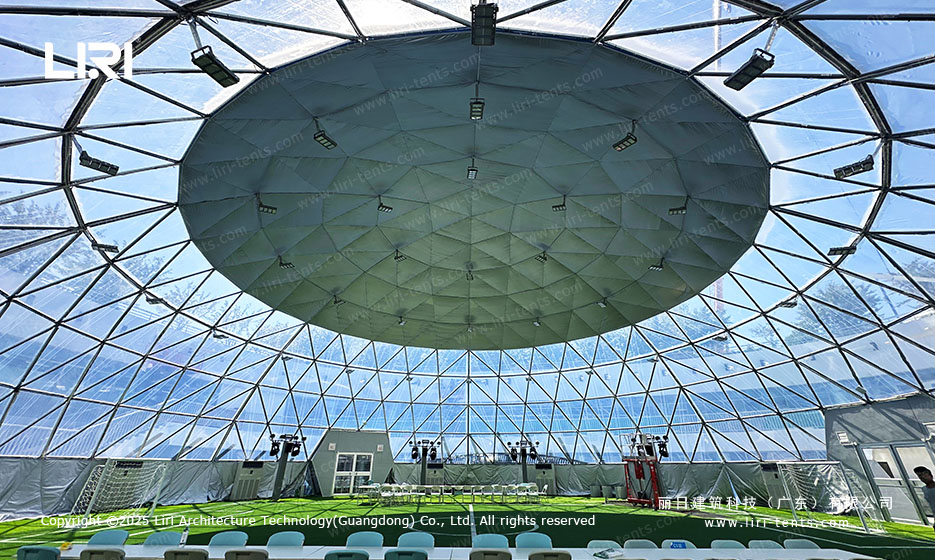

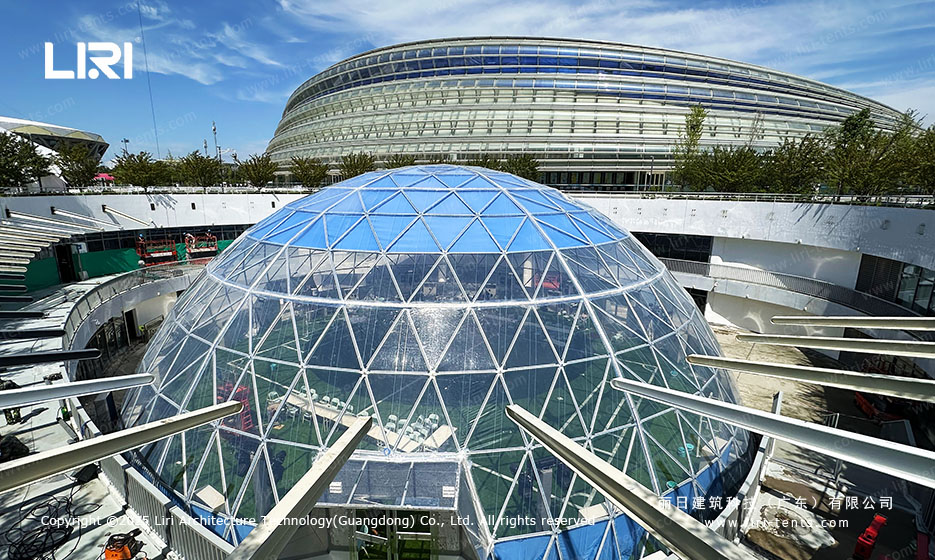

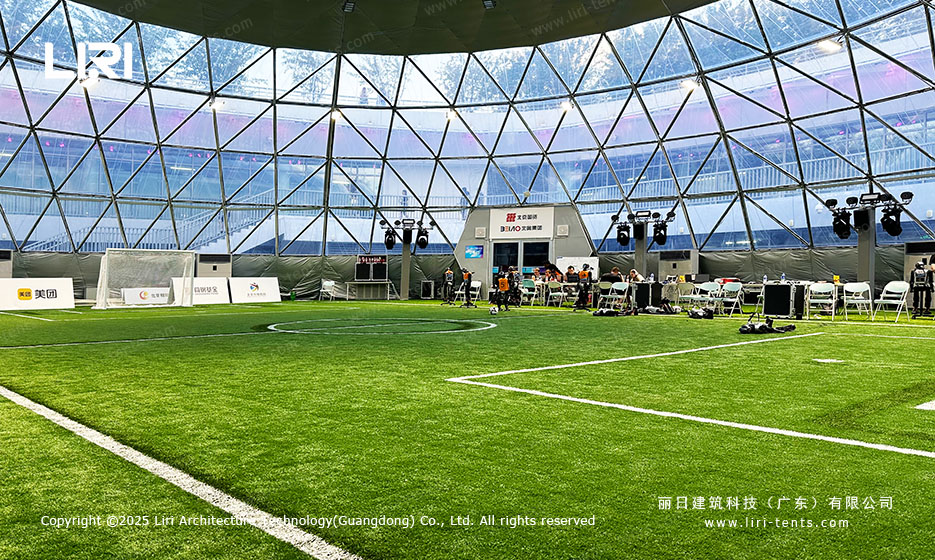

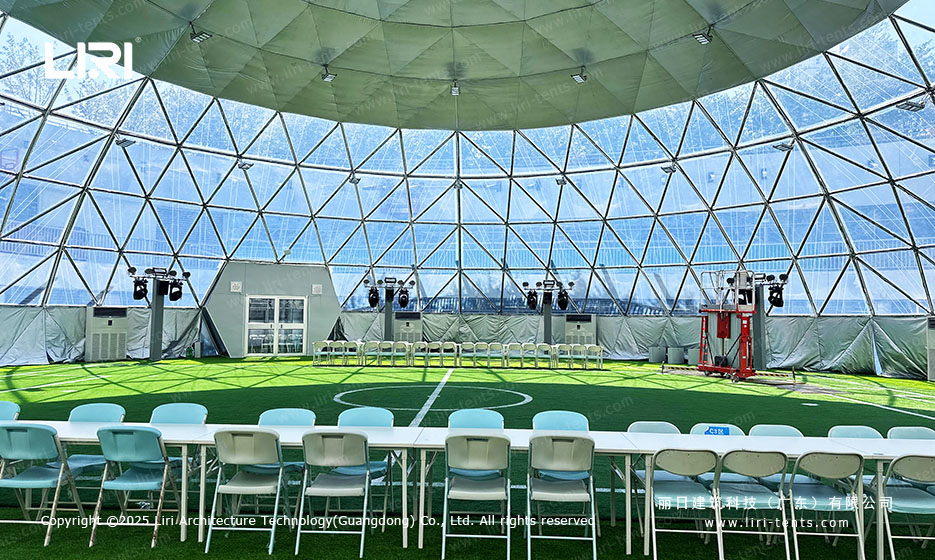

Liri has built three humanoid robot competition and training bases for The 2025 World Humanoid Robot Games. The core venue, “Panda Eye”, is particularly eye-catching. Nearly 35 meters in diameter, it is hemispherical, featuring a blue exterior and silver interior membrane structure. Its iconic “eyeball” shape exudes a sense of technology. When illuminated at night, it resembles a technological panda gazing into the future, a major attraction at the event venue. Its mesh galvanized steel tube frame and highly transparent ETFE membrane material meet the requirements of a semi-permanent structure while achieving ultra-high light transmittance, flooding the venue with natural light.

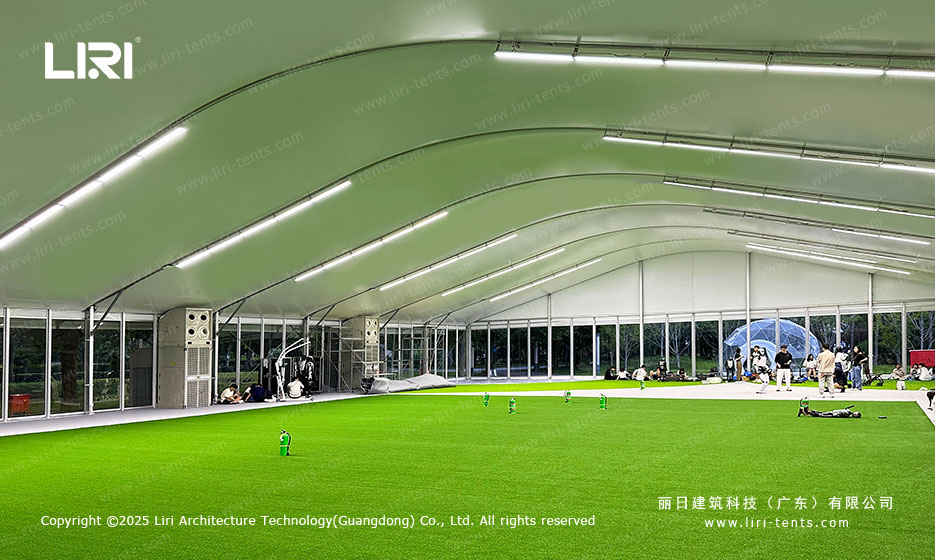

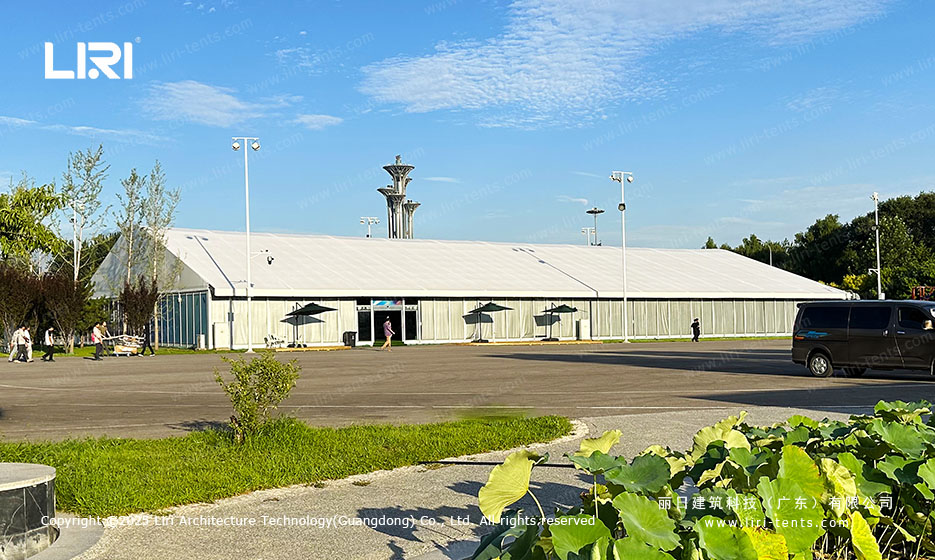

The other two competition and training bases also have their own characteristics. One is a 1,800-square-meter dome roof training hall and the other one is a 1,000-square-meter comprehensive venue. The column-free design makes the space open and flexible, and the training units can be flexibly divided according to the needs of different events, fully meeting the diverse training requirements. The venue uses transparent curtain walls to introduce natural light, which is energy-saving and environmentally friendly while providing a good visual experience. In terms of performance, they are also outstanding. The high-strength aluminum alloy frame can withstand the wind up to 120km/h, ensuring that the venue remains stable and safe in severe weather. The intelligent environmental control system can accurately control the temperature, humidity and air quality in the venue, so that it is always in the best condition, effectively protecting the storage and display of electronic equipment.

Liri not only provides a stable and professional competition and training environment for robots, but also redefines the standard of temporary buildings with the power of technology, sets a new benchmark for the prefabricated structure industry in the field of electronic equipment, and demonstrates the powerful strength of “Made in China” to the world.

DiameterCeiling HeightFloor AreaVolumeStruts Details
3m2.3m
7.1m²12.7m³20mm
4m2.89m12.6m²28m³20mm
5m2.93m19.6m²41m³20mm
6m3.52m28.3m²70m³20mm
7m4.1m38.5m²110m³26mm
8m4m50.2m²134m³26mm
9m4.5m63.6m²191m³26mm
10m5m78.5m²262m³26mm
11m5.5m95m²348m³26mm
12m6m113m²452m³33mm
13m5.82m132.7m²545m³33mm
14m6.27m153.9m²685m³33mm
15m
6.72m176.6m²845m³33mm
16m7.16m201m²1030m³33mm
17m8.5m226.9m²1285m³33mm
18m9m254.3m²1525m³33mm
19m9.5m283.4m²1795m³33mm
20m10m314m²2090m³38mm
21m10.5m346.2m²2420m³38mm
22m
11m379.9m²2785m³38mm
23m11.5m415.3m²3180m³38mm
24m12m452.2m²3615m³38mm
25m12.5m490.6m²4090m³48mm
30m13m706.5m²5744m³48mm
35m14m961m²8170m³48mm
40m15m1256m²11191m³51mm
45m18m1589.6m²17367m³48mm
50m20m1962.5m²
23823m³48mm
55m22m2374.6m²21710m³48mm
60m25m2826.0m²43524m³51mm
Feature

Frame struts: hard pressed extruded aluminum 6061/T6(15HW)

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear resistant, self-cleaning ability, etc

Connector: strong hot-dip galvanized steel

Allowed temperature condition: -30 degree Celsius +70 degree Celsius

Wind load: max. 100km/h

Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)

Easy to assemble and disassemble

No pole inside, 100% available interior space
