Sports Tent for Tennis Court Cover Roof

Tennis Court Cover Roof Structures

About The Project

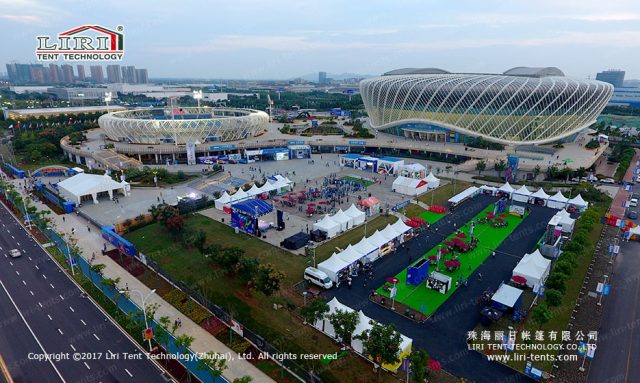

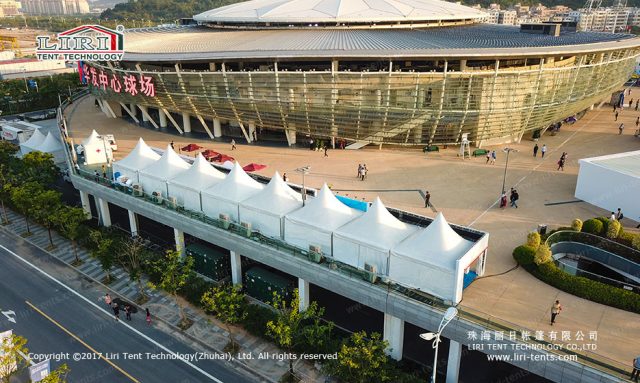

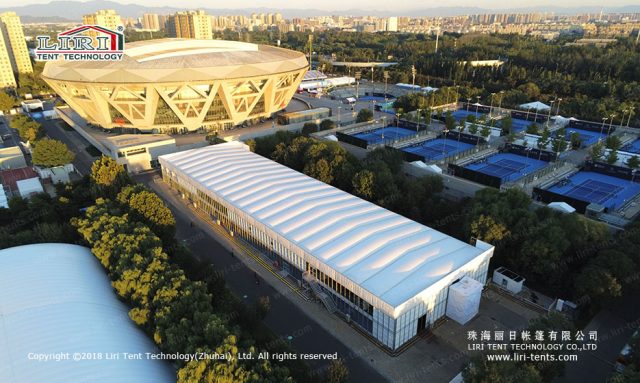

Tennis, as elegant sports, is very popular all over the world, called the world’s second largest ball games. The Grand Slam Tennis is the world’s most important annual tennis tournament. Liri Tent offered various series sports event tents for many famous sports competitions in China, including China Open, WUHAN Open, and WTA Elite Trophy.

With the tennis spread out in our country, our exercising passion is higher and higher. Most of the tennis courts are located in middle and large cities, very rare outdoor courts, most importantly is the fixed court that requires large labor, source and financial support, but the temporary and movable tennis court well solve these issues and meet different requirement.

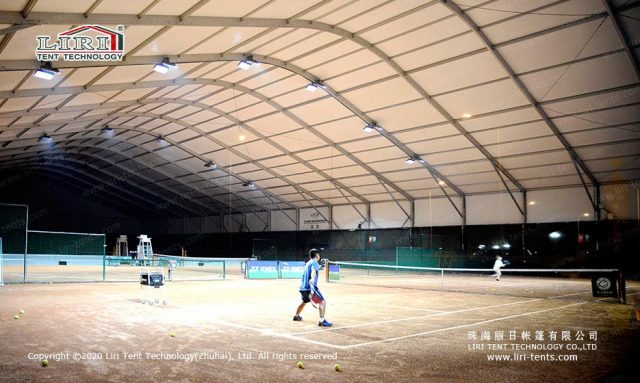

Liri movable indoor sports tent for tennis court use high pressed aluminum frame, which is economical, flexible, safe and environmental protective, building and construction time is short, easy to set up and disassemble, also recyclable. Our PVC- coated polyester fabric, is waterproof, flame retardant, UV resistant, wind resistant, which can be used in most weather and treated against deterioration due to rot and mildew, make sure every sports event in the sports tent for can be held smoothly in any season.

Liri supply various accessories, like the lighting, air conditioning and other items for sports tent for tennis court, customized service consult for different requirement of sports tent for the tennis court is welcome.

Sports Event Tent Series Specifications
Span WhidthEave HeightRidge HeightBay DistanceMain Profile
12m3.87m6.93m5m204x120x4mm (4 - channel)
15m3.87m8m5m204x120x4mm (4 - channel)
20m3.89m8.98m5m256x121x5mm (4 - channel)
25m3.89m10m5m256x121x5mm (4 - channel)
30m3.89m11.2m5m300x120x5mm (4 - channel)
40m3.89m13.5m5m300x120x5mm (4 - channel)
Feature

Frame struts: hard pressed extruded aluminum 6061/T6(15HW).

Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

Connector: strong hot-dip galvanized steel

Allowed temperature condition: -30 degree Celsius +70 degree Celsius

Wind load: max. 100km/h (can be reinforced)

Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)

Easy to be assembled and dismantled, movable.

No pole inside, 100% available interior space.
