Sports Event Tent From Liri For 2015-2017 WTA ELITE TROPHY

About The Project

WTA ELITE TROPHY ZHUHAI was opened in Henning Tennis Center on 31st October 2017. Such as China Open and WUHAN Open, it is also one of the biggest tennis events in the world. As one of the fastest meets, it has attracted thousands of famous and new athletes from different countries. The competition is fierce.

Liri Tent has been the exclusive tent supplier for this event since 2005. Not only the tents but also full professional installation services.

All the tents were well designed and customized, so as to build the most fantastic sports event in the world.

Liri Tent provided different sizes and types of tents for this event, but the most attractive was the Modular Tents for VIP rooms and Half Dome Tents for Food Festival.

A Shape Tents and High Peak Tents were used for Security Check, VIP Room, Ticket Office, Show Room, Rest Room etc.

Liri Tent has provided a nice place for all athletes and audiences to enjoy the event.

In the past few years, Liri Tent together with WTA ELITE TROPHY, witnessed the development of WTA ELITE TROPHY ZHUHAI. Quality is our core value. Liri Tent will keep providing high quality tents and services for all the sports events in the world.

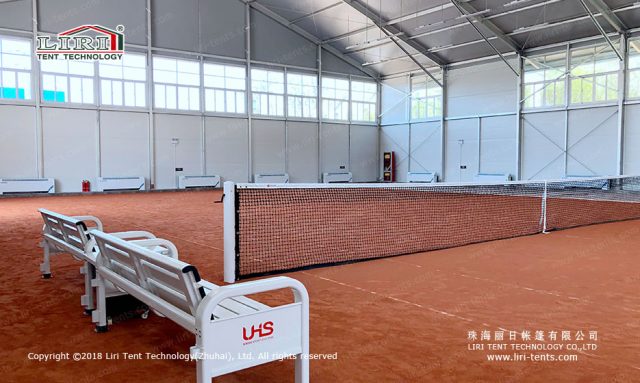

More Applications of Liri Tents in Tennis Items
Sports Event Tent Series Specifications
Span Width Eave Height Ridge Height Bay Distance Main Profile
3m 2.6m 3.16m 3m 100x48x3mm (4 – channel)
4m 2.6m 3.35m 3m 100x48x3mm (4 – channel)
5m 2.6m 3.52m 3m 100x48x3mm (4 – channel)
6m 2.6m 3.71m 3m 100x48x3mm (4 – channel)
8m 2.6m 4.05m 3m 100x48x3mm (4 – channel)
9m 2.6m 4.24m 3m 100x48x3mm (4 – channel)
10m 2.6m 4.40m 3m 100x48x3mm (4 – channel)
12m 2.6m 4.76m 3m 100x48x3mm (4 – channel)

Frame struts: hard pressed extruded aluminum 6061/T6(15HW).

Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

Connector: strong hot-dip galvanized steel

Allowed temperature condition: -30 degree Celsius +70 degree Celsius

Wind load: max. 100km/h (can be reinforced)

Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)

Easy to be assembled and dismantled, movable.

No pole inside, 100% available interior space.
