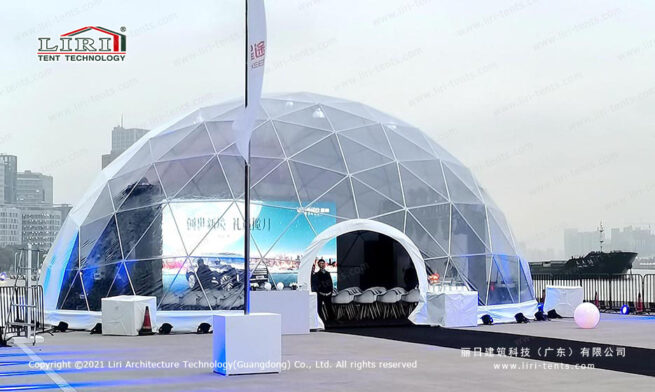

PVC Geodesic Dome Tent

PVC Geodesic Dome Tent from LIRI is available on span width 3m to 60m, which can be applied on the different scale of activities.

  1. General Details

    PVC geodesic dome tent is our most popular tents. Over the years, geodesic dome tents have been popular in the domestic market for many types of projects such as large-scale exhibitions, music festivals, parties and other activities. Therefore, LIRI Tent takes high-tech on R&D innovation and optimization of each geodesic dome tent.

    PVC geodesic dome tent from LIRI is available on span width 3m to 60m, which can be applied on the different scale of activities. Besides, LIRI can offer different design for tent rooftop. Nowadays, Liri Tent has designed 5 membrane options for our clients:

    Transparent front: white, opaque PVC fabric with detachable, exchangeable clear, transparent front part, our most versatile solution.

    Blackout: white, opaque PVC fabric with detachable, exchangeable white, opaque front part, ideal for darkening out the interior.

    Transparent membrane: Completely transparent PVC cover, ideal for night events, giving you the possibility to create magical light effects.

    Branded membrane: Fully color printed fabric or printed detachable front part, ideal to put your brand’s message across.

    Open dome: a unique 2-in-1 solution that combines the classic geodesic dome structure with a completely innovative mobile stage system.

    Opaque PVC fabric can be replaced with non-opaque, single layer cover, which is perfect to create lighting effects visible from outdoor.

    PVC geodesic dome tent is made of high-strength Q235 steel pipe, with a solid design, removable and reusable. The appearance is stylish but not obvious, giving a sense of understated simplicity. Tent structure is anti-UV, rot proof, moldy proof, anti-aging, wind loading, waterproof and flame-retardant. They all have relevant certificates. Thanks for foldable PVC fabric and disassemble framework, the volume is small and easy to transport and store. If you are interested in our products and want to know more, please contact us directly.

  2. Product Specification
    DiameterCeiling HeightFloor AreaVolumeSteel frameworkMembrane
    3m2.3m
    7.1m²10.7m³214kg / 0.7x0.4x0.25m19kg / 1.0x1.0x0.1m
    4m2.38m12.6m²21.5m³220kg / 0.95x0.4x0.2m29kg / 1.0x1.0x0.1m
    5m2.9m19.6m²32.7m³338kg / 1.1x0.5x0.3m46kg / 1.0x1.0x0.2m
    6m3m28.3m²56.5m³460kg / 1.1x0.7x0.6m55kg / 1.2x1.0x0.3m
    7m3.5m38.5m²90m³526kg / 1.2x0.7x0.6m74kg / 1.2x1.0x0.4m
    8m4m50.2m²134m³530kg / 1.4x0.7x0.6m94kg / 1.3x1.0x0.4m
    9m4.5m63.6m²191m³660kg / 1.5x0.7x0.6m121kg / 1.5x1.5x0.35m
    10m5m78.5m²262m³720kg / 1.7x0.7x0.8m150kg / 1.5x1.0x0.35m
    11m5.5m95m²348m³780kg / 1.9x0.7x0.9m180kg / 1.6x1.1x0.4m
    12m6m113m²452m³1240kg / 2.0x0.7x1.0m220kg / 1.6x1.2x0.4m
    13m5.82132.7m²545m³1520kg / 1.9x0.8x1.0m220kg / 1.6x1.2x0.5m
    14m6.27m153.9m²685m³1800kg / 2.0x0.8x1.0m264kg / 1.6x1.2x0.5m
    15m
    6.72m176.6m²845m³1910kg / 2.1x0.8x1.0m220kg / 1.6x1.2x0.6m
    16m7.16m201m²1030m³2020kg / 2.2x0.8x1.0m346kg / 1.6x1.2x0.7m
    17m8.5m226.9m²1285m³2810kg / 2x(2.0x0.7x0.7)m430kg / 2x(1.3x1.0x0.5)m
    18m9m254.3m²1525m³2950kg / 3x(2.0x0.6x0.7)m480kg / 4x(1.4x0.7x0.5)m
    19m9.5m283.4m²1795m³3090kg / 3x(2.0x0.6x0.7)m530kg / 4(1.4x0.7x0.5)m
    20m10m314m²2090m³3840kg / 4x(2.3x0.7x0.5)m595kg / 4x(1.5x0.7x0.6)m
    21m10.5m346.2m²2420m³4000kg / 4x(2.4x0.7x0.5)m650kg / 4x(1.5x0.7x0.6)m
    22m
    11m379.9m²2785m³4170kg / 4x(2.5x0.7x0.6)m715kg / 4x(1.5x0.7x0.7)m
    23m11.5m415.3m²3180m³3460kg / 4x(2.6x0.7x0.5)m780kg / 4x(1.5x0.6x0.7)m
    24m12m452.2m²3615m³4510kg / 5x(2.7x0.6x0.6)m850kg / 4x(1.5x0.8x0.8)m
    25m12.5m490.6m²4090m³7000kg / 8x(3.0x0.6x0.4)m925kg / 5x(1.5x0.7x0.7)m
    30m13m706.5m²5744m³8970kg / 8x(3.2x0.6x0.6)m
    1320kg / 6x(1.3x0.6x0.7)m
    35m14m961m²8170m³10400kg / 3x(3.3x1.0x1.0)m1475kg / 6x(1.3x0.8x0.8)m
    40m15m1256m²11191m³11820kg / 8x(3.5x1.0x1.0)m1840kg / 6x(1.3x0.9x0.9)m
    45m18m1589.6m²17367m³17000kg / 6x(2.9x1.0x1.0)m2250kg / 6x(1.3x1.0x1.0)m
    50m20m1962.5m²
    23823m³28000kg / 13x(2.5x1.0x1.0)m2770kg / 8x(1.3x1.0x1.0)m
    55m22m2374.6m²21710m³38000kg / 18x(2.3x1.0x1.0)m3600kg / 8x(1.3x1.0x1.0)m
    60m25m2826.0m²43524m³48000kg / 26x(2.2x1.0x1.0)m4200kg / 8x(1.3x1.0x1.0)m
  3. Technical Data
