Geodesic Dome Projection

Geodesic dome projection of LIRI is suitable for a movie theater, museum, planetarium and some high-end events of commerce, exhibition, show, culture.

  1. General Details

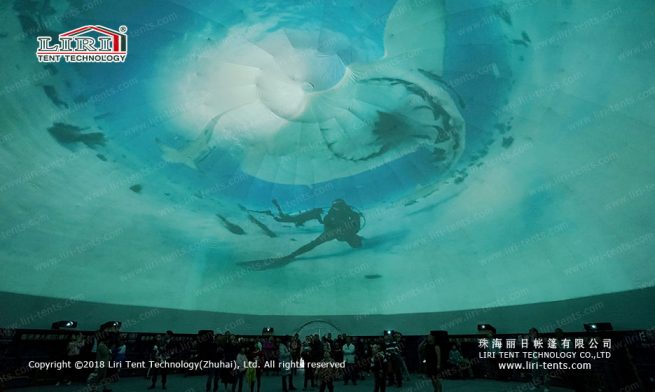

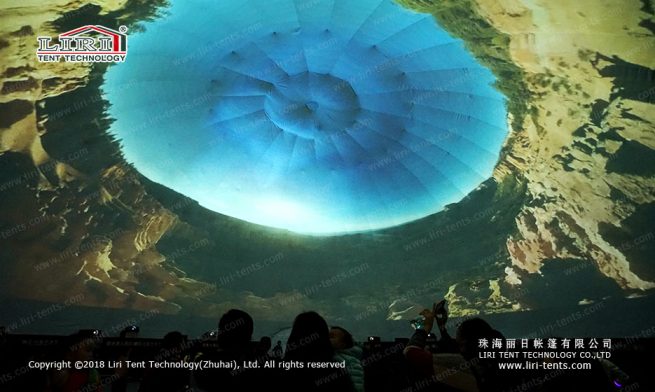

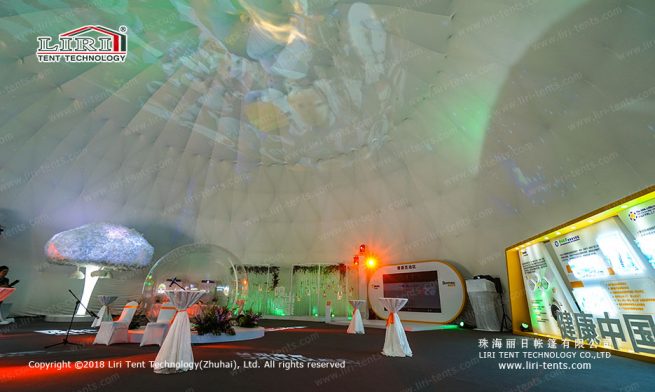

    We made various geodesic dome tents recent years, and we keep trying to get more holistic experience except normal wall covers, flooring, lighting and ventilated assorted device. We always used PVC coated fabric with good shading effect and now we provide geodesic dome projection system for higher class space audio-visual effect. This projection system can project panorama image through Light projection and 360°panorama projection, after surround sound, people can perceive what on projection. Strong visual impact make audiences to get more information and give you a feeling of actually being there

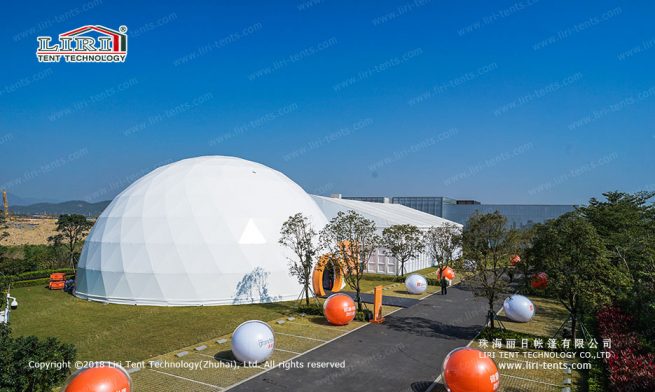

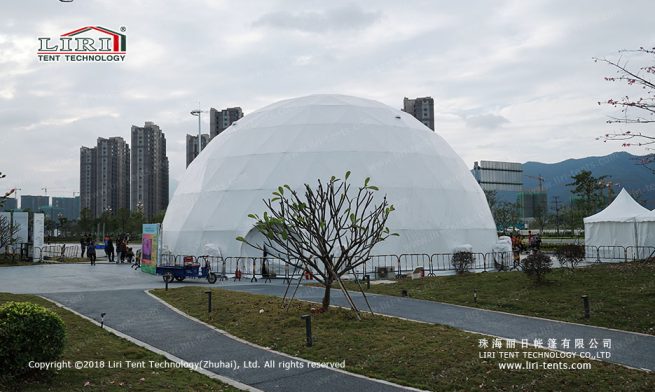

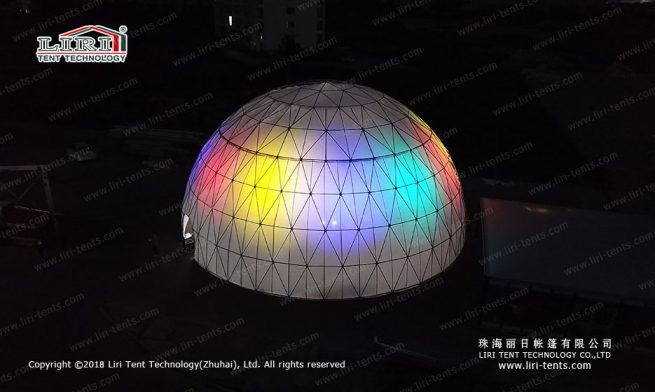

    Geodesic dome projection tents adopt latticed shell structure design, and every grid is a stable triangle. Structure frames are small which are good for transportation and disassembly and storage. In order to increase the usable area of geodesic dome projection. LIRI upgrades technology for geodesic dome structure. Last year we just made 60m diameter huge geodesic dome tent with 25m height and 2826 sqm projected area. It has 43524 CBM volume of space. LIRI has the very rigorous working attitude for safety and practicability. That’s why we did installation testing for 60m geodesic dome structure many times to insure safety and stability.

    Geodesic dome projection of LIRI is suitable for a movie theater, museum, planetarium and some high-end events of commerce, exhibition, show, culture.

  2. Product Specification
    DiameterCeiling HeightFloor AreaVolumeSteel frameworkMembrane
    3m2.3m
    7.1m²10.7m³214kg / 0.7x0.4x0.25m19kg / 1.0x1.0x0.1m
    4m2.38m12.6m²21.5m³220kg / 0.95x0.4x0.2m29kg / 1.0x1.0x0.1m
    5m2.9m19.6m²32.7m³338kg / 1.1x0.5x0.3m46kg / 1.0x1.0x0.2m
    6m3m28.3m²56.5m³460kg / 1.1x0.7x0.6m55kg / 1.2x1.0x0.3m
    7m3.5m38.5m²90m³526kg / 1.2x0.7x0.6m74kg / 1.2x1.0x0.4m
    8m4m50.2m²134m³530kg / 1.4x0.7x0.6m94kg / 1.3x1.0x0.4m
    9m4.5m63.6m²191m³660kg / 1.5x0.7x0.6m121kg / 1.5x1.5x0.35m
    10m5m78.5m²262m³720kg / 1.7x0.7x0.8m150kg / 1.5x1.0x0.35m
    11m5.5m95m²348m³780kg / 1.9x0.7x0.9m180kg / 1.6x1.1x0.4m
    12m6m113m²452m³1240kg / 2.0x0.7x1.0m220kg / 1.6x1.2x0.4m
    13m5.82132.7m²545m³1520kg / 1.9x0.8x1.0m220kg / 1.6x1.2x0.5m
    14m6.27m153.9m²685m³1800kg / 2.0x0.8x1.0m264kg / 1.6x1.2x0.5m
    15m
    6.72m176.6m²845m³1910kg / 2.1x0.8x1.0m220kg / 1.6x1.2x0.6m
    16m7.16m201m²1030m³2020kg / 2.2x0.8x1.0m346kg / 1.6x1.2x0.7m
    17m8.5m226.9m²1285m³2810kg / 2x(2.0x0.7x0.7)m430kg / 2x(1.3x1.0x0.5)m
    18m9m254.3m²1525m³2950kg / 3x(2.0x0.6x0.7)m480kg / 4x(1.4x0.7x0.5)m
    19m9.5m283.4m²1795m³3090kg / 3x(2.0x0.6x0.7)m530kg / 4(1.4x0.7x0.5)m
    20m10m314m²2090m³3840kg / 4x(2.3x0.7x0.5)m595kg / 4x(1.5x0.7x0.6)m
    21m10.5m346.2m²2420m³4000kg / 4x(2.4x0.7x0.5)m650kg / 4x(1.5x0.7x0.6)m
    22m
    11m379.9m²2785m³4170kg / 4x(2.5x0.7x0.6)m715kg / 4x(1.5x0.7x0.7)m
    23m11.5m415.3m²3180m³3460kg / 4x(2.6x0.7x0.5)m780kg / 4x(1.5x0.6x0.7)m
    24m12m452.2m²3615m³4510kg / 5x(2.7x0.6x0.6)m850kg / 4x(1.5x0.8x0.8)m
    25m12.5m490.6m²4090m³7000kg / 8x(3.0x0.6x0.4)m925kg / 5x(1.5x0.7x0.7)m
    30m13m706.5m²5744m³8970kg / 8x(3.2x0.6x0.6)m
    1320kg / 6x(1.3x0.6x0.7)m
    35m14m961m²8170m³10400kg / 3x(3.3x1.0x1.0)m1475kg / 6x(1.3x0.8x0.8)m
    40m15m1256m²11191m³11820kg / 8x(3.5x1.0x1.0)m1840kg / 6x(1.3x0.9x0.9)m
    45m18m1589.6m²17367m³17000kg / 6x(2.9x1.0x1.0)m2250kg / 6x(1.3x1.0x1.0)m
    50m20m1962.5m²
    23823m³28000kg / 13x(2.5x1.0x1.0)m2770kg / 8x(1.3x1.0x1.0)m
    55m22m2374.6m²21710m³38000kg / 18x(2.3x1.0x1.0)m3600kg / 8x(1.3x1.0x1.0)m
    60m25m2826.0m²43524m³48000kg / 26x(2.2x1.0x1.0)m4200kg / 8x(1.3x1.0x1.0)m
