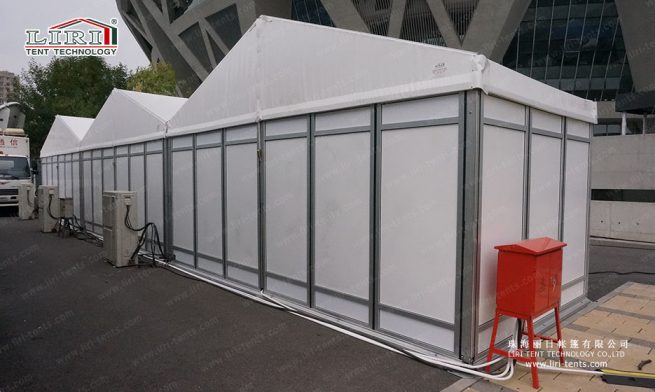

Small Tent WT Series
- General Details
The small tent WT Series are available in clear span width of 6m, 8m, 10m, and 12m. The length of the small tent WT Series has no limit and can be increased or decreased by 5m bay distance. The side height is only 2.6m and Wind Loading is 80km/hr.
Materials: Roof Covers and side walls are 850g/m2 PVC-coated polyester textile flame retardant to DIN4102 B1, M2 The PVC fabrics are available in block-out or translucent.
Frame: The components used for the upright support and roof beams) include a 4 channel 120x68x3mm hard extruded aluminum alloy.
Small tent WT Series Accessories: -Sidewalls with clear windows -Ground anchors -Weight plate -Lining -Door units -Full clear covers and sidewalls -Rain gutter system
Characteristics and Functions: -They are durable and safe and all the small tents are easy to assemble and disassemble.
This product has obtained a national patent, patent number: ZL201120397654.4
- Product Specification
Span Whidth Eave Height Ridge Height Bay Distance Main Profile 6m 2.6m 3.7m 5m 122x68x3mm (4 - channel) 8m 2.6m 4.08m 5m 122x68x3mm (4 - channel) 9m 2.6m 4.23m 5m 122x68x3mm (4 - channel) 10m 2.6m 4.4m 5m 122x68x3mm (4 - channel) 12m 2.6m 4.78m 5m 122x68x3mm (4 - channel) - 3D Drawing
- Technical Data

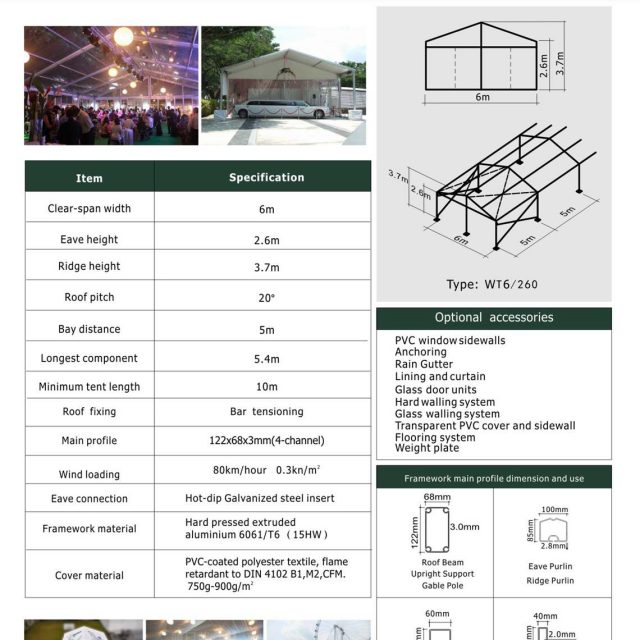

6m Span Small Tent WT
8m Span Small Tent WT

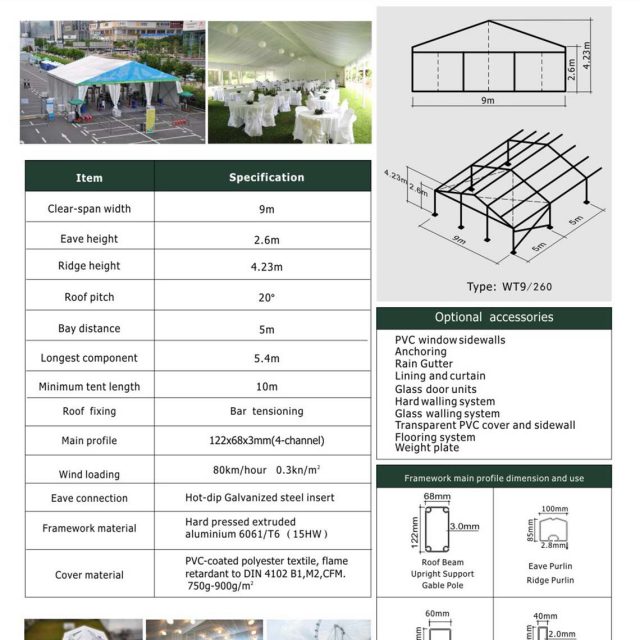

9m Span Small Tent WT

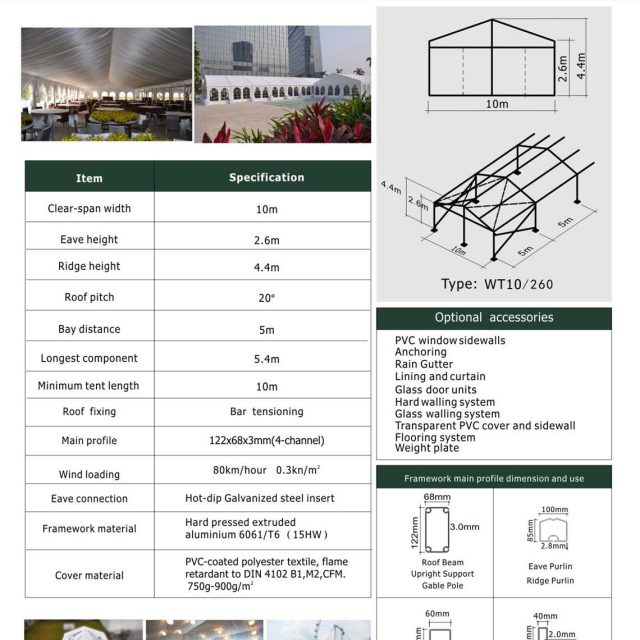

10m Span Small Tent WT

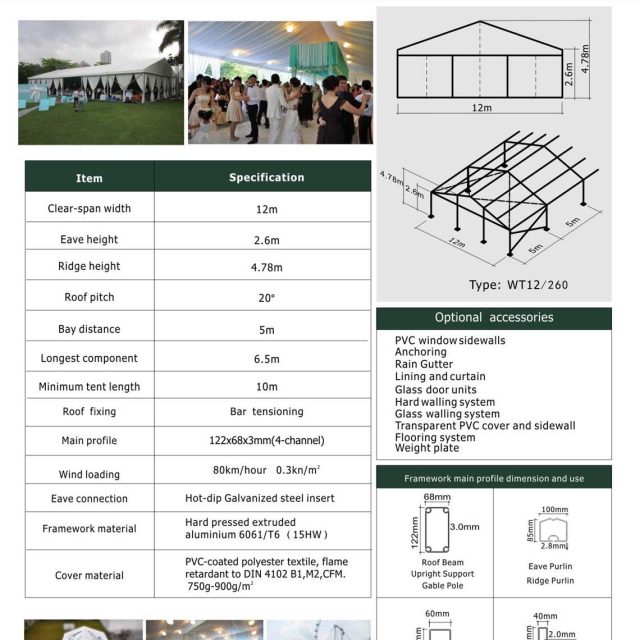

12m Span Small Tent WT
- Related Products

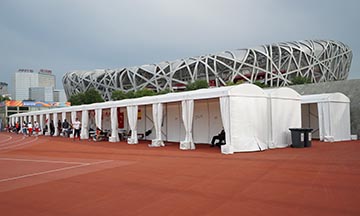

Dome Party Tent Series
