Dodecagonal Tent

There are two kinds of roof shape for the 12 sided polygon tent: diamond roof and high peak roof. The Dodecagon Tent has a side height of 4m.

Category:
  1. General Details

    There are two kinds of roof shape for the 12 sided polygon tent: diamond roof and high peak roof. The 12 sided polygon tent has a side height of 4m and is available in 30m clear-span. 12 sided polygon tent is based on the 30m span Tent Hall. It adds a high peak and 1/2 dodecagon as a bell end. The 12 sided polygon tent frame uses hard pressed extruded aluminum alloy 6061/T6. The cover uses PVC coated polyester textile (850g/sm). The structure not only has the character of length flexibility, but it also makes a unique style of a high peak and polygon. The tent can resist up to 100 km/hr. Installation and dismantles is easy in the process and short in time. It can use either as a temporary structure or a permanent building.

    This is a great breakthrough for the traditional A-shape tent: flexible in the length and unique in the high peak and multi-ends shape.

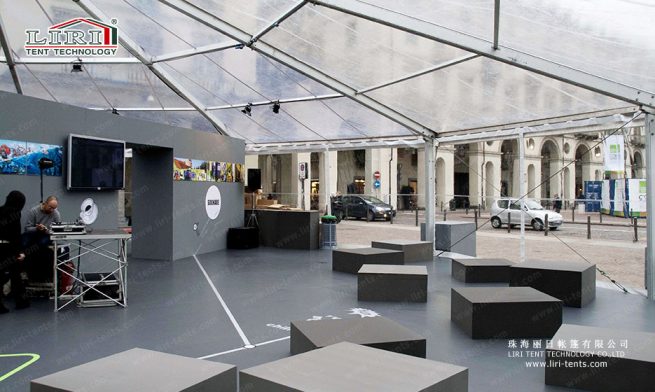

    It is suitable for all kinds of events, sports games, exhibitions, and ceremonies. It must be very eye-catching with big width clear span decorated with the unique out looking.

    The optional accessories include PVC transparent side windows, walls, and roof. Dodecagonal Tent also includes plastic walls, plastic door, ABS hard wall, ground anchor, weight plate, wood cassette flooring, lining curtains, etc.

    For more information please contact us!

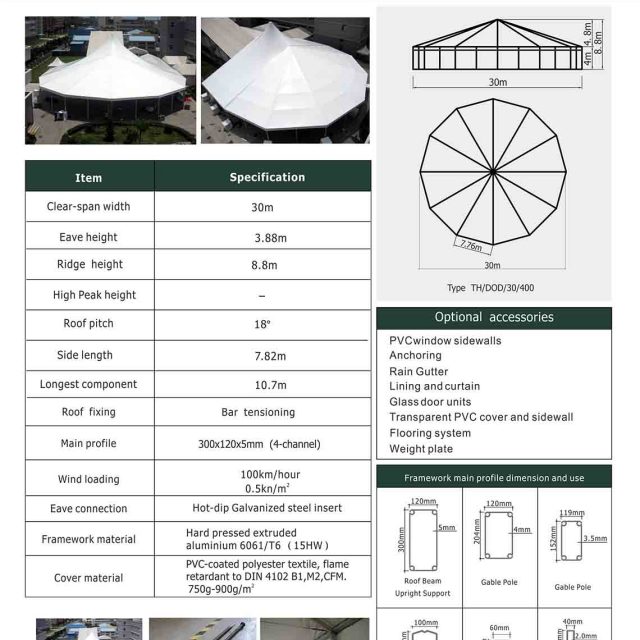

  2. Product Specification
    Span WhidthEave HeightRidge HeightSide LengthMain Profile
    30m3.88m8.8m7.76m300x120x5mm (4 - channel)
  3. 3D Drawing

    Dodecagonal Tent
