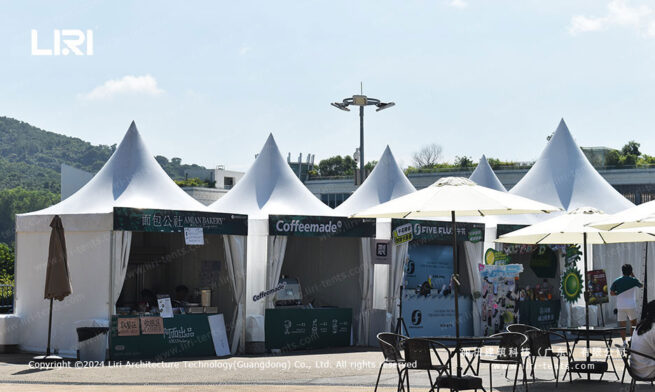

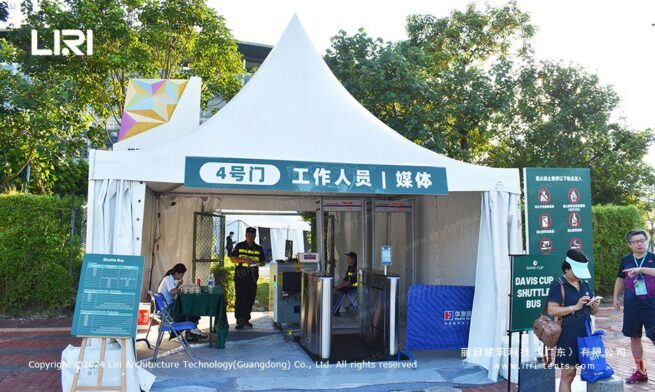

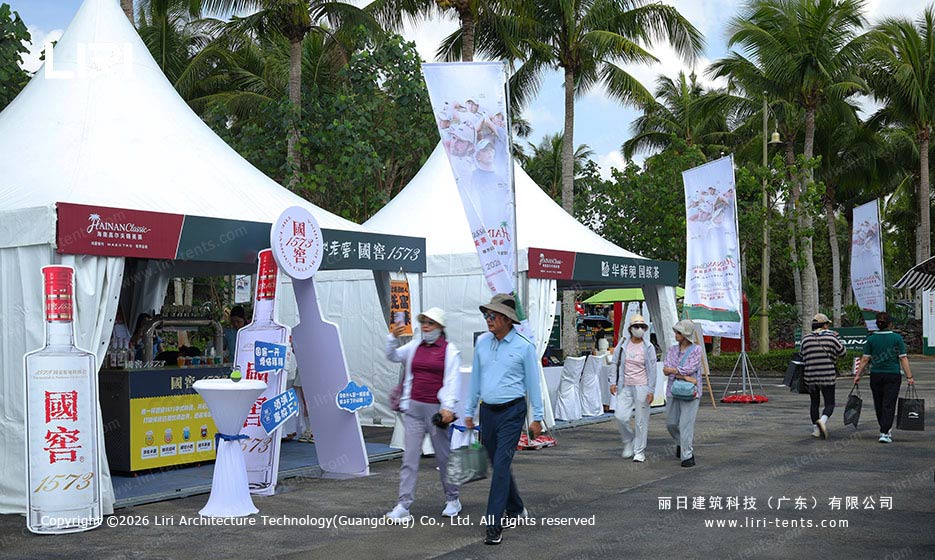

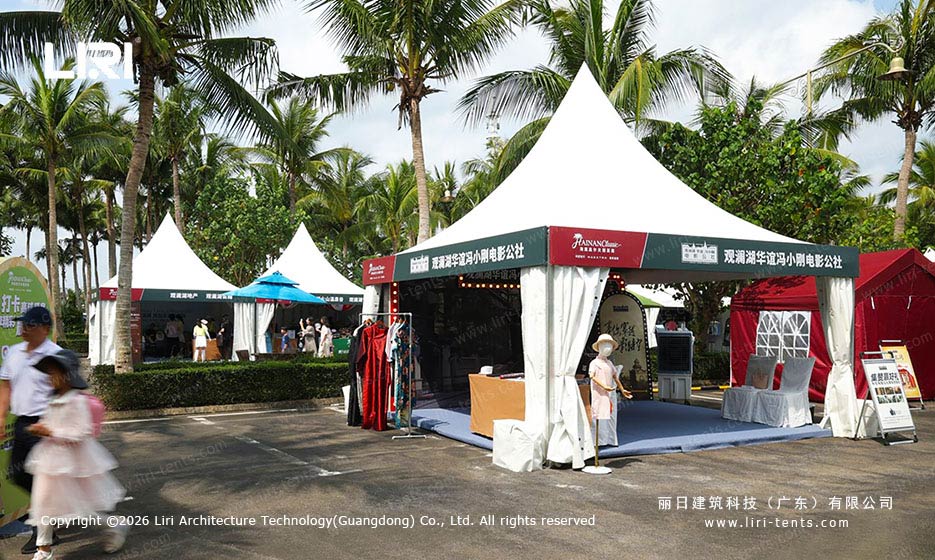

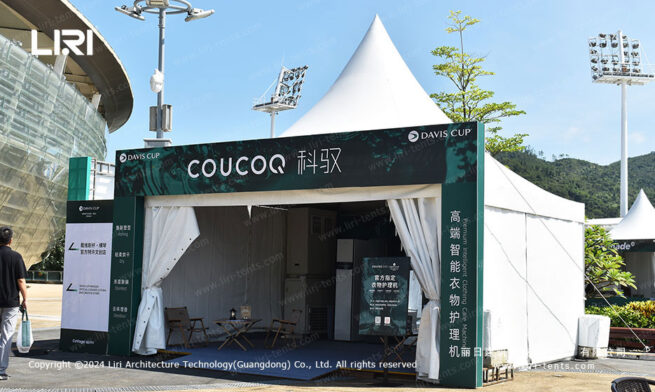

Pagoda Tent ( 3m-6m )
- General Details

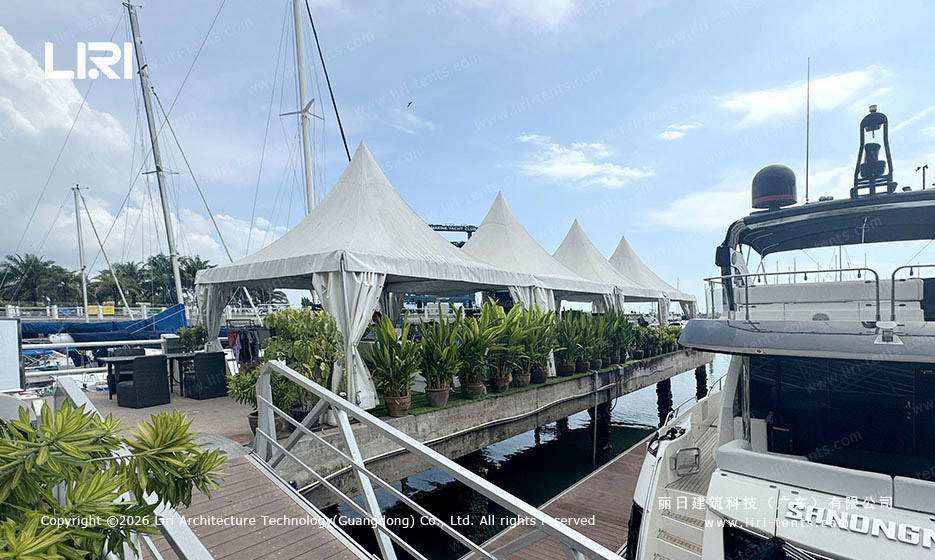

The standard Pagoda Tent series is available in 3x3m, 4x4m, 5x5m, and 6x6m. Pagoda Tent has a side height of 2.5m. This type of Pagoda tent uses a 3 channel 65x65x2.5mm aluminum alloy. The standard 8x8m and 10x10m Pagoda with a 2.6 side height use a 4 channel 122x68x3mm aluminum alloy and the wind loading is 80km/h (0.3kn/m2).
The new fixing method has got design Patents. It is a new fixing method which has massively reduced the installing time and needs no help from a big machine and can avoid sliding out. Easy to install and dismantle.
The optional accessories for the Pagoda are glass walling system, door units, flooring system, ground anchors, lining, etc. Pagoda tents can be used as a single unit or combined to enlarge space and become a special structure style with a rain gutter. Our pagoda tent can meet different levels of demand and is a more flexible choice for outdoor activities.
This product has obtained a national patent, patent number: ZL201220590888.5
For more information please contact us!
- Product Specification

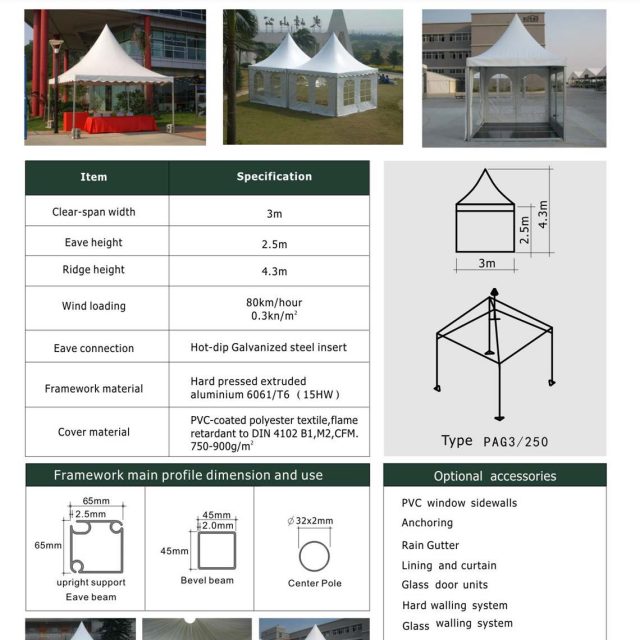

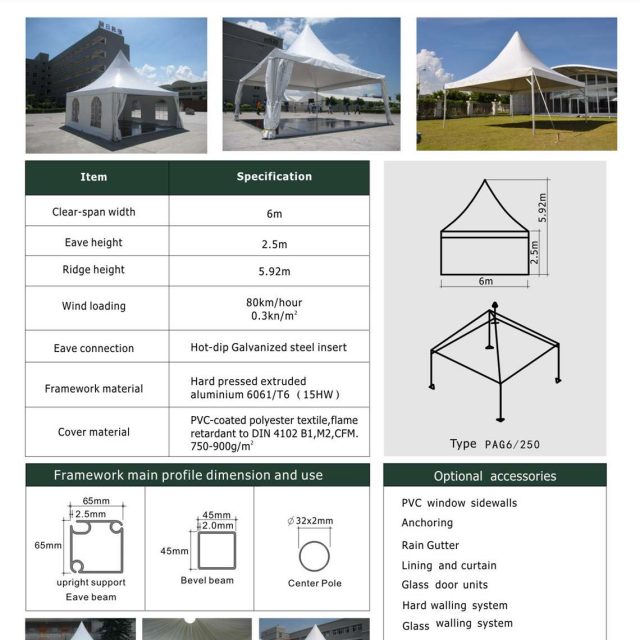

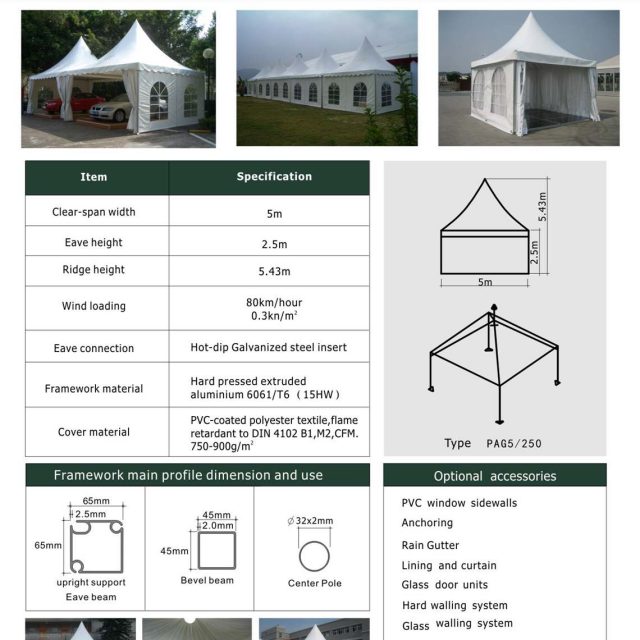

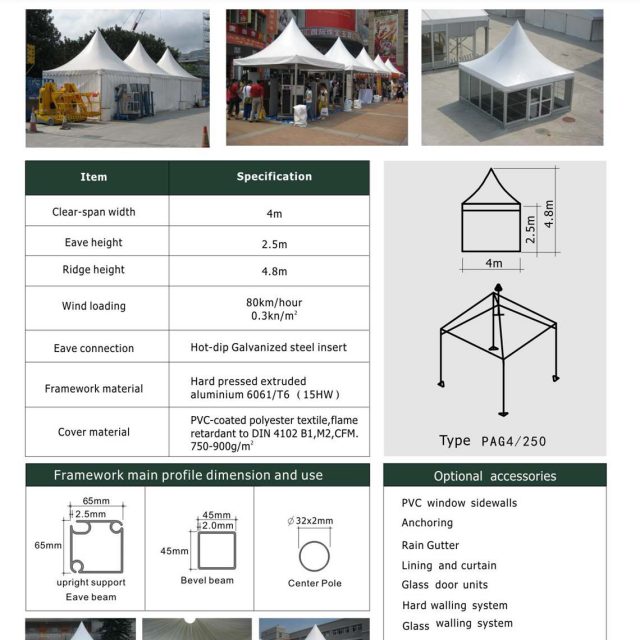

Span Whidth Eave Height Ridge Height Main Profile 3m 2.5m 4.3m 65x65x2.5mm (4 - channel) 4m 2.5m 4.8m 65x65x2.5mm (4 - channel) 5m 2.5m 5.43m 65x65x2.5mm (4 - channel) 6m 2.5m 5.92m 65x65x2.5mm (4 - channel)
- 3D Drawing
- Technical Data
