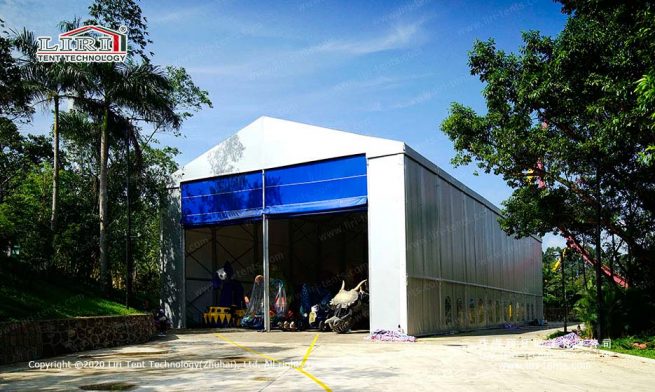

Warehouse Tents

Warehouse Tent construction does not require a permanent foundation which can be built in almost any ground ---- asphalt, concrete or grass, and so on.

Category:
  1. General Details

    Whether you need a permanent industrial applications building or when the business grows, you need temporary warehousing, Zhuhai Liri Tent can provide you the ideal solution. Our warehouse tents for the convenience of the construction enterprises short season, the venue provides a flexible distribution of flexible space, avoiding the need to increase the production of space rental, remote working, and other hidden costs. Warehouse Tent construction does not require a permanent foundation which can be built in almost any ground —- asphalt, concrete or grass, and so on. Tents in flexibility and economy are far superior to conventional steel structures, construction of buildings and do not have the required land permits trouble.Because of the basic conditions require less, the cost is also low, so its maintenance is simple and inexpensive. The most critical, Liri warehouse tents modular architecture design, integrated storage tents provide a good foundation, can according to your needs for industrial applications tailored architecture.

    Liri warehouse tents construction using German technology, in line with the International Building Code. Build up in accordance with operating specifications Liri storage tents construction, can withstand at least 80KM / h wind.The structure can choose from 3 meters to 60 meters of any span length Infinity. Tents without any load-bearing pillars inside.

    This product has obtained a national patent, patent number: ZL201120397654.4

    For more information please contact us!

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile

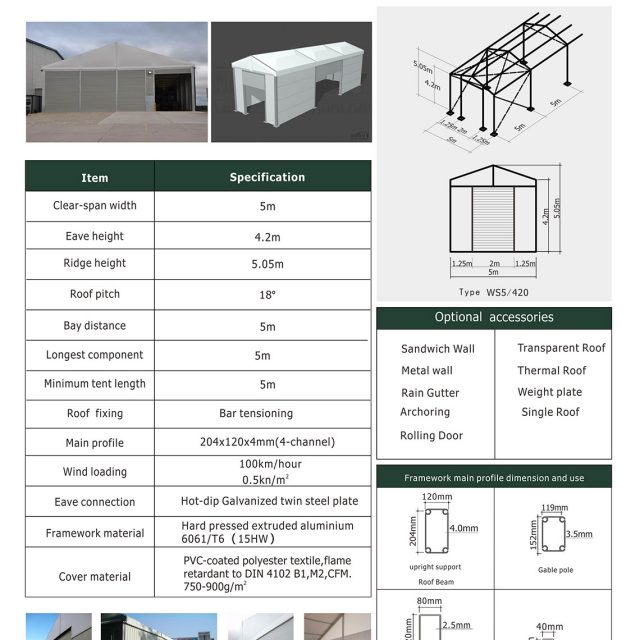

    5m4.2m5.05m5m204x120x4mm (4 - channel)

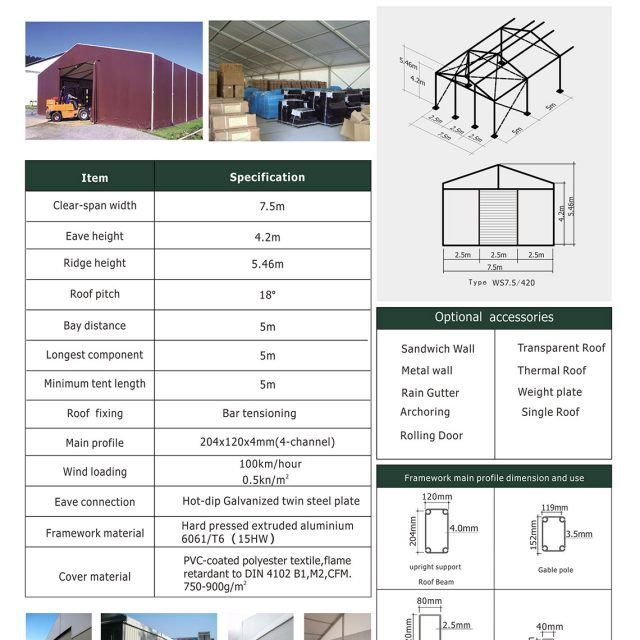

    7.5m4.2m5.46m5m204x120x4mm (4 - channel)

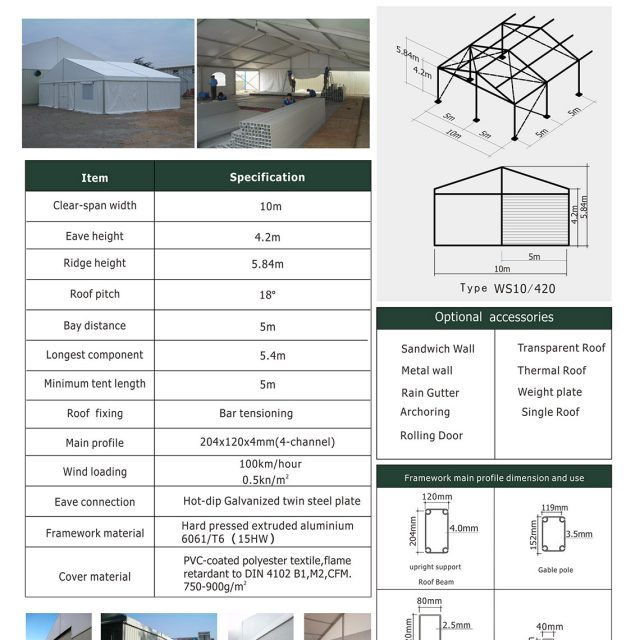

    10m4.2m5.84m5m204x120x4mm (4 - channel)

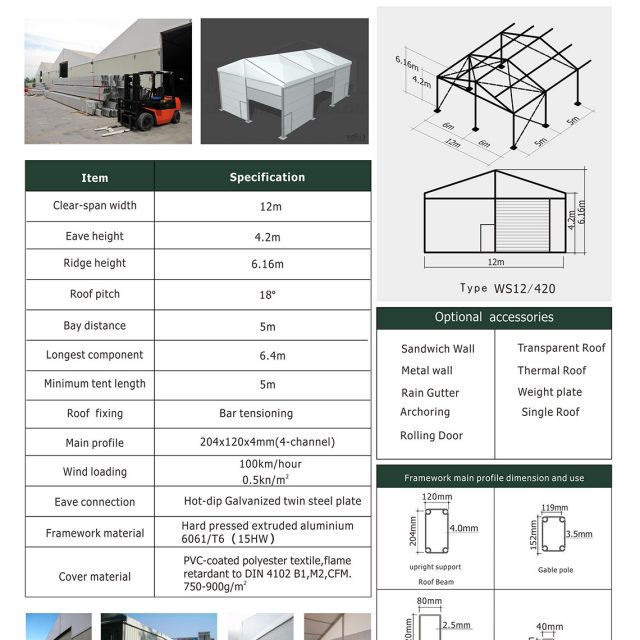

    12m4.2m6.16m5m204x120x4mm (4 - channel)

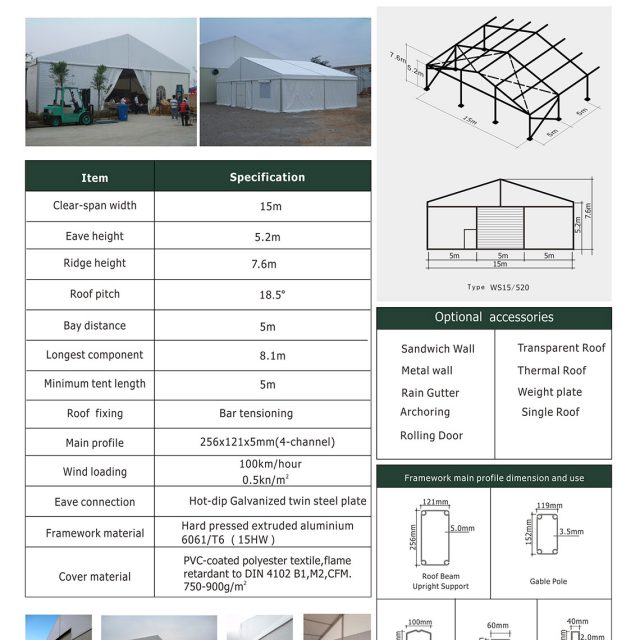

    15m5.2m7.6m5m256x121x5mm (4 - channel)

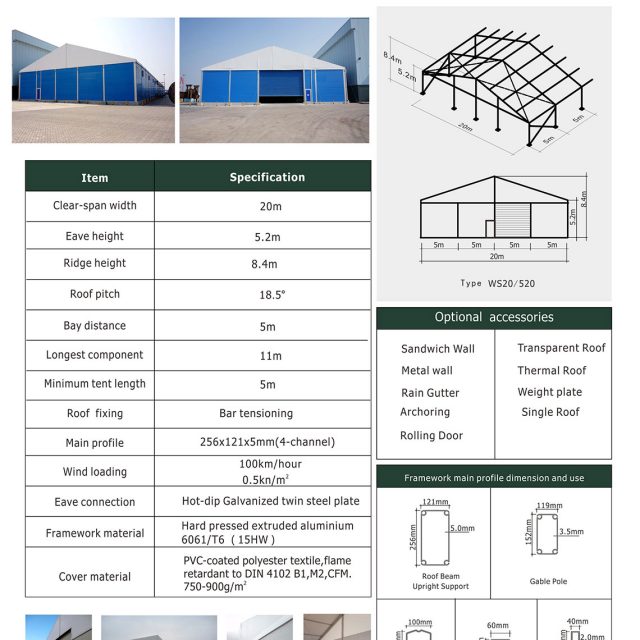

    20m5.2m8.4m5m256x121x5mm (4 - channel)

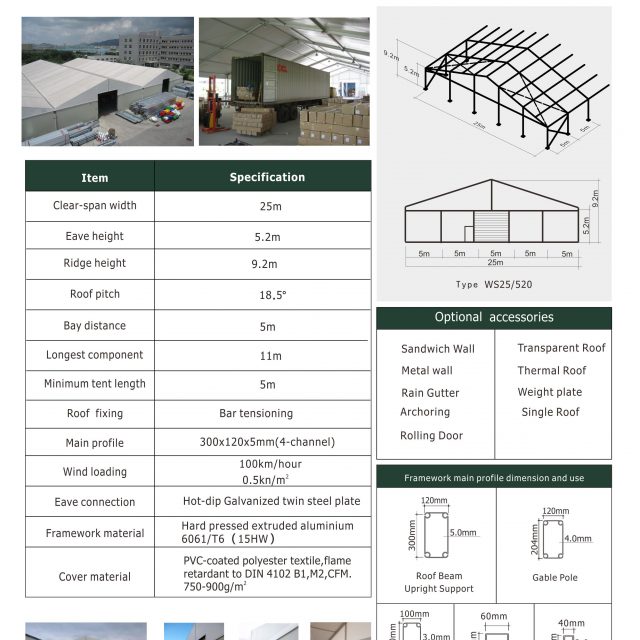

    25m5.2m9.2m5m300x120x5mm (4 - channel)

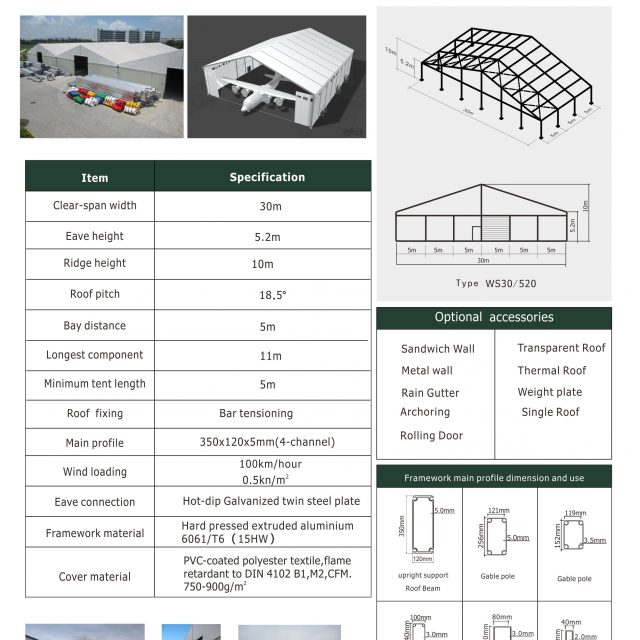

    30m5.2m10m5m350x120x5mm (4 - channel)
  3. 3D Drawing

    Warehouse Tent

  4. Technical Data
