Modular Pagoda Tent

Modular Pagoda Tent is a modular pyramid tent product developed by Liri for large-event organizers, event companies, and tent rental businesses. Featuring a modular structure and a highly versatile accessory system, it offers convenient installation and flexible configuration to meet the temporary space needs of events of varying scales.

Traditional pagoda tents are typically configured with separate flooring, wall, and door systems for each span size, resulting in low component compatibility across different specifications. Modular Pagoda Tent instead adopts a unified modular design: cassette flooring, single and double-door systems, as well as glass walls, ABS walls, and corrugated steel sheet walls, can all be interchanged across pagoda tents of different spans. A single accessory system can adapt to multiple specifications, making it easy to flexibly allocate resources according to different project requirements.

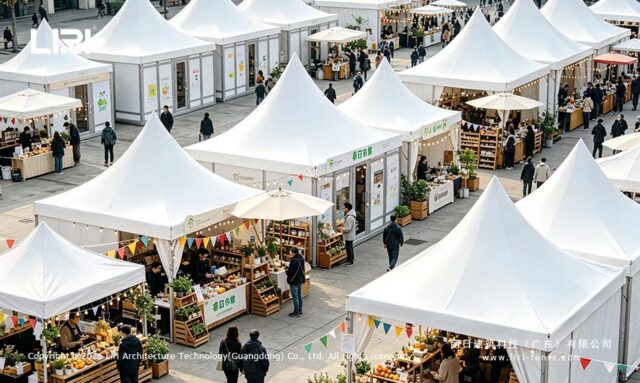

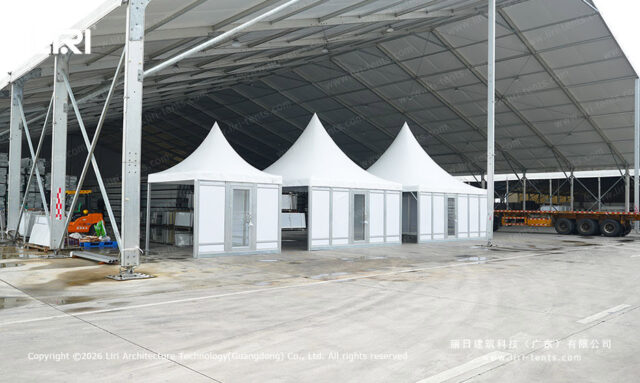

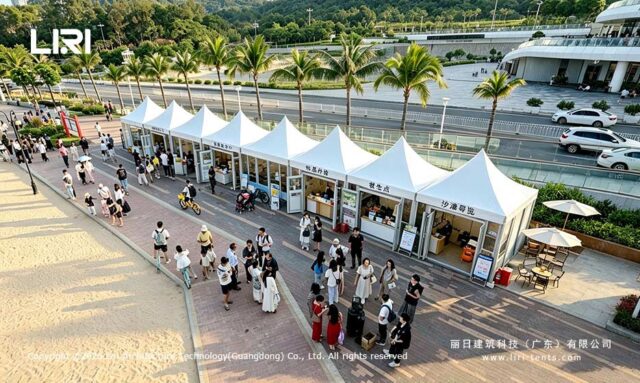

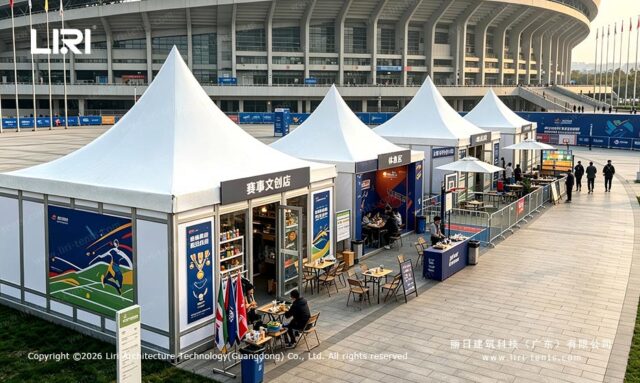

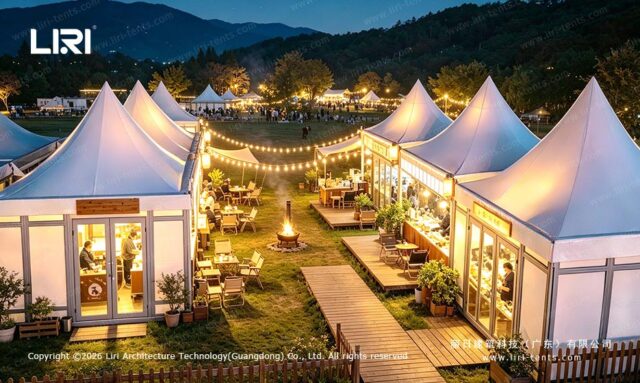

The product is available in common span sizes of 3m, 4m, 5m, 6m, 8m, and 10m, allowing flexible selection based on site area, event scale, and functional needs. Tents of different sizes can be used independently or combined according to project requirements, making them suitable for reception areas, ticketing areas, VIP zones, exhibitions and displays, brand events, catering services, and other temporary event spaces.

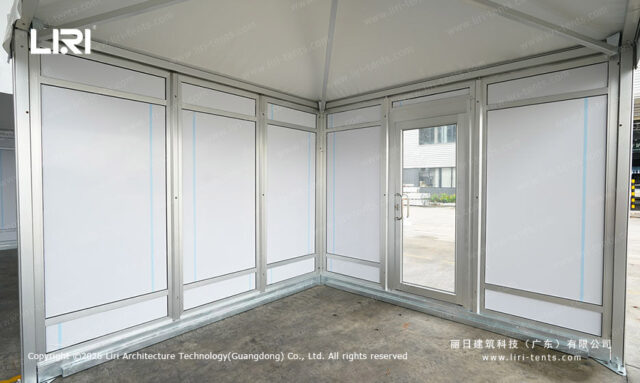

The main frame of Modular Pagoda Tent uses 78 × 78mm aluminum alloy profiles, balancing structural stability with reusability. The walls, door systems, and flooring are designed with 1-meter modular units, so accessories such as glass walls, ABS walls, corrugated steel sheet walls, glass doors, and cassette flooring are not limited to a single tent span and can be freely deployed across different specifications.

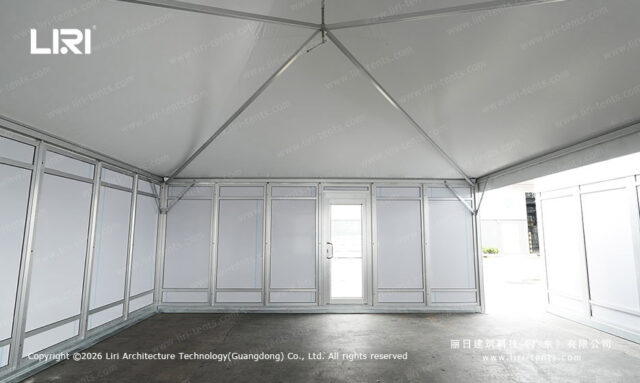

The walls use a snap-panel assembly structure, reducing the installation steps associated with traditional locking structures and making wall installation simpler and more efficient. The ground beams feature a flat design that allows direct installation of universal cassette flooring, creating a more complete and unified interior space.

The highly versatile accessory system reduces the need for specialized components across different tent sizes. For event companies and tent rental businesses, the same batch of walls, doors and flooring systems can be reused across multiple sizes of Modular Pagoda Tent, helping to improve equipment utilization, reduce repeat purchasing, and shorten on-site installation and adjustment time.

In terms of warehouse management, universal accessories also reduce the need to stock separately for each tent size. Warehouses can centrally categorize and store components such as glass walls, ABS walls,corrugated steel sheet walls, glass doors, and cassette flooring, eliminating the need to maintain a complete inventory for each individual span. This reduces inventory variety, lowers warehousing pressure, and makes equipment allocation, inventory management, and routine maintenance more convenient.

Through modular, standardized, and interchangeable accessory design, Modular Pagoda Tent integrates multiple span specifications into a unified product system. From a single small event space to multiple combined event zones, the same product and accessory system can be flexibly adjusted according to different project needs — offering event organizers, event companies, and tent rental businesses a more flexible, efficient, and manageable temporary space solution.
