Huge Tent Hall 40m-60m

  1. General Details

    Clear span widths of huge tent hall series are available in 40m, 50m, and 60m, with the mainframe profile 400x120x5mm. The huge hall structure is the modular system, and the length can be increased or decreased by 5m bay. The frame adopts hard pressed extruded aluminum 6061/T6, and cover and sidewalls adopt double PVC- coated polyester textile, which is flame retardant to European standard DIN 4102 B1, M2.

    The huge tent hall series is with various shapes and sizes, such as square, hexagonal, octagonal, decagonal, dodecagonal, and double-decker. Also full range of optional accessories are available for this big tent to make it more functional, such as clear PVC window sidewalls, ground anchors, weight plate, lining and curtain, glass walls, ABS walls, sandwich walls, glass door, sliding door, rolling door, transparent roof covers & sidewalls, flooring system, rain gutter system, half-hexagonal, octagonal, decagonal, dodecagonal for end unit, and high peak structures.

    Huge tent hall series is modular structure, so it is with short installation time, easy assembling and dismantling, small volume for transportation and storage, sturdy and durable design, and wind resistance to 100km/h. The roof covers and sidewalls are with the tensioning system; also it can be printed with logos and patterns.

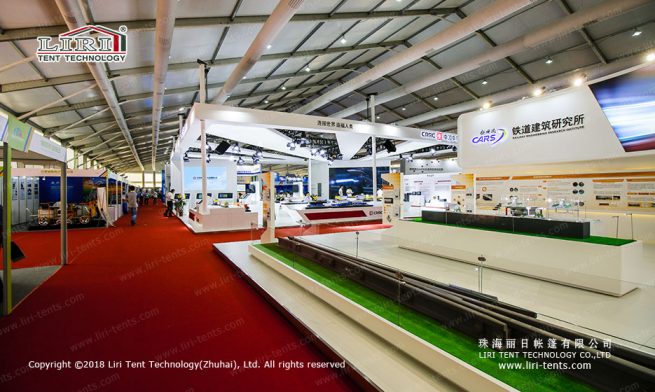

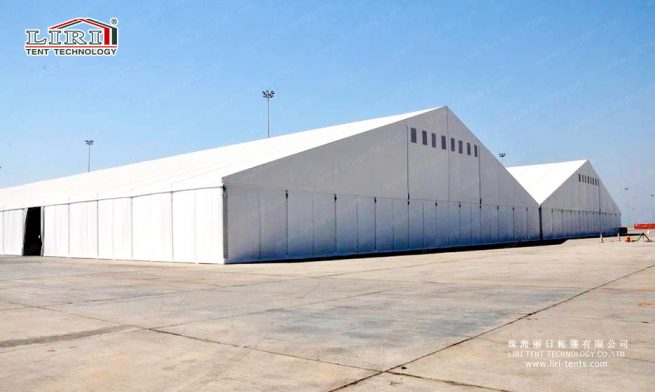

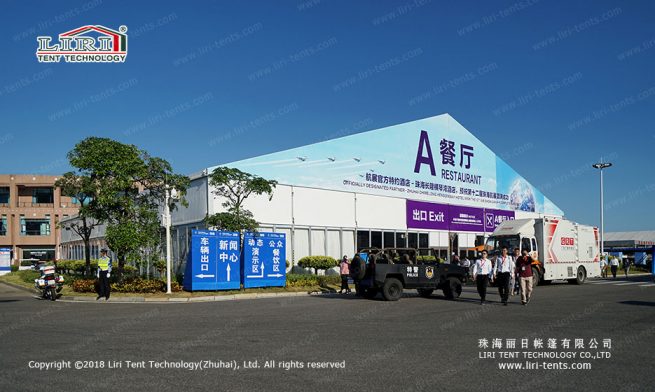

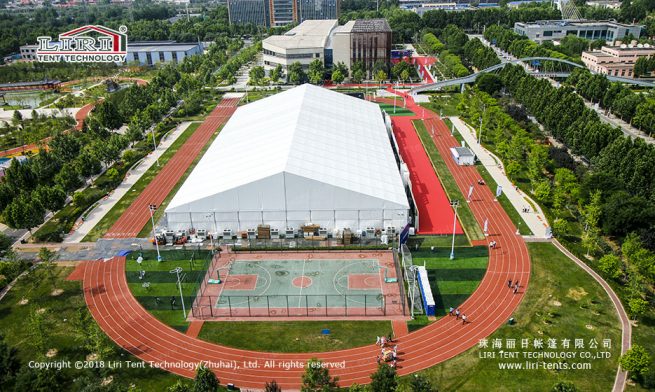

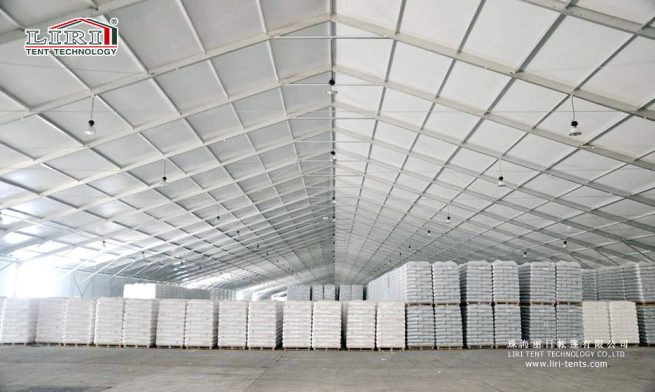

    With large clear span width, huge tent hall series is suitable for outdoor exhibition, event, storage, trade fair, opening ceremony, product promotion, conference, business promotion, celebration gathering, temporary warehouse, logistics transshipment, hangar, military command center, temporary medical and disaster relief, etc.

    This product has obtained a national patent, patent number: ZL201120397654.4
    For more information please contact us.

  2. Product Specification
    Span WhidthEave HeightRidge HeightBay DistanceMain Profile

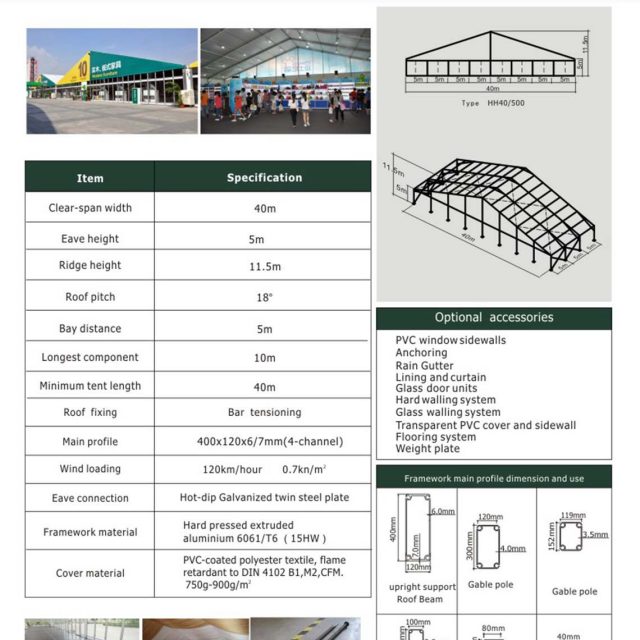

    40m5m11.5m5m400x120x6/7mm (4 - channel)

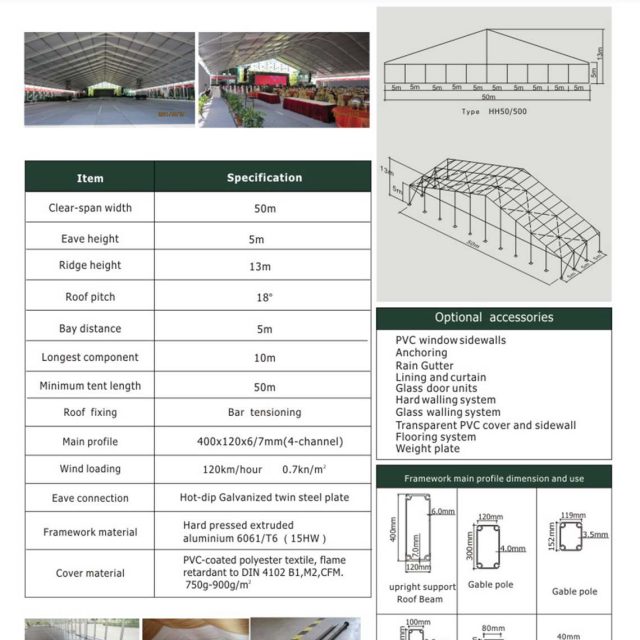

    50m5m13m5m400x120x6/7mm (4 - channel)

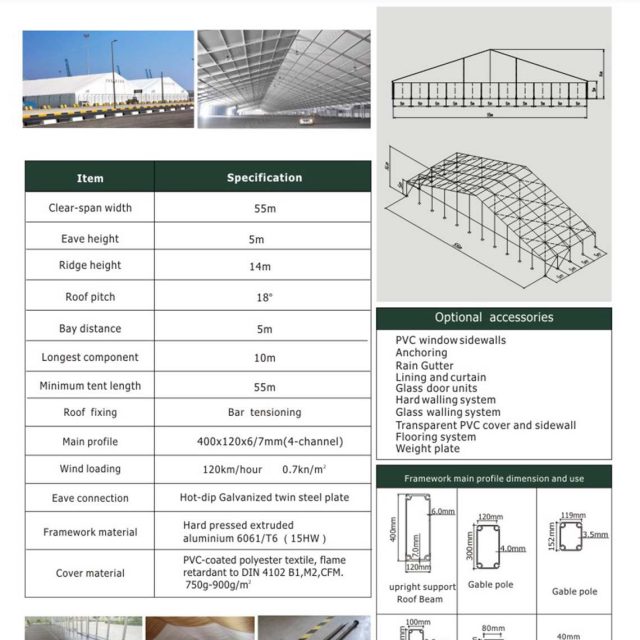

    55m5m14m5m400x120x6/7mm (4 - channel)

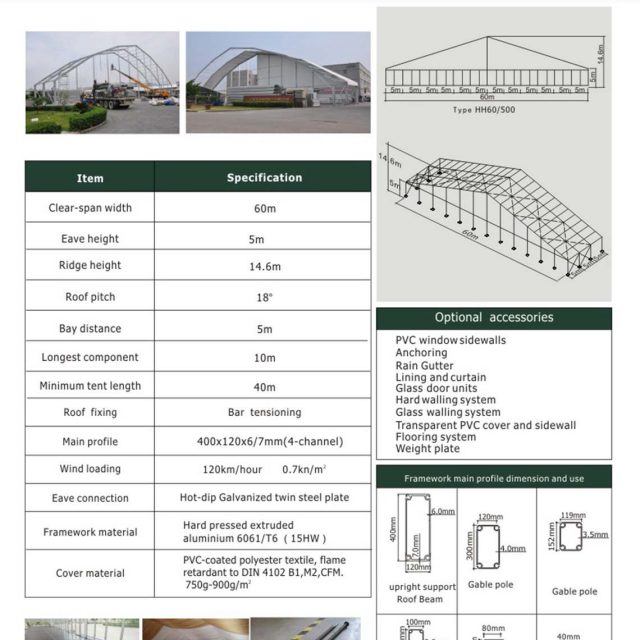

    60m5m14.6m5m400x120x6/7mm (4 - channel)
  3. 3D Drawing

    Huge Tent Hall 40m 60m
