- General Details
Mini Party Tent Series
Latest design tent product available–The mini party tent series, which is in two different roof design, one is A frame roof style ( MPT Series), while the other one is dome roof style(DMPT series), both series tent products are made up of aluminum profile 71x36x2.5mm, clear span available 3m,4m,5m,6m and 8m, the side height is 2.6m and each modular bay section is 3m;
It is improved design on this mini party tent series, different from the old PT series, it is under tension bar design instead of elastic rope to fix the eaves on the aluminum structure, it looks much more professional and definitely much stronger than the old design PT series.

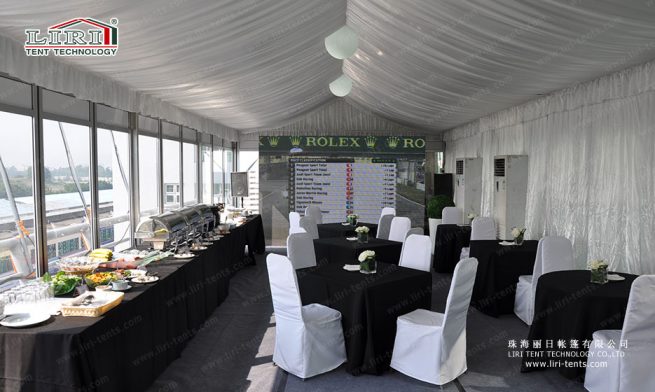

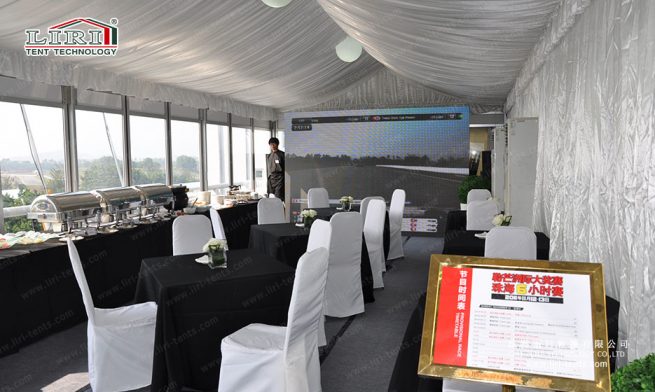

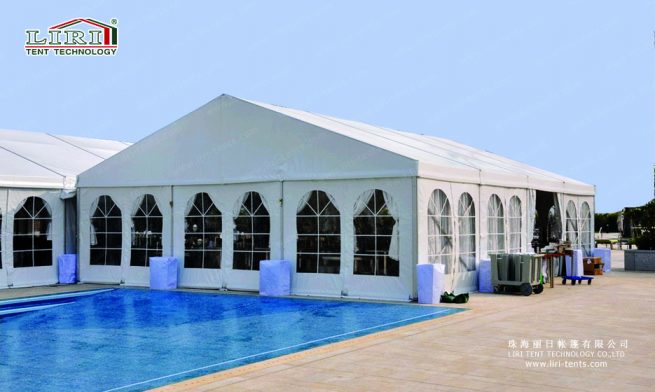

Also Various kinds of optional accessories available in mini party tent: cassette flooring system, transparent roof cover and sidewalls, tempered glass wall system, internal roof lining and curtain, weight plate, ground anchors and so on.

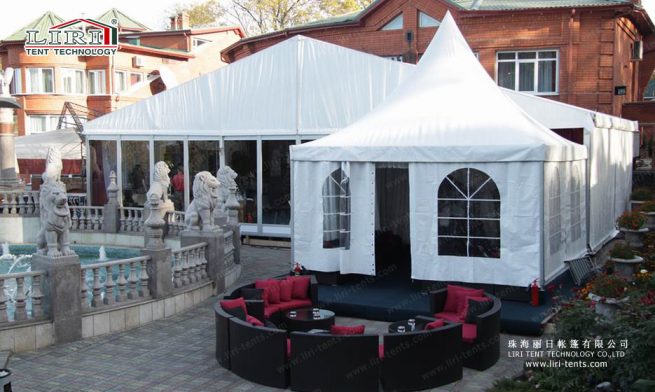

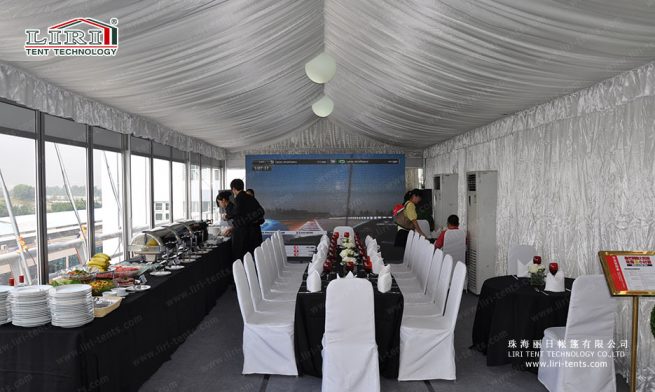

This kind of small aluminum mini party tent is easy to set up and dismantle; very popular used for outdoor product show, private gatherings & parties;
This product has obtained a national patent, patent number: ZL201120397654.4
- Product Specification

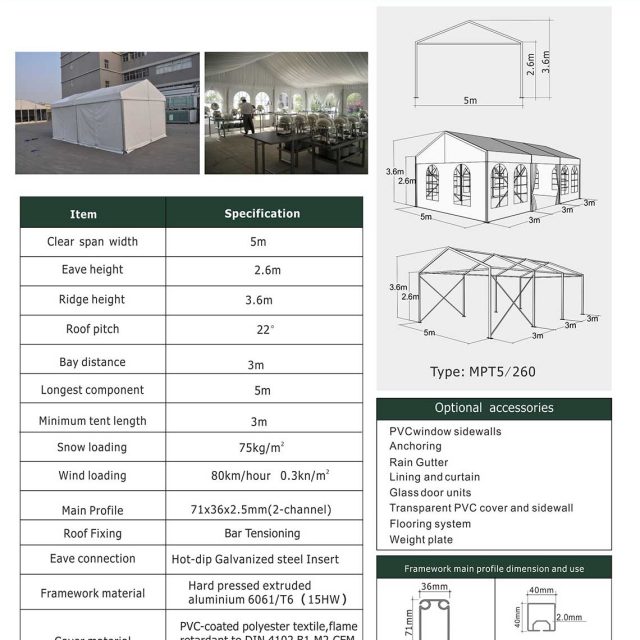

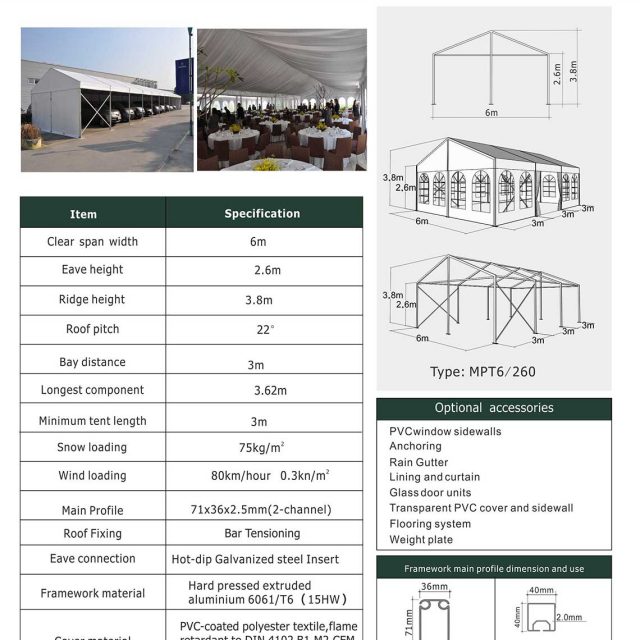

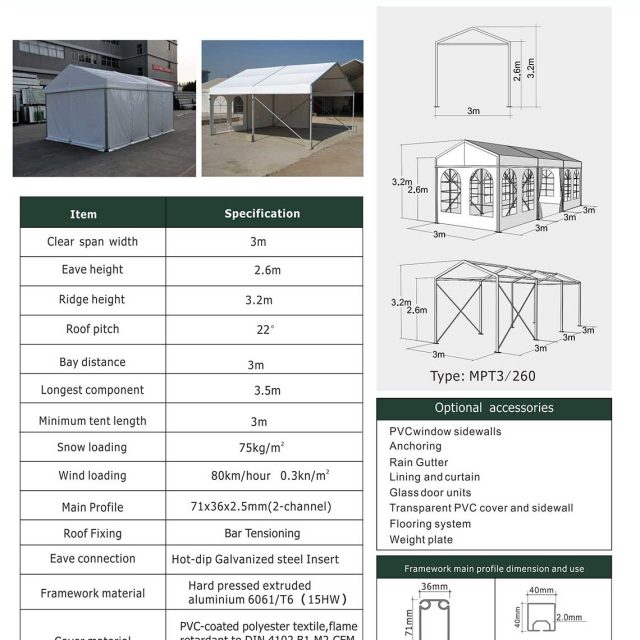

Span Whidth Eave Height Ridge Height Bay Distance Main Profile 3m 2.6m 3.2m
71x36x2.5mm (2 - channel) 4m 2.6m 3.4m

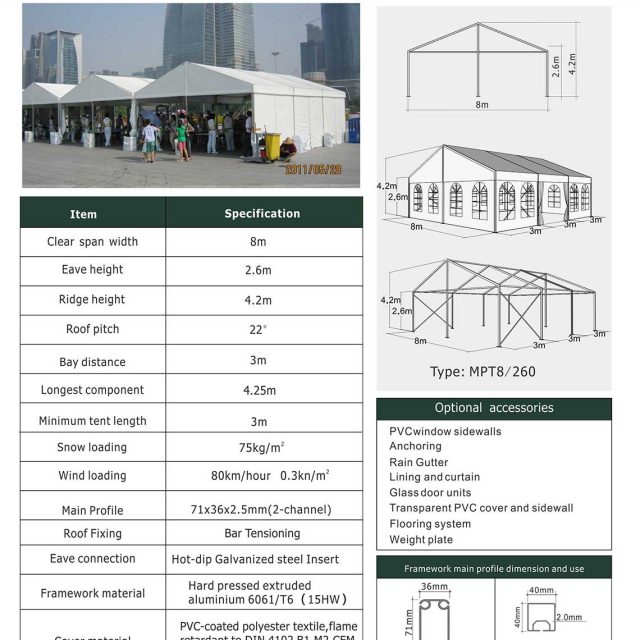

3m 71x36x2.5mm (2 - channel) 5m 2.6m 3.6m 3m 71x36x2.5mm (2 - channel) 6m 2.6m 3.8m 3m 71x36x2.5mm (2 - channel) 8m 2.6m
4.2m 3m 71x36x2.5mm (2 - channel)
